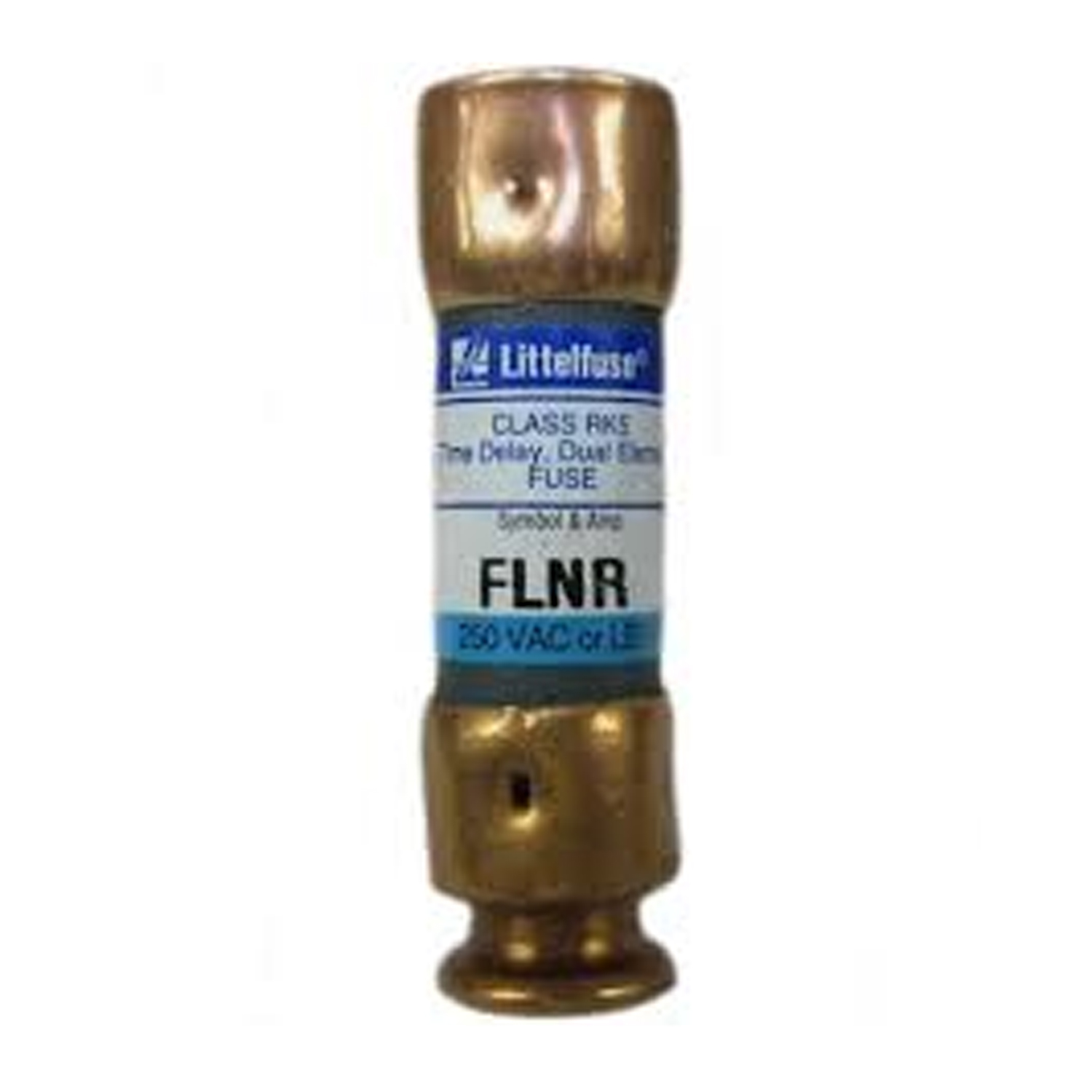

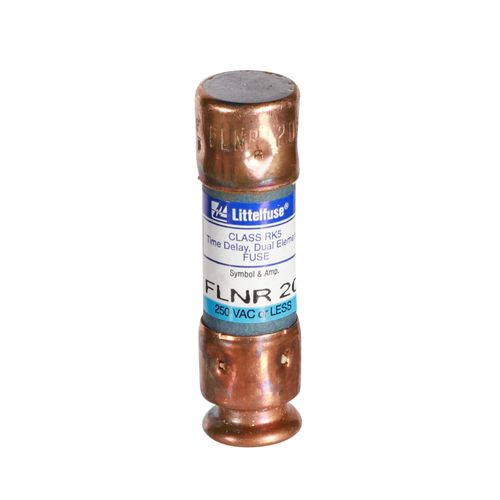

DiversiTech FLNR Series FLNR020T Class RK5 Fuse, 20 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR020T Class RK5 Fuse, 20 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387061
MPN: FLNR020T
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 20 A |
| Body Material | : | Fiberglass |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 9/16 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 2 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLNR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 250 VAC, 125 VDC |
Littelfuse FLNR020T, 20 Amp, 250V TD series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection.
DiversiTech Class RK5 Fuse, Model: FLNR Series, 20 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, Fiberglass, RK5, 9/16" Diameter, 2" Length, 50 Hz, 60 Hz
- Dual-element design provides advanced short circuit and overload protection.
- Time-delay characteristic handles motor start-ups and transformer inrush currents without nuisance tripping.
- Current-limiting operation protects downstream components from high fault currents.
- Fiberglass body ensures dimensional stability in harsh industrial settings.
- High interrupting rating (200 kA AC / 20 kA DC) safely handles large overcurrents.
- Rejection-style design prevents replacement errors when used with recommended fuse blocks.
- UL Listed and CSA Certified.
- Sold as a pack of 10 fuses.
