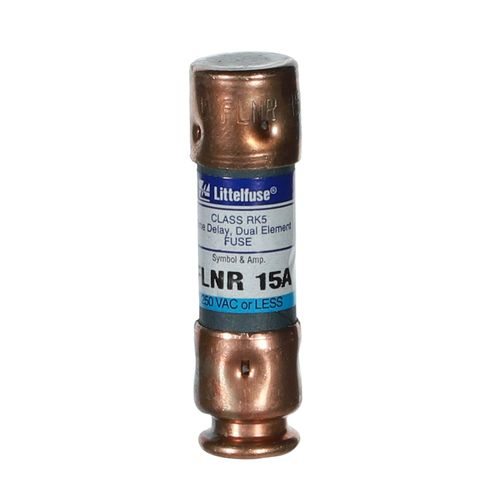

DiversiTech FLNR Series FLNR015T Class RK5 Fuse, 15 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR015T Class RK5 Fuse, 15 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
| Amperage Rating | : | 15 A |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 9/16 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 2 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Product Type | : | CIRCUIT PROTECTION |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLNR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 250 VAC, 125 VDC |
Available in both Indicating and Non-Indicating versions, the FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors.
DiversiTech Class RK5 Fuse, Model: FLNR Series, 15 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 9/16" Diameter, 2" Length, 50 Hz, 60 Hz
- Provides time-delay functionality suitable for motor start-ups and transformer inrush currents.
- Features a dual-element design for advanced short-circuit and overload protection.
- Offers current-limiting protection to minimize damage from fault currents.
- High interrupt rating of 200 kA AC and 20 kA DC for safety in high-fault current circuits.
- Class RK5 rejection feature prevents installation of lower-rated fuses.
- UL Listed and CSA Certified for safety and compliance.
