DiversiTech Hef-T-Foot FF-400-S-KIT Mini Split Rubber Base Kit, 880 lbs (Per Pair) Load Capacity, 15-3/4" Overall Width, 7-7/25" Overall Depth, 3-47/50" Overall Height, Recycled Rubber (Base), Galvanized Steel (Strut), Zinc-Plated Steel (Inserts), M10 Bolt/Screw Fastener Type, 0.394" x 0.787" (Inserts) Fastener Size
DiversiTech Hef-T-Foot FF-400-S-KIT Mini Split Rubber Base Kit, 880 lbs (Per Pair) Load Capacity, 15-3/4" Overall Width, 7-7/25" Overall Depth, 3-47/50" Overall Height, Recycled Rubber (Base), Galvanized Steel (Strut), Zinc-Plated Steel (Inserts), M10 Bolt/Screw Fastener Type, 0.394" x 0.787" (Inserts) Fastener Size
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387055
MPN: FF-400-S-KIT
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Color | : | Black |
| Fastener Size | : | 0.394" x 0.787" (Inserts) |
| Fastener Type | : | M10 Bolt/Screw |
| Finish | : | Compression Molded (Rubber Base), Galvanized (Steel Strut) |
| Load Capacity | : | 880 lbs (Per Pair) |
| Material | : | Recycled Rubber (Base), Galvanized Steel (Strut), Zinc-Plated Steel (Inserts) |
| Overall Depth | : | 7-7/25 " |
| Overall Height | : | 3-47/50 " |
| Overall Width | : | 15-3/4 " |
| Series | : | Hef-T-Foot |
| Suitable For Use With | : | Mini-Split Outdoor Units; A/C Condensing Units; Air Source Heat Pumps; Small Pipework; Runs of Cable Tray; Variety of Outdoor Equipment |

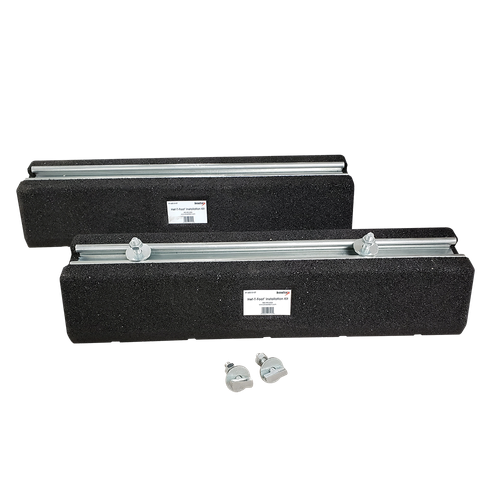

The Hef-T-Footâ„¢ FF-400-S-KIT is a mini split installation kit that includes a pair of 15.7 in. rubber bases with strut inserts that are used to mount A/C condensing units, air source heat pumps and a variety of outdoor equipment. All necessary hardware to attach equipment to the Hef-T-Foot is included with the kit. The FF-400-S-KIT foot base dimensions are 15.75 in. L x 7.28 in. W x 3.94 in. H. The galvanized strut insert dimensions are 15.75 in. L x 1.6 in W. x .83 in. H.
DiversiTech Mini Split Rubber Base Kit, Model: Hef-T-Foot, 880 lbs (Per Pair) Load Capacity, 15-3/4" Overall Width, 7-7/25" Overall Depth, 3-47/50" Overall Height, Recycled Rubber (Base), Galvanized Steel (Strut), Zinc-Plated Steel (Inserts), M10 Bolt/Screw Fastener Type, 0.394" x 0.787" (Inserts) Fastener Size, Compression Molded (Rubber Base), Galvanized (Steel Strut), Black
- Includes two 15.75" Hef-T-Footâ„¢ base supports and necessary mounting hardware.
- Heavy-duty compression-molded recycled rubber base provides solid support and absorbs vibration.
- Features drain slots molded into the underside to allow water drainage.
- Comes with a 1.6" x 0.8" galvanized steel strut adhered to the rubber base for secure mounting.
- Supports a maximum load of 880 lbs per pair.
- Suitable for mounting mini-split outdoor units, AC condensers, heat pumps, and other outdoor equipment.
- Covered by a DiversiTech Limited Lifetime Warranty.
