Sanhua STG Series FDBI-163-S Bi-Flow Filter Drier, 5.69 Tons (R-22 / R-410A), 5.6 Tons (R-134a / R-407C), 3.9 Tons (R-404A / R-507A) Flow Capacity, 3/8" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, R-407A/F, R-290, R-1234ZE, R-1234YF, R-32, R-448A/R449A, R-452A, R-450A/R513A, 20 Microns Micron Rating, 714.7 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend), 16 Cu. In.
Sanhua STG Series FDBI-163-S Bi-Flow Filter Drier, 5.69 Tons (R-22 / R-410A), 5.6 Tons (R-134a / R-407C), 3.9 Tons (R-404A / R-507A) Flow Capacity, 3/8" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, R-407A/F, R-290, R-1234ZE, R-1234YF, R-32, R-448A/R449A, R-452A, R-450A/R513A, 20 Microns Micron Rating, 714.7 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend), 16 Cu. In.
| Connection Type | : | 3/8" ODF |
| Dimensions | : | 3.19" Diam x 6.14" L |
| Domestic/Import | : | Import |
| Finish | : | Corrosion Resistant Paint |
| Flow Capacity | : | 5.69 tons (R-22 / R-410A), 5.6 tons (R-134a / R-407C), 3.9 tons (R-404A / R-507A) |
| Material | : | 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend) |
| Micron Rating | : | 20 microns |
| Model | : | FDBI-163-S |
| Mounting Type | : | In-Line |
| Pressure Rating | : | 714.7 PSI |
| Refrigerant Type | : | R-22, R-134A, R-404A, R-407C, R-410A, R-507, R-407A/F, R-290, R-1234ZE, R-1234YF, R-32, R-448A/R449A, R-452A, R-450A/R513A |
| Series | : | STG Series |
| Size | : | 3/8 " |
| Suitable For Use With | : | Heat Pump Systems |
| Temperature Rating | : | -22-248 °F (Medium), -22-130 °F (Ambient) |
| Volume | : | 16 cu. in. |

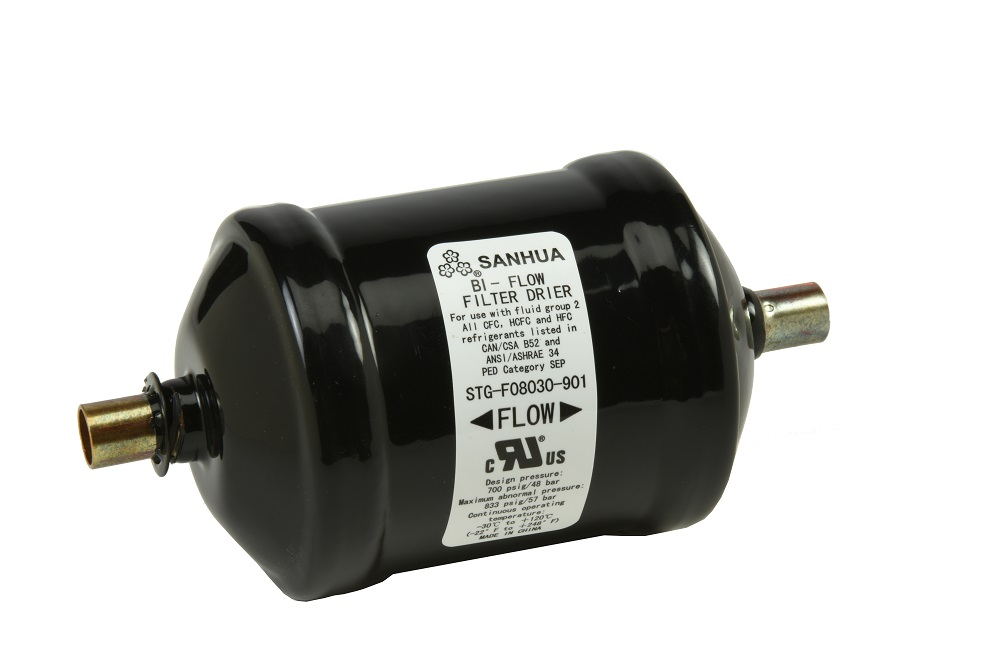

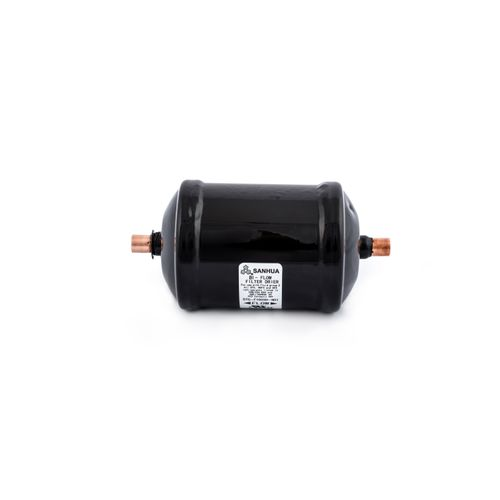

The Sanhua STG series bidirectional filter-drier is specifically designed for use in heat pump systems and other refrigeration systems with two-way flow. It protects these systems by absorbing moisture and acid, and filtering out solid impurities and contaminants down to 20 microns.Featuring a durable, corrosion-resistant painted steel body and 3/8-inch ODF solder connections, this drier utilizes a solid core desiccant blend for reliable performance across a wide range of common refrigerants.
Sanhua Bi-Flow Filter Drier, Model: STG Series, 5.69 Tons (R-22 / R-410A), 5.6 Tons (R-134a / R-407C), 3.9 Tons (R-404A / R-507A) Flow Capacity, 3/8" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, R-407A/F, R-290, R-1234ZE, R-1234YF, R-32, R-448A/R449A, R-452A, R-450A/R513A, 20 Microns Micron Rating, 714.7 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend), 16 Cu. In., -22-248 °F (Medium), -22-130 °F (Ambient), In-Line Mounting Type, 3.19" Diam x 6.14" L Dimensions, Corrosion Resistant Paint, Import
- Designed for bi-directional flow, ideal for heat pump systems.
- Effectively absorbs moisture and removes acid to protect system components.
- Filters contaminants and solid particles down to 20 microns.
- Compatible with common HCFC, HFC, HC, and HFO refrigerants including R-22, R-134a, R-410A, and R-290.
- Durable steel body with corrosion-resistant paint finish withstands demanding conditions.
- UL and CSA listed for safety and compliance.
