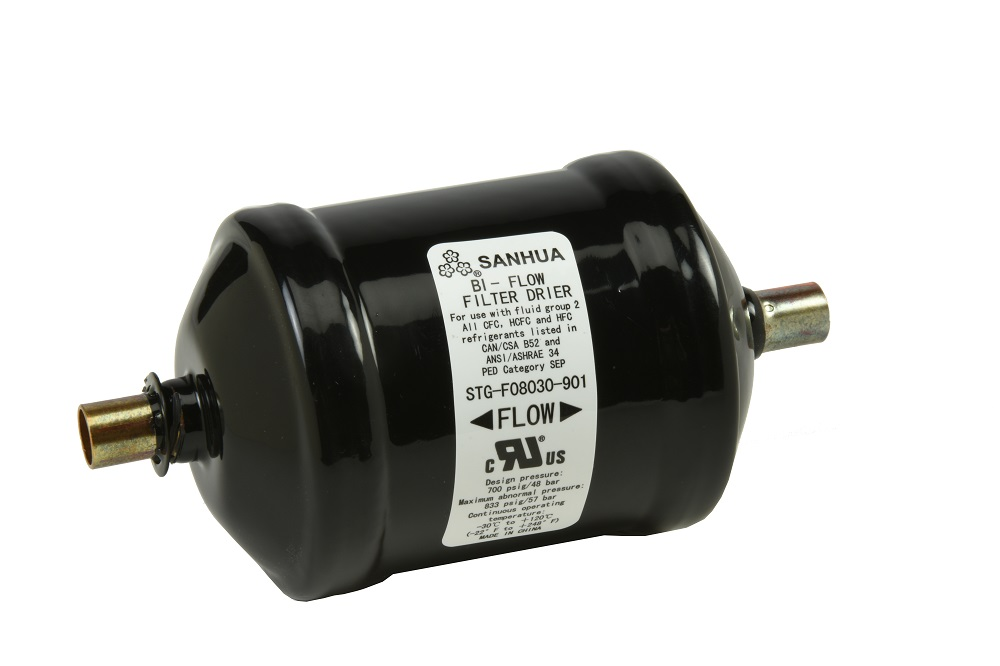

DiversiTech STG Series FDBI-084-S Bi-Flow Filter Drier, 1/2" Size, 7.51 Tons (R-22), 7.31 Tons (R-134a), 7.39 Tons (R-407C), 7.51 Tons (R-410A), 5.09 Tons (R-404A / R-507) Flow Capacity, 1/2" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, 20 Microns Micron Rating, 714.7 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend)
DiversiTech STG Series FDBI-084-S Bi-Flow Filter Drier, 1/2" Size, 7.51 Tons (R-22), 7.31 Tons (R-134a), 7.39 Tons (R-407C), 7.51 Tons (R-410A), 5.09 Tons (R-404A / R-507) Flow Capacity, 1/2" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, 20 Microns Micron Rating, 714.7 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend)
| Connection Type | : | 1/2" ODF |
| Domestic/Import | : | Import |
| Finish | : | Corrosion Resistant Paint |
| Flow Capacity | : | 7.51 tons (R-22), 7.31 tons (R-134a), 7.39 tons (R-407C), 7.51 tons (R-410A), 5.09 tons (R-404A / R-507) |
| Material | : | 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend) |
| Micron Rating | : | 20 microns |
| Model | : | FDBI-084-S |
| Mounting Type | : | In-Line |
| Pressure Rating | : | 714.7 PSI |
| Refrigerant Type | : | R-22, R-134A, R-404A, R-407C, R-410A, R-507 |
| Series | : | STG Series |
| Size | : | 1/2 " |
| Suitable For Use With | : | Heat Pump Systems, Refrigeration Systems (with Two-Way Flow) |
| Temperature Rating | : | -22-248 °F (Medium) |
Sanhua's Filter-Drier molded cores are engineered with a blend of desiccants to protect systems against moisture and acid. The core is secured in place with fiberglass pads on both ends and a 100 mesh metal support screen at the outlet. The pads and core together provide a large available filtering area to remove solid particle contamination to an extremely low level of 20 microns. Sanhua Filter-Driers are compatible with all common HCFC and HFC refrigerants and are UL Listed to a maximum operating pressure of 700 psig.
DiversiTech Bi-Flow Filter Drier, Model: STG Series, 1/2" Size, 7.51 Tons (R-22), 7.31 Tons (R-134a), 7.39 Tons (R-407C), 7.51 Tons (R-410A), 5.09 Tons (R-404A / R-507) Flow Capacity, 1/2" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, 20 Microns Micron Rating, 714.7 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend), -22-248 °F (Medium), In-Line Mounting Type, Corrosion Resistant Paint, Import
- Designed for bi-directional flow, ideal for heat pump and reversing refrigeration systems.
- Features a molded core with an 80% molecular sieve and 20% activated alumina blend for effective drying and acid removal.
- Filters solid particle contaminants down to 20 microns.
- Compatible with a wide range of refrigerants: R-22, R-134a, R-404A, R-407C, R-410A, R-507.
- Rated for a maximum operating pressure of 700 PSIG.
- Provides excellent corrosion resistance, tested to 500 hours in salt spray.
- UL and CSA certified for reliable performance.
