DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI
DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI
| Color | : | Blue |
| Connection Type | : | ODF |
| Domestic/Import | : | Import |
| Finish | : | Painted |
| Flow Capacity | : | 7.39 tons (R-22), 7.31 tons (R-134a), 7.51 tons (R-410A), 7.39 tons (R-407C), 5.09 tons (R-404A / R-507) |
| Material | : | Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend) |
| Micron Rating | : | 20 microns |
| Model | : | FD-163-S |
| Pressure Rating | : | 714.7 PSI |
| Refrigerant Type | : | All Common Refrigerants (CFC, HCFC, HFC, HFO) |
| Series | : | DTG Series |
| Size | : | 3/8 " |
| Suitable For Use With | : | All Common HCFC and HFC Refrigerants |
| Temperature Rating | : | -22-131 °F (Ambient), -22-248 °F (Medium Ts) |
| Volume | : | 16 cu. in. |

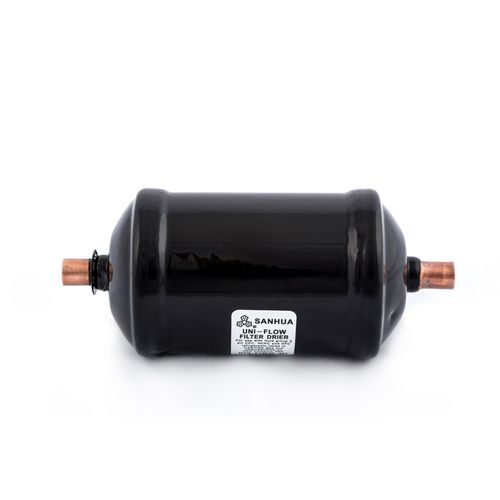

The Sanhua FD-163-S Filter-Drier has a molded core engineered with a blend of desiccants to protect systems against moisture and acid. The core is secured in place with fiberglass pads on both ends and a 100 mesh metal support screen at the outlet.
DiversiTech Filter Drier, Model: DTG Series, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI, -22-131 °F (Ambient), -22-248 °F (Medium Ts), Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend), Blue, Painted, Import
- Filters impurities and solid particles down to 20 microns.
- Molded core with 80/20 molecular sieve/activated alumina blend adsorbs moisture and acid.
- Compatible with common CFC, HCFC, HFC, and HFO refrigerants.
- Durable powder-coated exterior offers 500-hour salt spray corrosion resistance.
- Rated for a maximum operating pressure of 714.7 PSI.
- UL/CSA certified for safety and compliance.
