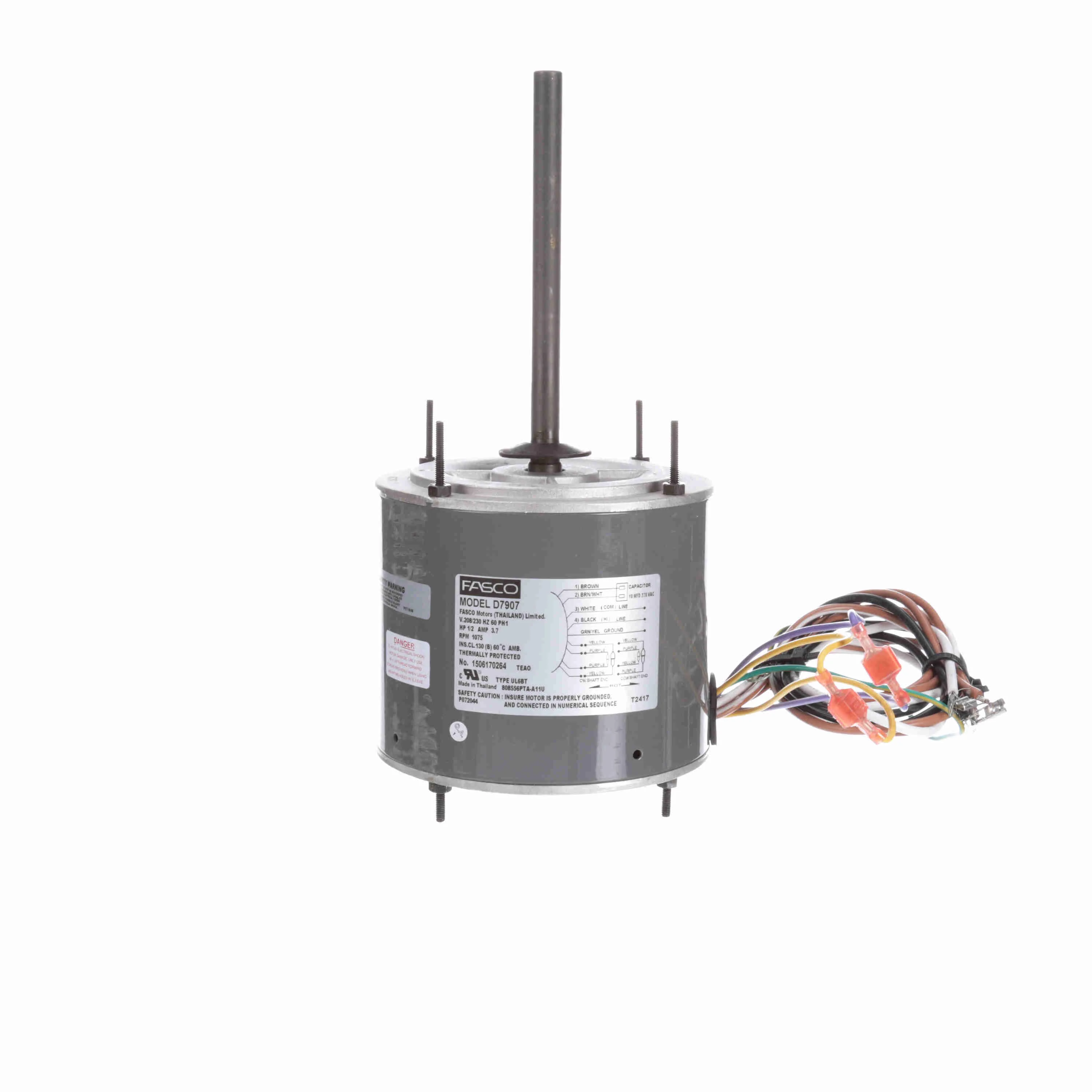

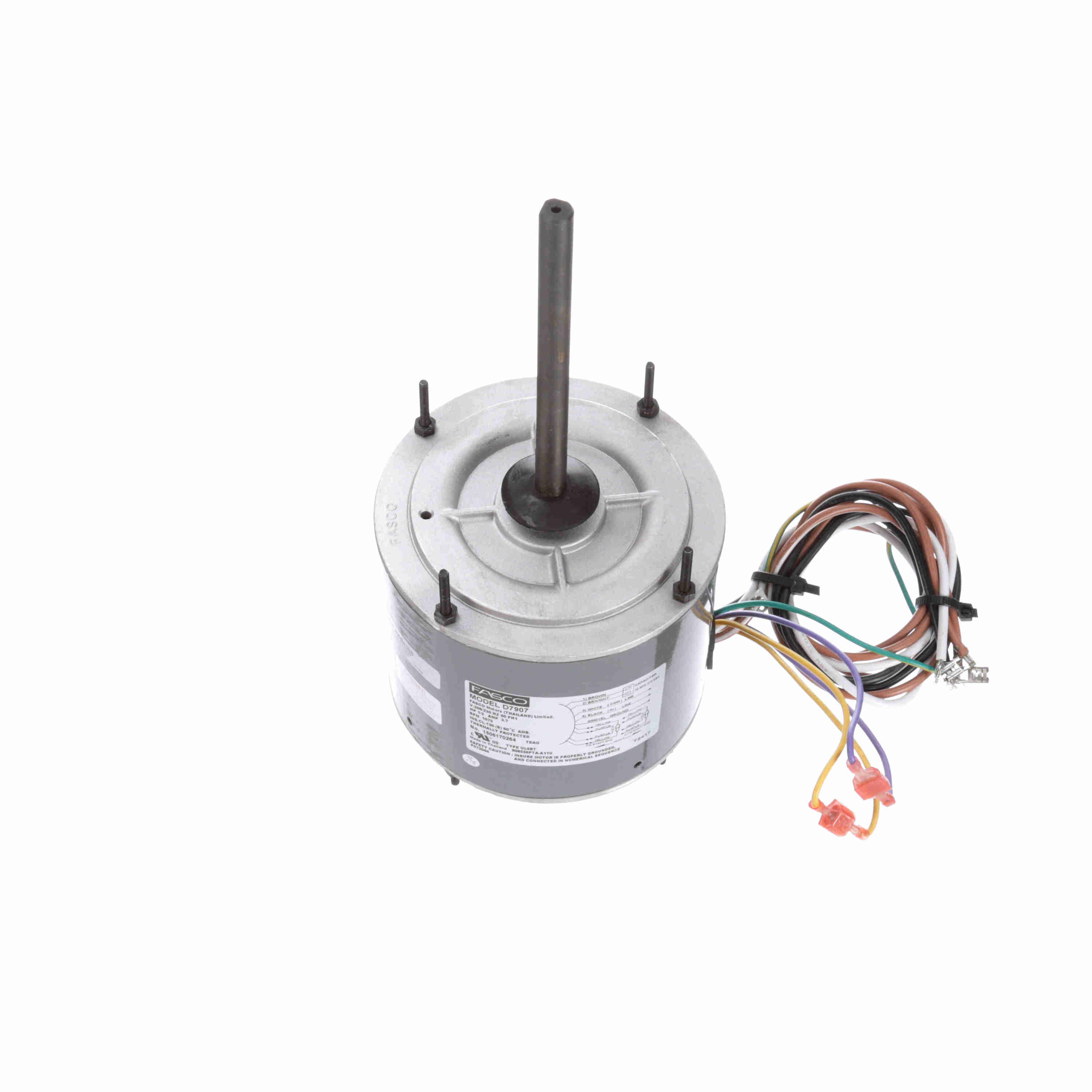

DiversiTech D7907 Condenser Fan Motor, 1/2 HP, 208/230 V, 1,075 RPM, 1 Speed, 1 Phase, Multi-Position, Belly Band Mount, Stud Mount, Rheem Mount, TEAO
DiversiTech D7907 Condenser Fan Motor, 1/2 HP, 208/230 V, 1,075 RPM, 1 Speed, 1 Phase, Multi-Position, Belly Band Mount, Stud Mount, Rheem Mount, TEAO
| Amperage Rating | : | 3.7 A |
| Bearing Type | : | Sleeve Bearing |
| Color | : | Grey |
| Dimensions | : | 5-3/5" Diam x 4-23/25" L (Frame) |
| Duty Type | : | Continuous |
| Efficiency | : | 65 % |
| Frame Length | : | 4-23/25 " |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 HP |
| Insulation Class | : | Class B |
| MFD Rating | : | 10 MFD (370 V) |
| Material | : | Rolled Steel (Frame) |
| Model | : | D7907 |
| Motor Enclosure Type | : | TEAO |
| Mounting Type | : | Multi-Position, Belly Band Mount, Stud Mount, Rheem Mount |
| Number of Poles | : | 6 |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 370 W |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Design | : | Double Flat |
| Shaft Size | : | 1/2" Diam x 6-1/2" L |
| Speed Rating | : | 1,075 RPM |
| Suitable For Use With | : | AC Condenser Fan Motors; Rheem Units (Via Mounting Holes) |
| Temperature Rating | : | 140 °F (Ambient) |
| Voltage Rating | : | 208/230 V |
This is a single-speed condenser fan motor rated at 1/2 HP and 1075 RPM. It operates on 208-230V single-phase power and draws up to 3.7 amps.Designed with a Totally Enclosed Non-Ventilated (TENV) enclosure and sleeve bearings, this motor offers electrical reversibility for versatile installation. It features multiple mounting options, including studs, belly band, and specific provisions for Rheem units.
DiversiTech Condenser Fan Motor, 1/2 HP, 208/230 V, 1,075 RPM, 1 Speed, 1 Phase, Multi-Position, Belly Band Mount, Stud Mount, Rheem Mount, TEAO, Sleeve Bearing, Reversible, 1/2" Diam x 6-1/2" L Shaft Size, Double Flat Shaft Design, 48 Frame Size, 4-23/25" Frame Length, 1 Service Factor, 0.65 Efficiency, Continuous, 140 °F (Ambient), Class B, 6 Poles, 10 MFD (370 V), 3.7 A, 60 Hz, 370 W, Rolled Steel (Frame), Grey
- Delivers 1/2 HP at 1075 RPM using 208-230V single-phase power.
- Features a Totally Enclosed Non-Ventilated (TENV) enclosure for durability.
- Electrically reversible rotation allows for flexible application.
- Supports multiple mounting options including belly band, studs, and Rheem-specific holes.
- Includes a 1/2" diameter by 6" long shaft.
- Thermally protected for enhanced safety and motor lifespan.
- Utilizes sleeve bearings for reliable operation.
