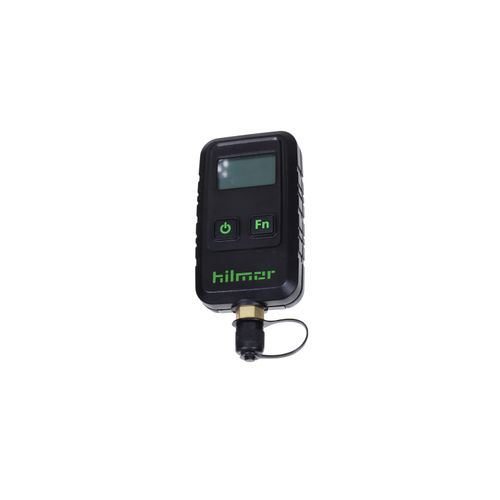

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD
DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 386399
MPN: CVG1200
Customer Part #:
Min. Order Qty: 1
Login for Availability
Accuracy      :      ± (5% + 10 microns) (1-1,000 microns, at 25°C), ± 20% (1,000-5,000 microns, at 25°C)
Battery Life      :      50 hrs (Without Backlight)
Battery Type      :      AAA
Display Type      :      LCD
Resolution      :      1 micron (1-2,000 Microns), 100 microns (2,000-20,000 Microns), 1,000 microns (20,000-100,000 Microns), 10,000 microns (100,000-300,000 Microns)

The hilmor Compact Vacuum Gauge is an all-in-one micron gauge that is durably constructed for everyday use and abuse. An easy to read backlit display provides readings and the two button operation simplifies field use.

DiversiTech Compact Vacuum Gauge, Model: Hilmor, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD, 50 Hrs (Without Backlight) Battery Life, AAA Battery, Battery, 4-4/5" L x 1-1/5" H x 2-1/5" W Dimensions, 10-122 °F, Black

  • Backlit LCD display ensures readability in low-light conditions.
  • Measures a wide vacuum range from 1 to 300,000 microns.
  • Features a programmable audible micron alarm with high and low settings.
  • Built to withstand momentary overpressure up to 800 PSI.
  • Includes a protective carrying case for convenient storage and transport.
  • Compatible with A2L refrigerants.
  • Specification Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hilmor-compact-vacuum-gauge-cvg1200-specification-sheet-4202-4865.pdf
  • Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hvac-r-product-catalog-4202-3550.pdf
