DiversiTech Condensate Cop CC-1 Clamp-On Float Switch, Clamp-On, Pan Mount, UL Listed, ETL Listed, Class 2, PVC (Switch Housing), Metal/Plastic/Copper (Contacts), 2-1/4" H x 3-1/2" W x 6-1/2" D Dimensions, Import, Red
DiversiTech Condensate Cop CC-1 Clamp-On Float Switch, Clamp-On, Pan Mount, UL Listed, ETL Listed, Class 2, PVC (Switch Housing), Metal/Plastic/Copper (Contacts), 2-1/4" H x 3-1/2" W x 6-1/2" D Dimensions, Import, Red
| Color | : | Red |
| Dimensions | : | 2-1/4" H x 3-1/2" W x 6-1/2" D |
| Domestic/Import | : | Import |
| Finish | : | Galvanized |
| Material | : | PVC (Switch Housing), Metal/Plastic/Copper (Contacts) |
| Model | : | CC-1 |
| Mounting Type | : | Clamp-On, Pan Mount |
| Product Type | : | CONDENSATE HANDLING |
| Series | : | Condensate Cop |
| Specifications | : | UL Listed, ETL Listed, Class 2 |
| Suitable For Use With | : | HVAC Drain Pans (Plastic or Metal), Secondary Pan, 24 VAC Control Circuits |

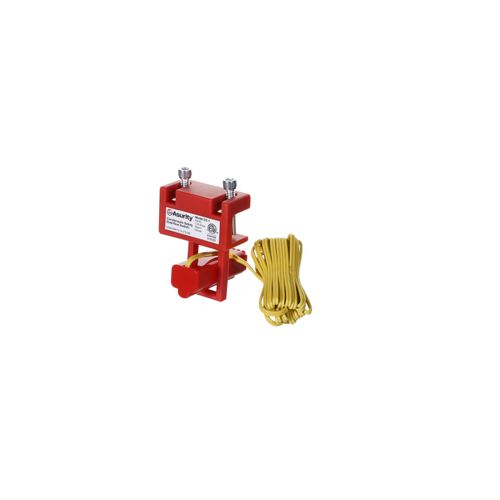

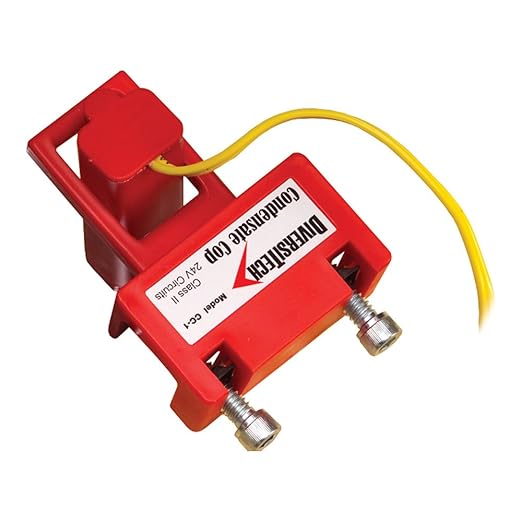

The CC-1 Safety Overflow Pan Switch is a unique clamp-on float switch intended for HVAC drain pan installation (both plastic and metal pans). Large over-clamping area fits easily over the edge of all types of drain pans; separate float/probe assembly accommodates drain pans with sloped sides. Magnetically actuated switch opens when rising water presents a potential flooding condition.
DiversiTech Clamp-On Float Switch, Model: Condensate Cop, Clamp-On, Pan Mount, UL Listed, ETL Listed, Class 2, PVC (Switch Housing), Metal/Plastic/Copper (Contacts), 2-1/4" H x 3-1/2" W x 6-1/2" D Dimensions, Import, Red
- Clamp-on design fits easily over the edge of most plastic or metal secondary drain pans.
- Swiveling sensor assembly accommodates sloped sides for flexible positioning.
- Features an adjustable activation height with a minimum of 1.5 inches.
- Magnetically actuated, normally closed (NC) reed switch opens the 24 VAC circuit (1.5 A max) when water level rises.
- Inlet grill protects the float mechanism from debris or insulation.
- Includes 5 ft wire leads, wire nuts, and clamping screws.
- UL and ETL Listed, conforming to safety standards.
