| Amperage Rating | : | 30 A |
| Coil Voltage | : | 24 VAC |
| Connection Type | : | Box Lug, Spade Terminal |
| Contact Configuration | : | 1NO |
| Contact Rating | : | 30 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Full Load Current Rating | : | 30 A |
| Height | : | 2.64 " |
| Insulation Class | : | Class B |
| Locked Rotor Rating | : | 180 A (240 V), 150 A (480 V), 120 A (600 V) |

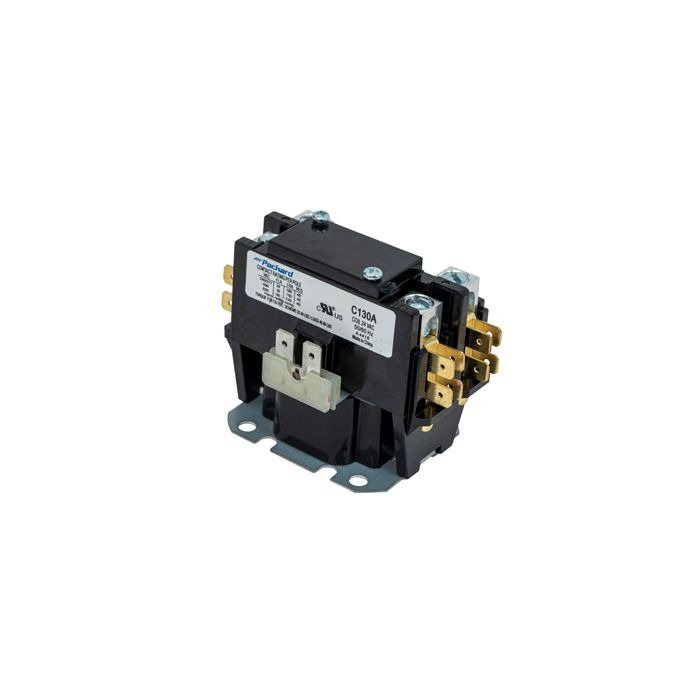

| Model | : | C130A |
| Mounting Type | : | Foot Mount |
| Number of Poles | : | 1 (With Shunt) |
| Phase | : | 1 |
| Product Type | : | CONTACTORS |
| Resistive Amperage | : | 40 A |
| Terminal Type | : | Box Lug, Spade Terminal, Quick Connect |
| Voltage Rating | : | 600 VAC |
