DiversiTech 9723 Condenser Fan Motor, 1/4 HP, 1/5 HP, 1/6 HP, 208/230 V, 1,075 RPM, 1 Speed, 1 Phase, Multi-Position, Extended Studs, TEAO
DiversiTech 9723 Condenser Fan Motor, 1/4 HP, 1/5 HP, 1/6 HP, 208/230 V, 1,075 RPM, 1 Speed, 1 Phase, Multi-Position, Extended Studs, TEAO
| Amperage Rating | : | 2.0 A |
| Bearing Type | : | Ball Bearing |
| Dimensions | : | 5" Diam (Body) x 7-1/2" L (Overall) |
| Duty Type | : | Continuous Air Over |
| Efficiency | : | 65 % |
| Frame Length | : | 4.77 " |
| Frame Size | : | 42Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 HP, 1/5 HP, 1/6 HP |
| Insulation Class | : | Class B |
| MFD Rating | : | 7.5 MFD (370 VAC) |
| Material | : | Rolled Steel (Frame) |
| Model | : | 9723 |
| Motor Enclosure Type | : | TEAO |
| Mounting Type | : | Multi-Position, Extended Studs |
| Number of Poles | : | 6 |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 190 W |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Design | : | Flat |
| Shaft Size | : | 1/2" Diam x 3" L |
| Speed Rating | : | 1,075 RPM |
| Suitable For Use With | : | MultiFit Condenser Fan Motor; Replaces: Many 1/6 - 1/4 HP OEM Motors |
| Temperature Rating | : | 140 °F (Ambient) |
| Torque Rating | : | 21.9 in-lb (1075 RPM, 25°C) |
| Voltage Rating | : | 208/230 V |

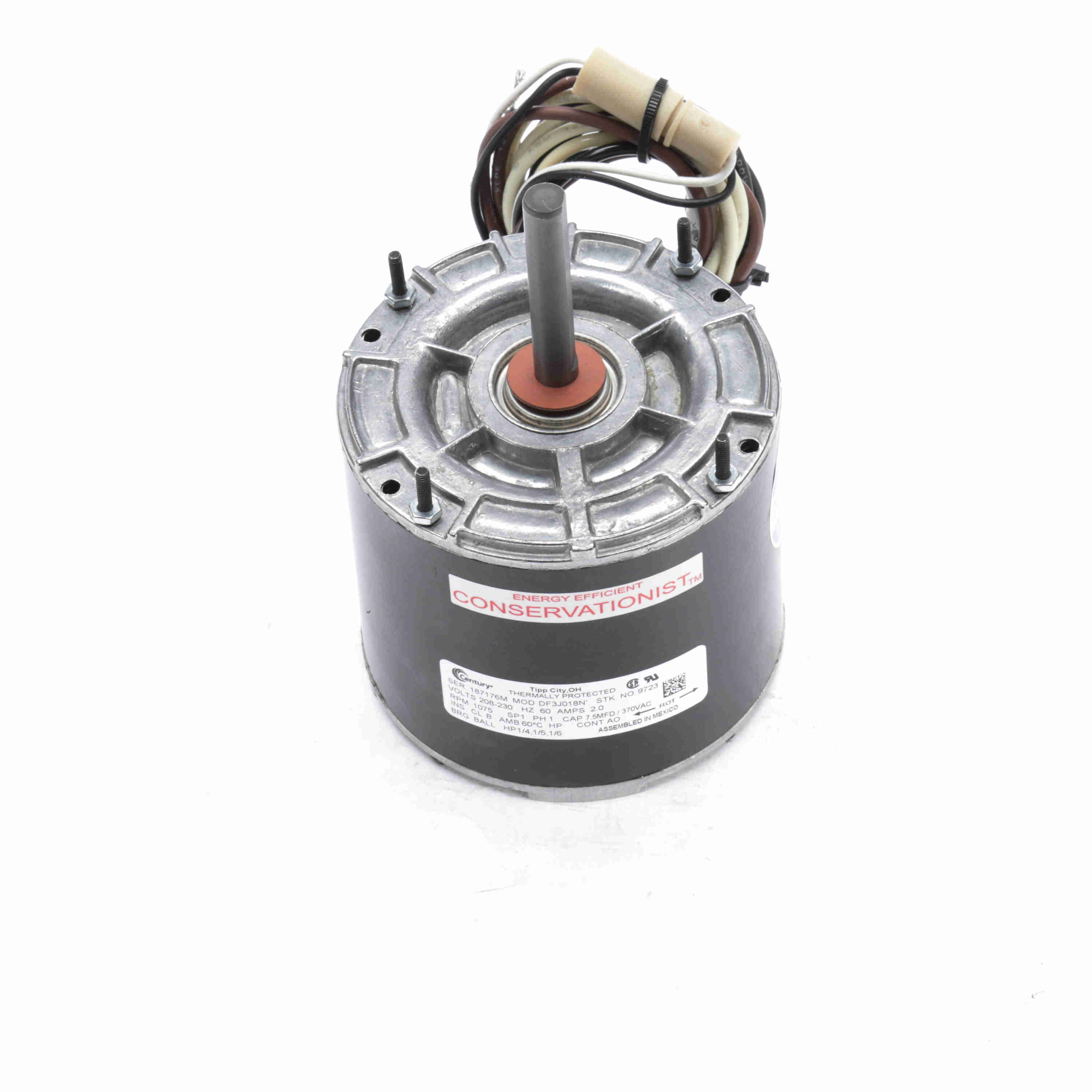

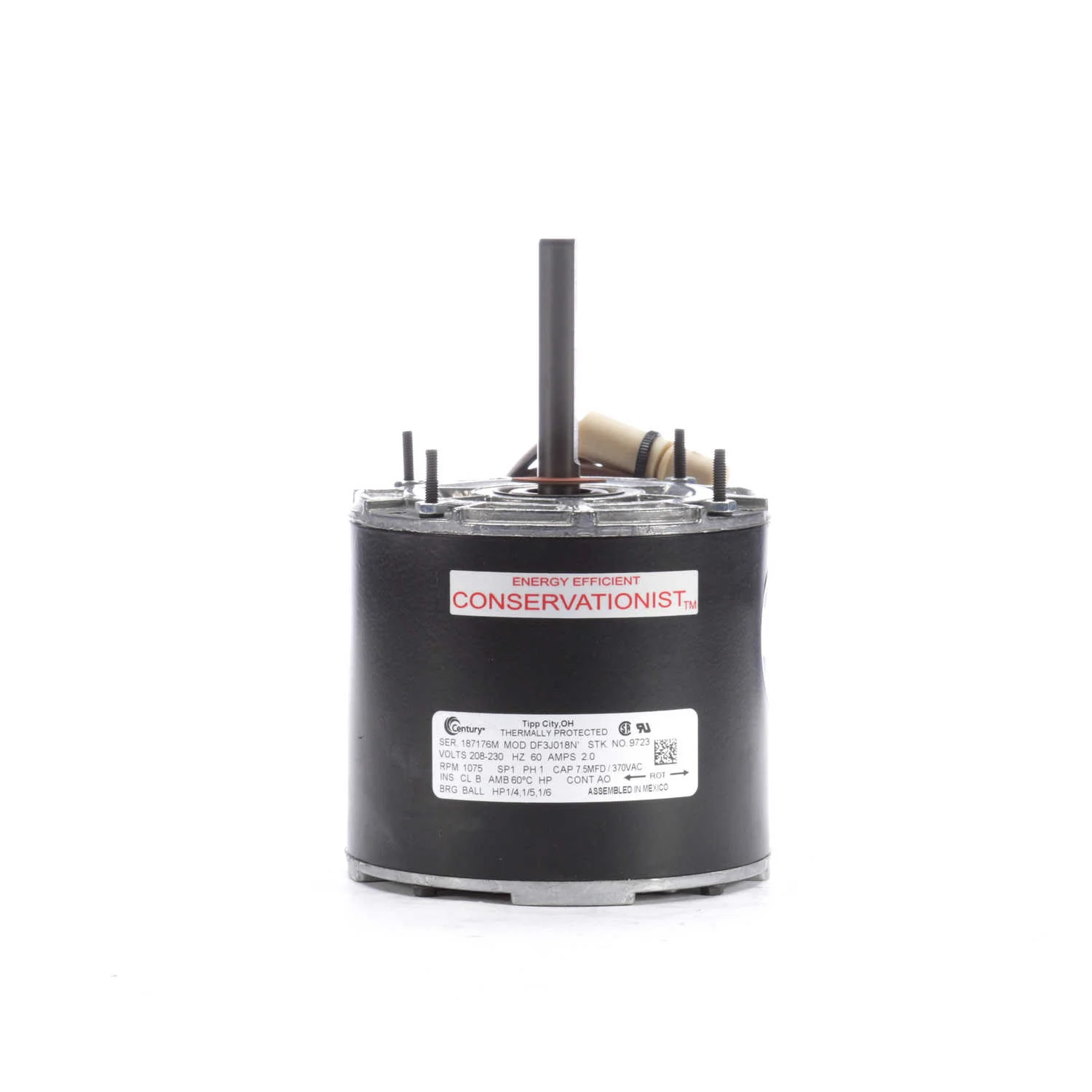

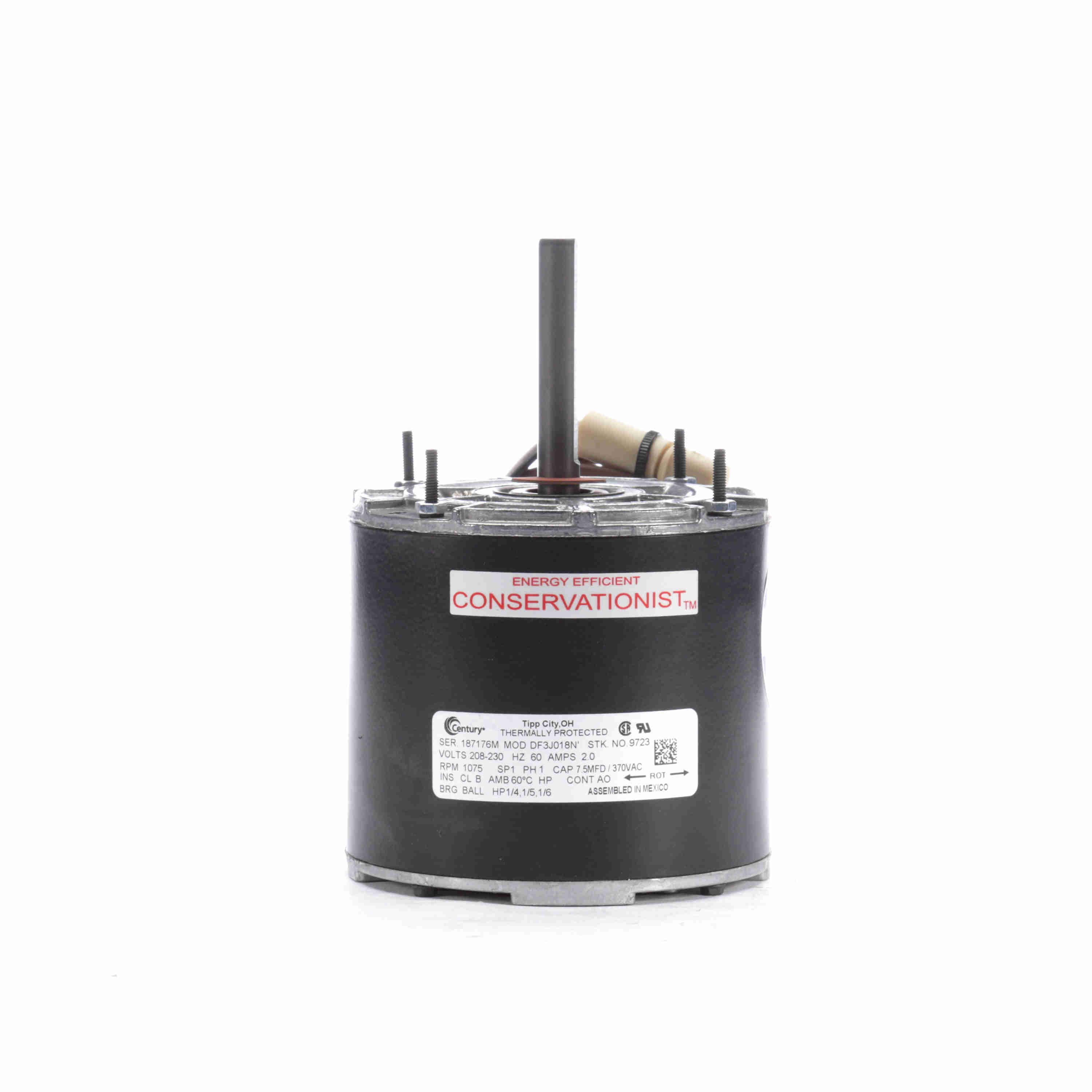

This Century MultiFit condenser fan motor offers versatile multi-horsepower capability, covering 1/4, 1/5, and 1/6 HP applications with a single unit operating at 1075 RPM and 208-230V. Its energy-efficient PSC design and simple connection system make it a convenient replacement for many 42-frame (5" diameter) motors used in residential and commercial condenser fan applications.Designed for reliability and ease of use, this motor features a totally enclosed air over (TEAO) enclosure, durable double-sealed ball bearings, and Class B insulation suitable for ambient temperatures up to 60°C. It offers reversible rotation via a water-resistant plug and includes extended studs for flexible all-angle mounting. Requires a 7.5 MFD/370V capacitor (sold separately).
DiversiTech Condenser Fan Motor, 1/4 HP, 1/5 HP, 1/6 HP, 208/230 V, 1,075 RPM, 1 Speed, 1 Phase, Multi-Position, Extended Studs, TEAO, Ball Bearing, Reversible, 1/2" Diam x 3" L Shaft Size, Flat Shaft Design, 42Y Frame Size, 4.77" Frame Length, 5" Diam (Body) x 7-1/2" L (Overall) Dimensions, 1 Service Factor, 0.65 Efficiency, Continuous Air Over, 21.9 in-lb (1075 RPM, 25°C) Torque Rating, 140 °F (Ambient), Class B, 6 Poles, 7.5 MFD (370 VAC), 2.0 A, 60 Hz, 190 W
- Multi-horsepower capability replaces 1/4, 1/5, and 1/6 HP motors, simplifying replacements.
- Energy-efficient PSC motor operates at 1075 RPM on 208-230V single-phase power.
- Totally enclosed air over (TEAO) design with Class B insulation for durability.
- Reversible rotation controlled by a water-resistant plug for easy setup.
- Double-sealed ball bearings ensure dependable, long-lasting operation.
- Suitable for high-temperature applications up to 60°C ambient.

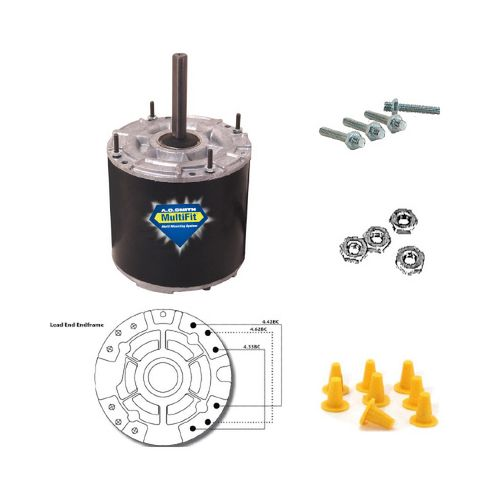

- Features extended studs for flexible all-angle mounting.
- UL and CSA recognized.
