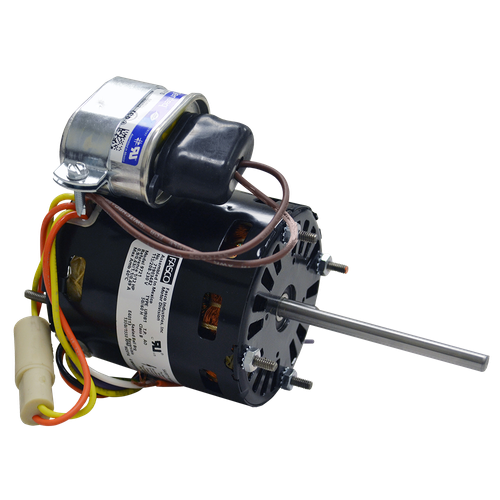

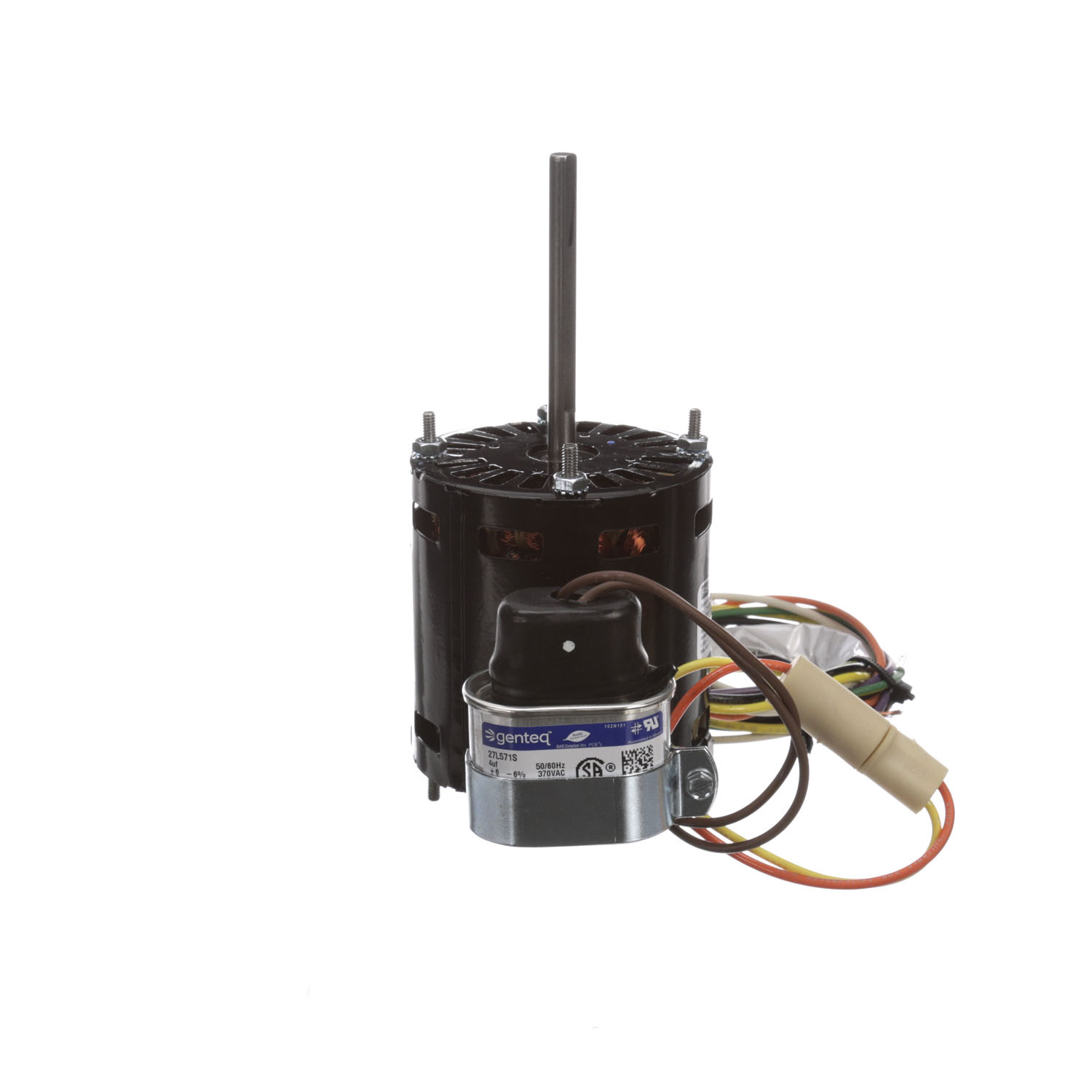

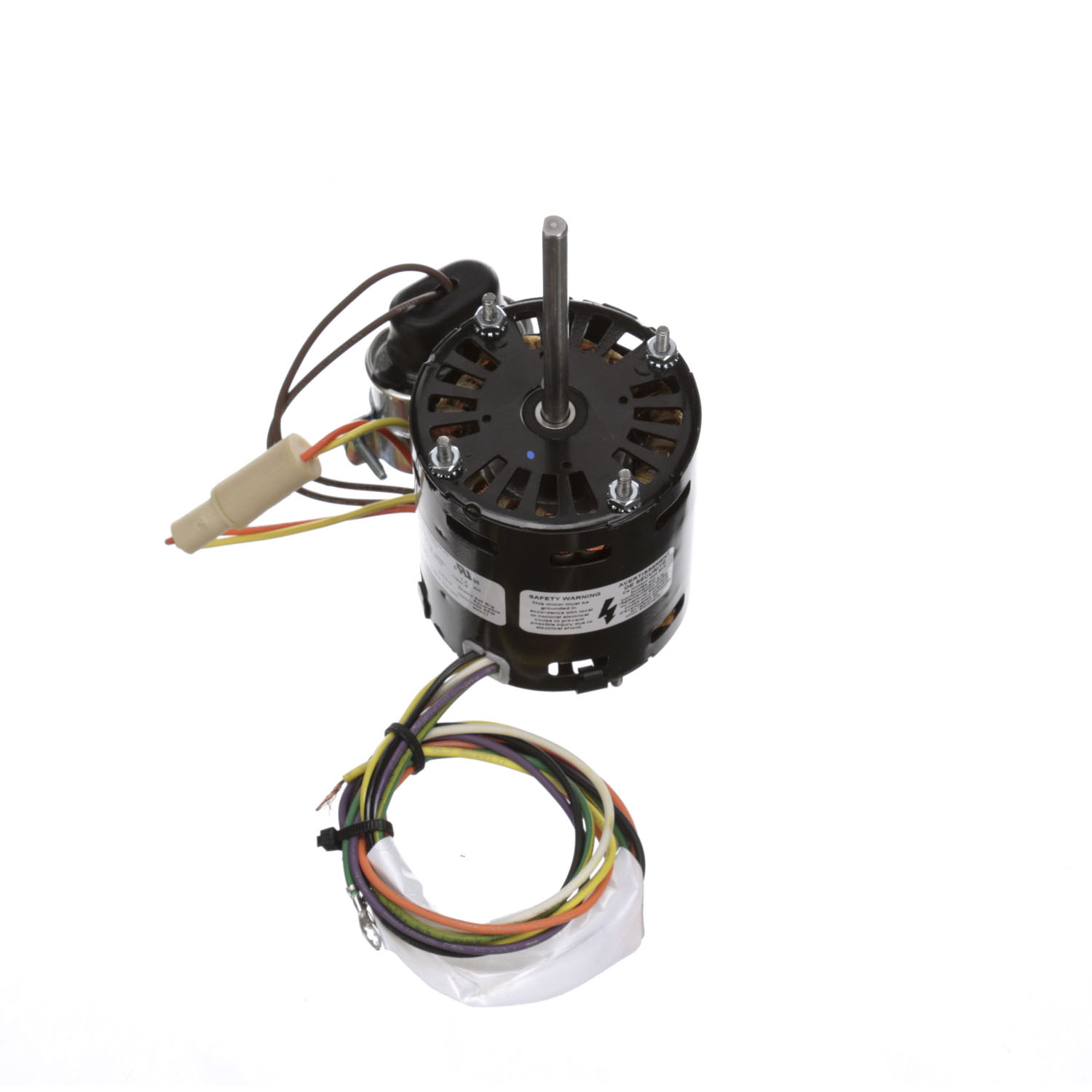

DiversiTech RESCUE 9721 Evaporator Fan Motor, 1/12 HP, 1/15 HP, 1/20 HP, 115/208/230 V, 1-Phase, 1,550 RPM, 1,350 RPM, 1 Speed, Belly Band Mount, Extended Studs (8-32 x 1/2"), Open Air Over
DiversiTech RESCUE 9721 Evaporator Fan Motor, 1/12 HP, 1/15 HP, 1/20 HP, 115/208/230 V, 1-Phase, 1,550 RPM, 1,350 RPM, 1 Speed, Belly Band Mount, Extended Studs (8-32 x 1/2"), Open Air Over
| Amperage Rating | : | 1.1/0.57 A; 1.2/0.62 A |
| Bearing Type | : | Ball Bearing |
| Collection | : | Genteq Motors |
| Depth | : | 5 in |
| Enclosure Type | : | Open Air Over |
| Frequency Rating | : | 60 Hz, 50 Hz |
| HP Rating | : | 1/12 HP, 1/15 HP, 1/20 HP |
| Height | : | 11.5 in |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band Mount, Extended Studs (8-32 x 1/2") |
| Number of Speeds | : | 1 |
| Overall Depth | : | 3-39/50 " |
| Overall Width | : | 3-3/10 " |
| Phase | : | 1 |
| Series | : | RESCUE |
| Service Factor | : | 1 |
| Shaft Size | : | 5/16" x 3-1/4" |
| Speed Rating | : | 1,550 RPM, 1,350 RPM |
| Suitable For Use With | : | Replaces: Hundreds of OEM Shaded Pole Evaporator Fan Motors |
| Temperature Rating | : | 122 °F |
| Voltage Rating | : | 115/208/230 V |
| Width | : | 5.75 in |
The RESCUE 9721 is a versatile, high-efficiency replacement motor designed for evaporator fan applications. Its multi-horsepower (1/12, 1/15, 1/20 HP) and dual-voltage (115/208-230V) capabilities allow it to replace numerous OEM shaded pole motors, simplifying inventory.The Permanent Split Capacitor (PSC) design delivers improved power with lower energy consumption compared to traditional shaded pole motors, potentially reducing energy usage by up to 50%. This motor features reversible rotation for flexible installation. Built with durable ball bearings and automatic thermal overload protection, it ensures reliable operation and extended service life in demanding refrigeration environments up to 50°C (122°F).
DiversiTech Evaporator Fan Motor, Model: RESCUE, 1/12 HP, 1/15 HP, 1/20 HP, 115/208/230 V, 1-Phase, 1,550 RPM, 1,350 RPM, 1 Speed, Belly Band Mount, Extended Studs (8-32 x 1/2"), Open Air Over, 5/16" x 3-1/4" Shaft Size, 1 Service Factor, 60 Hz, 50 Hz, 1.1/0.57 A; 1.2/0.62 A, Ball Bearing, Class B, 122 °F Temperature Rating, Steel, 3-3/10" Overall Width, 3-39/50" Overall Depth
- Versatile multi-horsepower design replaces 1/12, 1/15, and 1/20 HP OEM shaded pole motors.
- High-efficiency PSC motor can reduce energy consumption by up to 50% compared to shaded pole models.
- Operates on 115V or 208-230V systems and features reversible rotation for flexible installation.
- Built with durable ball bearings and automatic thermal overload protection for enhanced reliability.
- Rated for reliable operation in ambient temperatures up to 50°C (122°F).
- UL and CSA Recognized and includes the required capacitor and mounting nuts.
- Backed by a two-year limited warranty.
