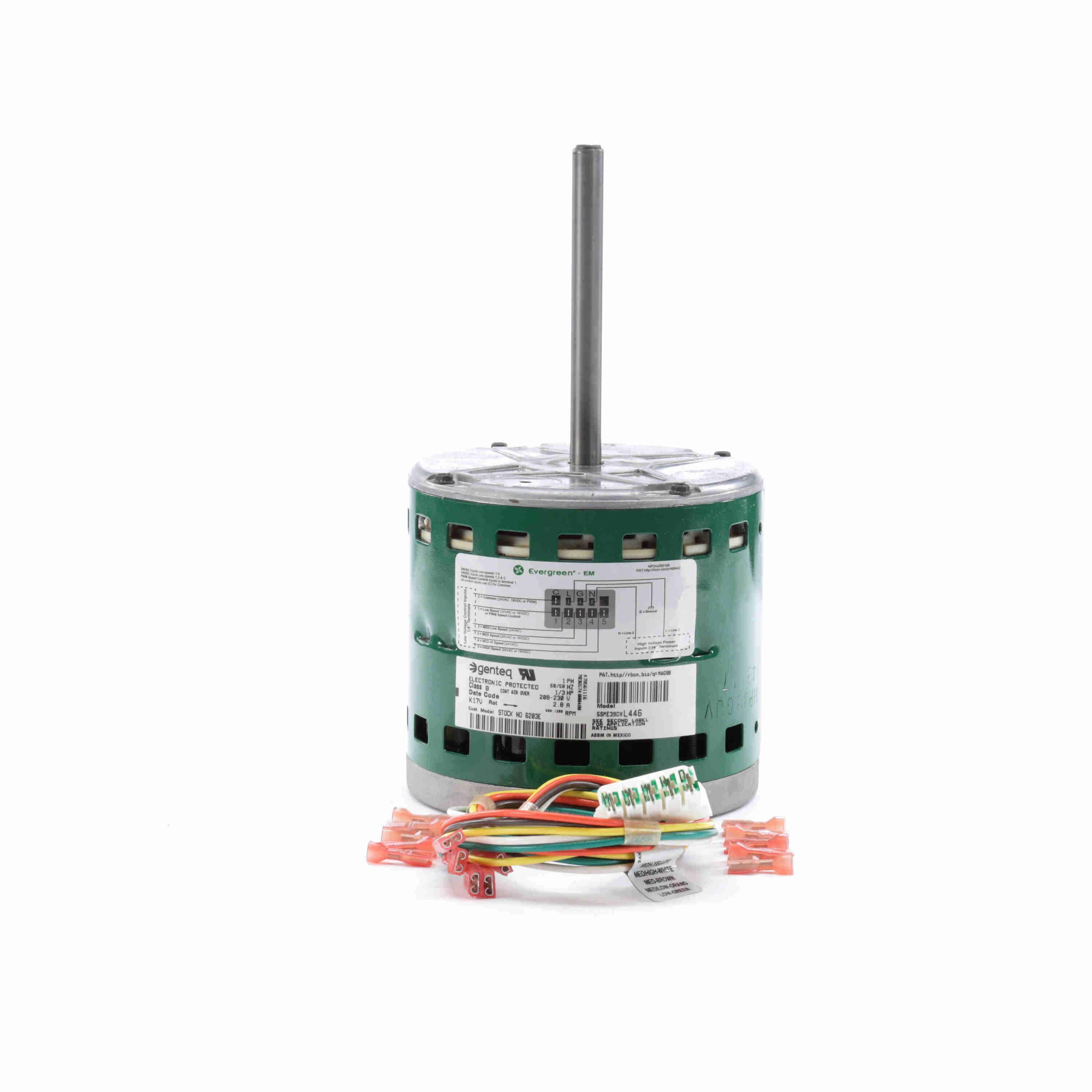

DiversiTech Evergreen EM 6203E ECM Blower Motor, 1/3 HP, 208/230 VAC, 1-Phase, 600-1,200 RPM, 5 Speed, Belly Band Mount, Open Air Over
DiversiTech Evergreen EM 6203E ECM Blower Motor, 1/3 HP, 208/230 VAC, 1-Phase, 600-1,200 RPM, 5 Speed, Belly Band Mount, Open Air Over
| Amperage Rating | : | 2.8 A |
| Bearing Type | : | Ball Bearing |
| Collection | : | Genteq Motors |
| Depth | : | 8 in |
| Enclosure Type | : | Open Air Over |
| Frame | : | NEMA 48 |
| Frequency Rating | : | 50 Hz, 60 Hz |
| HP Rating | : | 1/3 HP |
| Height | : | 16 in |
| Housing Material | : | Rolled Steel |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band Mount |
| Number of Speeds | : | 5 |
| Overall Depth | : | 10.17 " |
| Overall Width | : | 5-3/5 " |
| Phase | : | 1 |
| Series | : | Evergreen EM |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2" Diam x 4-23/25" L (With Flat) |
| Speed Rating | : | 600-1,200 RPM |
| Suitable For Use With | : | Residential and Light Commercial Indoor Furnaces, Air Handlers, and Package Systems (Originally Designed with Standard ECM Motors like X13 or Equivalent) |
| Temperature Rating | : | -4-131 °F |
| Voltage Rating | : | 208/230 VAC |
| Width | : | 8 in |
The Evergreen EM motor is designed as a direct replacement for standard constant torque ECM blower motors, like the X13 or equivalent models, commonly found in residential and light commercial indoor furnaces, air handlers, and package systems. This multi-speed, brushless DC motor provides flexibility for technicians dealing with various airflow requirements.Featuring automated rotation sensing, the Evergreen EM simplifies installation by automatically determining the correct direction. It delivers ECM-level efficiency (up to 80%) and incorporates soft start/stop functions for quieter operation compared to standard PSC motors. Note that this motor is not intended to replace premium ECM constant airflow motors (e.g., Eon, 2.3, 3.0).
DiversiTech ECM Blower Motor, Model: Evergreen EM, 1/3 HP, 208/230 VAC, 1-Phase, 600-1,200 RPM, 5 Speed, Belly Band Mount, Open Air Over, NEMA 48, 1/2" Diam x 4-23/25" L (With Flat) Shaft Size, 1 Service Factor, 50 Hz, 60 Hz, 2.8 A, Ball Bearing, Class B, -4-131 °F Temperature Rating, Rolled Steel, 5-3/5" Overall Width, 10.17" Overall Depth
- Direct replacement for standard constant torque ECM motors, such as X13 models.
- Features 5 discrete speeds selectable via 24VAC thermostat inputs (3 speeds using 18VDC).
- Automatically senses and sets the correct motor rotation direction upon startup.
- Achieves high efficiency (up to 80%) comparable to OEM ECM motors.
- Includes soft start and ramp-down features for quiet operation.
- Built with encapsulated electronics, ball bearings, and electronic overload protection for durability.
- UL and CSA recognized component.
