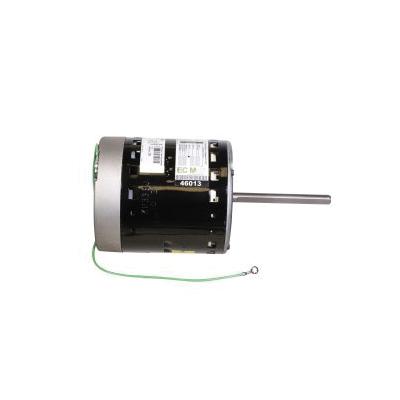

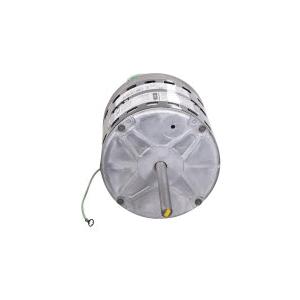

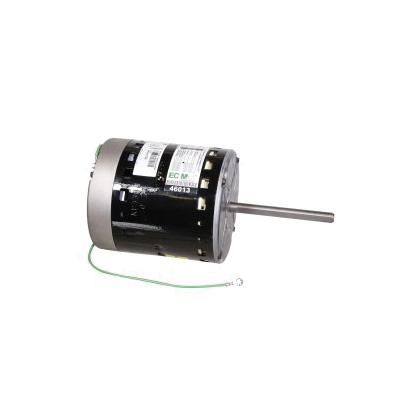

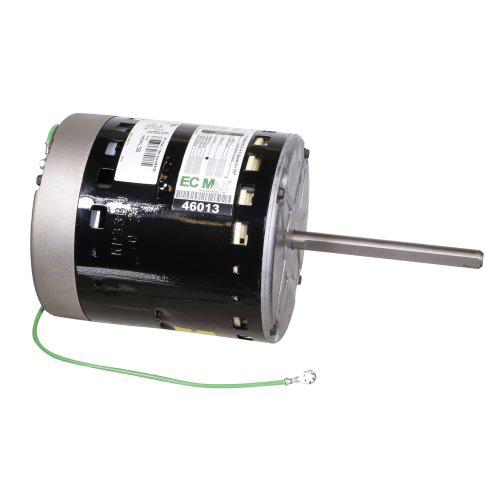

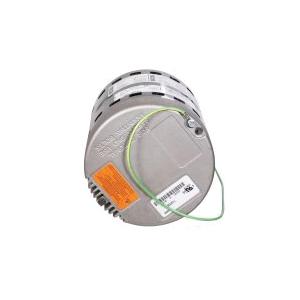

DiversiTech® 46013 ECM Motor With Wiring Harness, Installation Manual, 115-230 V, 3 to 5 A, 1/3 hp, 1075 rpm Speed
DiversiTech® 46013 ECM Motor With Wiring Harness, Installation Manual, 115-230 V, 3 to 5 A, 1/3 hp, 1075 rpm Speed
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 383184
MPN: 46013
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 3 to 5 A |
| Bearing Type | : | Ball |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/3 hp |
| Mounting Type | : | Belly Band |
| Number of Speeds | : | 4 |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 in Dia x 5 in L |
| Speed Rating | : | 1075 rpm |
| Voltage Rating | : | 115-230 V |
The Packard 46013, EC Max 1/3 hp 115/230 V EC 1070 is able to replace constant torque EC motors and be installed as an upgrade for PSC motors. It is dual-voltage rated and has rotation sensing capability. Each motor comes with a wiring harness and installation manual.
DiversiTech® ECM Motor, 115-230 V, 3 to 5 A, 1/3 hp HP Rating, 1075 rpm Speed Rating, 1 ph, 50/60 Hz, 1/2 in Dia x 5 in L Shaft, 4 Speed, Ball Bearing, Belly Band Mount
- Constant torque EC or PSC replacement capability
- Dual-voltage
