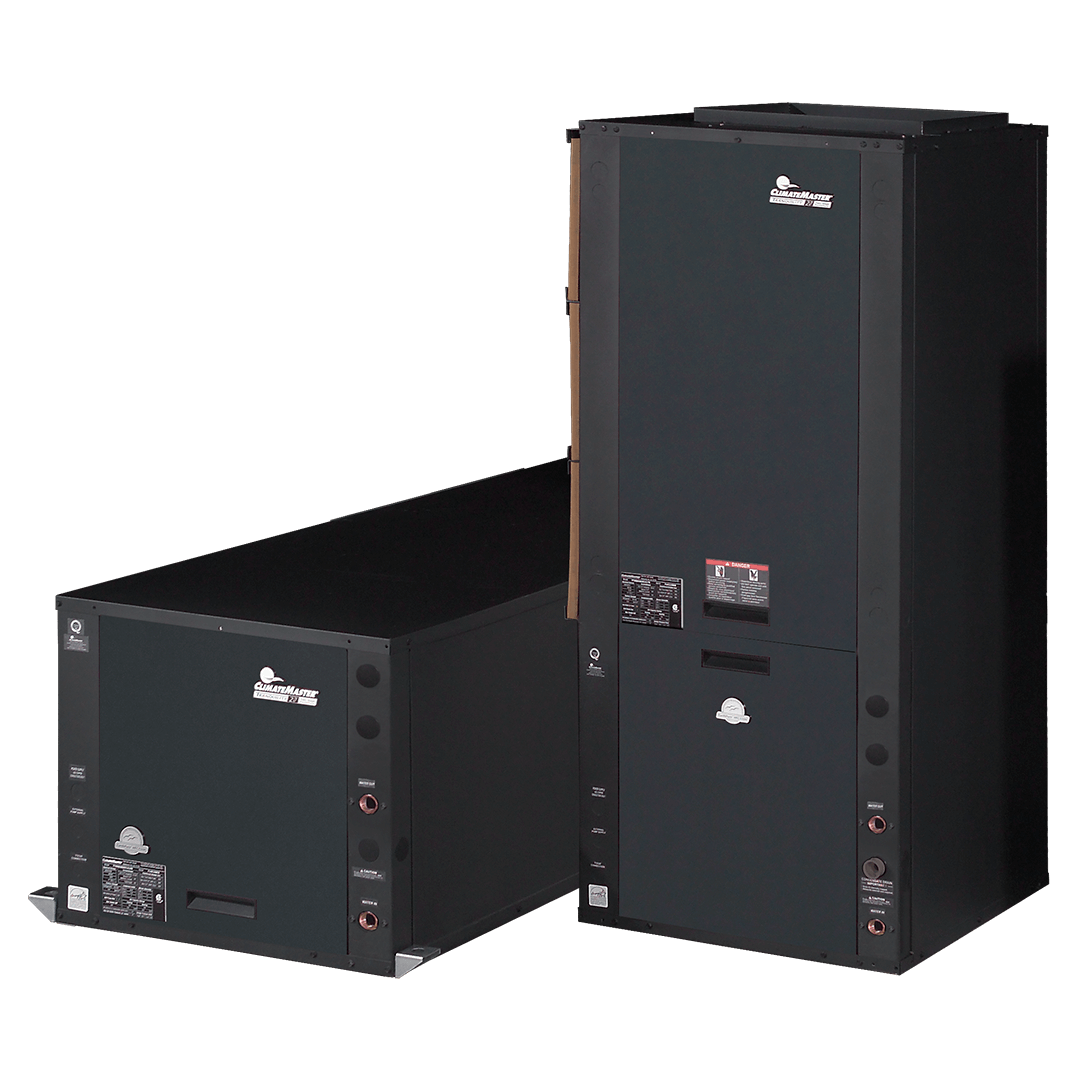

ClimateMaster Tranquility 30 Digital (TE) TEV064BGD02CRTS Water Source Heat Pump, 5 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 16.2 EER (WLHP), 18.8 EER (GLHP), 24.4 EER (GWHP), 1" FPT (Water), 1/2" FPT (HWG) Connection, 1-Phase
ClimateMaster Tranquility 30 Digital (TE) TEV064BGD02CRTS Water Source Heat Pump, 5 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 16.2 EER (WLHP), 18.8 EER (GLHP), 24.4 EER (GWHP), 1" FPT (Water), 1/2" FPT (HWG) Connection, 1-Phase
| BTU Cooling Rating | : | 60,000 Btu/hr |
| BTU Rating | : | 61,500-71,500 BTU/hr (Cooling), 48,700-77,400 BTU/hr (Heating) |
| Blower Size | : | 11" Diam x 10" W |
| CFM Rating | : | 1,500 CFM (Cooling), 1,650 CFM (Heating) |
| Coil Rating | : | 5 Tons |
| Color | : | Matte Black |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Vertical, Upflow, Right Hand |
| Connection Type | : | 1" FPT (Water), 1/2" FPT (HWG) |
| Dimensions | : | 58-1/2" H x 25-2/5" W x 30-3/5" D |
| EER Rating | : | 16.2 EER (WLHP), 18.8 EER (GLHP), 24.4 EER (GWHP) |
| Filter Size | : | 16" x 30" x 1" (1), 20" x 30" x 1" (1) |
| Finish | : | Black Matte Polyester Powder Coat |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1 HP (Fan Motor) |
| HSPF2 Range | : | 24.4 |
| Material | : | Galvanized Steel |
| Model Number | : | TEV06 |
| Model | : | TEV064BGD02CRTS |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 514.7 PSI (Working Water Pressure, Base Unit) |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 24.4 |
| Series | : | Tranquility 30 Digital (TE) |
| Temperature Rating | : | 20-120 °F (Entering Water), 45-130 °F (Ambient Cooling), 39-85 °F (Ambient Heating) |
| Tonnage | : | 5 tons |
| Voltage Rating | : | 208/230 V |
| Volts | : | 208/230 V |
The Tranquility® 30 (TE) Premier Efficiency Series delivers outstanding efficiency and comfort with features like the iGate® two-way communicating control and a two-stage compressor. Suitable for new construction and retrofit applications, it exceeds ASHRAE 90.1 standards while ensuring quiet operation and optimized performance.Driven by innovative features such as the iGate® two-way communicating control, a two-stage compressor, and variable-speed fan, this series includes models ranging from 2 to 6 tons, all exceeding ASHRAE 90.1 efficiency standards. Standard features include intelligent variable speed fan motors, a unique double isolation compressor mounting for quiet operation, and field convertible supply air arrangements. Configurable options enhance its performance, with features like internally mounted variable speed water pumps and modulating water valves for optimized performance. The Tranquility® 30 (TE) is designed for both new construction and retrofit applications, providing reliable operation and lower operating costs.
ClimateMaster Water Source Heat Pump, Model: Tranquility 30 Digital (TE), 5 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 16.2 EER (WLHP), 18.8 EER (GLHP), 24.4 EER (GWHP), 1" FPT (Water), 1/2" FPT (HWG) Connection, 1-Phase, 58-1/2" H x 25-2/5" W x 30-3/5" D Dimensions, 1,500 CFM (Cooling), 1,650 CFM (Heating), Two-Stage Scroll, 11" Diam x 10" W Blower Size, 1 HP (Fan Motor), Galvanized Steel, Vertical Upflow, 16" x 30" x 1" (1), 20" x 30" x 1" (1) Filter Size, 2 Stage, 61,500-71,500 BTU/hr (Cooling), 48,700-77,400 BTU/hr (Heating), 514.7 PSI (Working Water Pressure, Base Unit), 20-120 °F (Entering Water), 45-130 °F (Ambient Cooling), 39-85 °F (Ambient Heating), 60 Hz, 60 A Fuse Rating, Matte Black, Black Matte Polyester Powder Coat
- Exceeds ASHRAE 90.1 efficiency standards.
- Features a Copeland UltraTechâ„¢ two-stage scroll compressor for efficient operation.
- Equipped with an intelligent variable speed ECM fan motor for precise airflow control and soft start.
- Includes communicating DXM2.5 controls to simplify start-up, commissioning, and service time.
- Unique double isolation compressor mounting system reduces noise for quiet operation.
- Constructed from heavy-gauge galvanized steel with a durable powder coat paint finish.
- Uses environmentally friendly EarthPure® (HFC-410A) refrigerant.
- Features vFlow® internal variable water flow components for optimized performance (on specific configurations).
