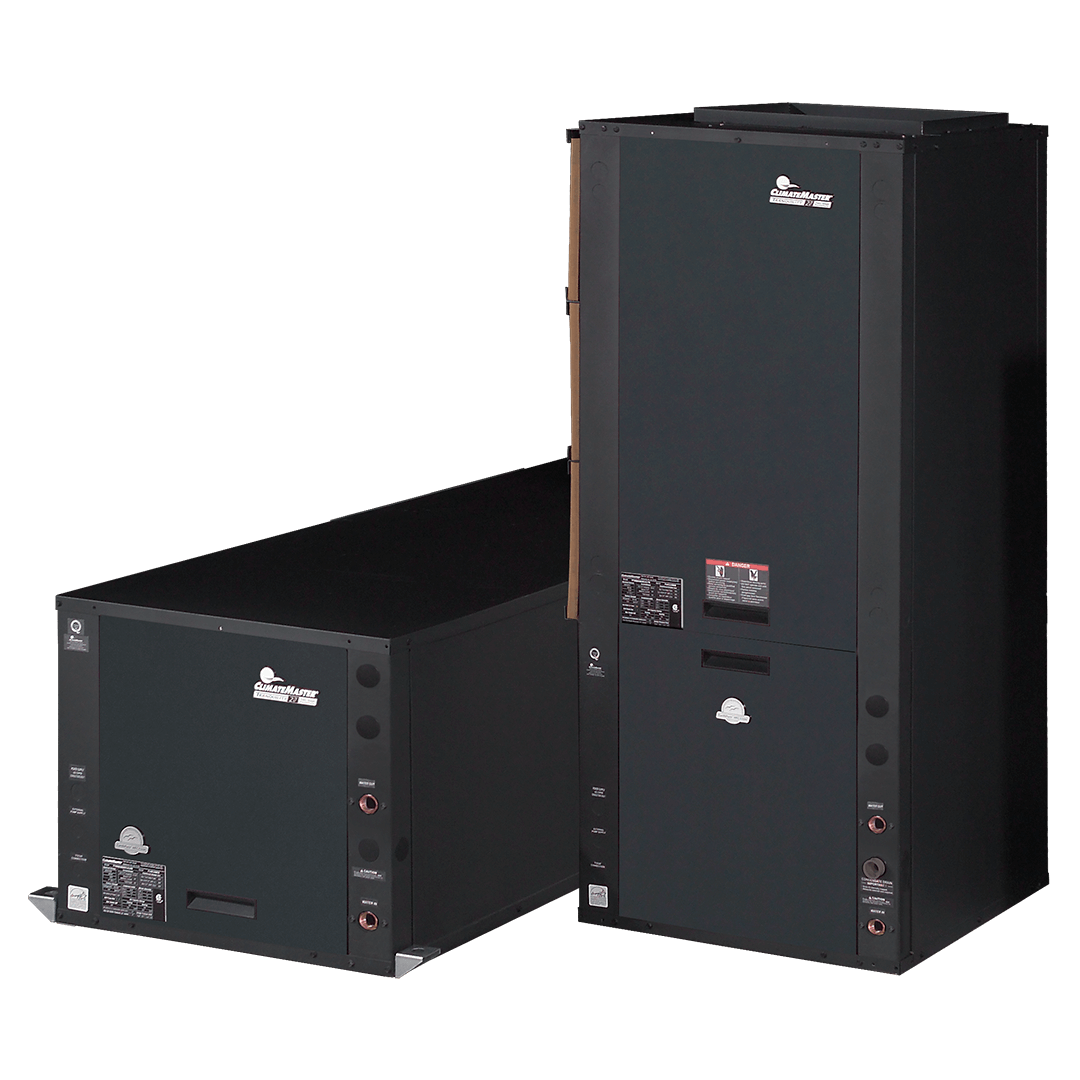

ClimateMaster Tranquility 30 Digital (TE) TEV038BGD02CRTS Water Source Heat Pump, 3 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 17.9 EER (WLHP), 26.1 EER (GWHP), 20.3 EER (GLHP), 3/4" FPT (Water), 1/2" FPT (HWG) Connection, 1-Phase
ClimateMaster Tranquility 30 Digital (TE) TEV038BGD02CRTS Water Source Heat Pump, 3 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 17.9 EER (WLHP), 26.1 EER (GWHP), 20.3 EER (GLHP), 3/4" FPT (Water), 1/2" FPT (HWG) Connection, 1-Phase
| BTU Rating | : | 37,700-42,100 BTU/hr (Cooling), 29,700-45,700 BTU/hr (Heating) |
| Blower Size | : | 11" Diam x 10" W |
| CFM Rating | : | 1,500 CFM |
| Coil Rating | : | 3 Tons |
| Color | : | Matte Black |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Vertical, Upflow, Right Hand |
| Connection Type | : | 3/4" FPT (Water), 1/2" FPT (HWG) |
| Dimensions | : | 50-1/2" H x 25-2/5" W x 30-3/5" D |
| EER Rating | : | 17.9 EER (WLHP), 26.1 EER (GWHP), 20.3 EER (GLHP) |
| Filter Size | : | 28" x 30" x 1" |
| Finish | : | Black Matte Polyester Powder Coat |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| HP Rating | : | 1/2 HP (Fan Motor) |
| Material | : | Galvanized Steel |
| Model | : | TEV038BGD02CRTS |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 514.7 PSI (Working Water Pressure, Base Unit) |
| Refrigerant Type | : | R-410A |
| Series | : | Tranquility 30 Digital (TE) |
| Temperature Rating | : | 20-120 °F (Entering Water), 45-130 °F (Ambient Cooling), 39-85 °F (Ambient Heating) |
| Tonnage | : | 3 tons |
| Voltage Rating | : | 208/230 V |
The Tranquility® 30 (TE) Premier Efficiency Series delivers excellent efficiency, comfort, reliability, and serviceability. It is intelligently driven by iGate® two-way communicating controls and features a two-stage Copeland UltraTechâ„¢ scroll compressor, variable-speed ECM fan, and vFlow® internal variable water flow components for optimized performance. This unit provides reliable operation, lower operating costs, and supports compact installation requirements.This 3-ton, vertical upflow model utilizes EarthPure® R-410A refrigerant and operates on 208/230V single-phase power. Designed for geothermal applications including ground loop, ground water, and water loop systems, it offers exceptional EER ratings (up to 34.4 part-load) and exceeds ASHRAE 90.1 efficiency standards.
ClimateMaster Water Source Heat Pump, Model: Tranquility 30 Digital (TE), 3 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 17.9 EER (WLHP), 26.1 EER (GWHP), 20.3 EER (GLHP), 3/4" FPT (Water), 1/2" FPT (HWG) Connection, 1-Phase, 50-1/2" H x 25-2/5" W x 30-3/5" D Dimensions, 1,500 CFM, Two-Stage Scroll, 11" Diam x 10" W Blower Size, 1/2 HP (Fan Motor), Galvanized Steel, Vertical Upflow, 28" x 30" x 1" Filter Size, 2 Stage, 37,700-42,100 BTU/hr (Cooling), 29,700-45,700 BTU/hr (Heating), 514.7 PSI (Working Water Pressure, Base Unit), 20-120 °F (Entering Water), 45-130 °F (Ambient Cooling), 39-85 °F (Ambient Heating), 60 Hz, 35 A Fuse Rating, Matte Black, Black Matte Polyester Powder Coat
- Features a high-efficiency, two-stage Copeland UltraTechâ„¢ scroll compressor.
- Equipped with a variable-speed ECM fan motor for precise airflow and quiet, soft starts.
- Includes iGate® communicating controls for advanced diagnostics and system monitoring.
- Utilizes vFlow® internal variable water flow technology to optimize system performance.
- Exceeds ASHRAE 90.1 energy efficiency standards.
- Uses environmentally preferred R-410A refrigerant.
- Constructed with durable galvanized steel and features an UltraQuiet sound attenuation package.
