ClimateMaster Tranquility Digital Indoor Split (TES) TES038BGD00CNNS Outdoor Split Geothermal Heat Pump, 3 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 23.4 EER (GWHP, Full), 1,000 CFM (Nominal), Sweat/Braze (Liquid/Vapor Lines), Swivel (Hose Connection)
ClimateMaster Tranquility Digital Indoor Split (TES) TES038BGD00CNNS Outdoor Split Geothermal Heat Pump, 3 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 23.4 EER (GWHP, Full), 1,000 CFM (Nominal), Sweat/Braze (Liquid/Vapor Lines), Swivel (Hose Connection)
| Amperage Rating | : | 15.8 A (FLA) |
| CFM Rating | : | 1,000 CFM |
| Color | : | Black Matte |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Indoor Unit |
| Connection Type | : | Sweat/Braze (Liquid/Vapor Lines), Swivel (Hose Connection) |
| Dimensions | : | 26-3/10" H x 25-2/5" W x 30-3/5" D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 23.4 EER (GWHP, Full) |
| Finish | : | Epoxy Powder Coated (Black Matte) |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| Liquid Line Size | : | 3/8 " |
| Material | : | Galvanized Steel (Cabinet), Stainless Steel (Front Access Panels) |
| Model Number | : | TES03 |
| Model | : | TES038BGD00CNNS |
| Mounting Type | : | Indoor Mount |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| Series | : | Tranquility Digital Indoor Split (TES) |
| Suction Line Size | : | 7/8 " |
| Temperature Rating | : | 20-120 °F (Entering Water), 45-130 °F (Ambient Cooling), 39-85 °F (Ambient Heating) |
| Tonnage | : | 3 tons |
| Voltage Rating | : | 208/230 V |

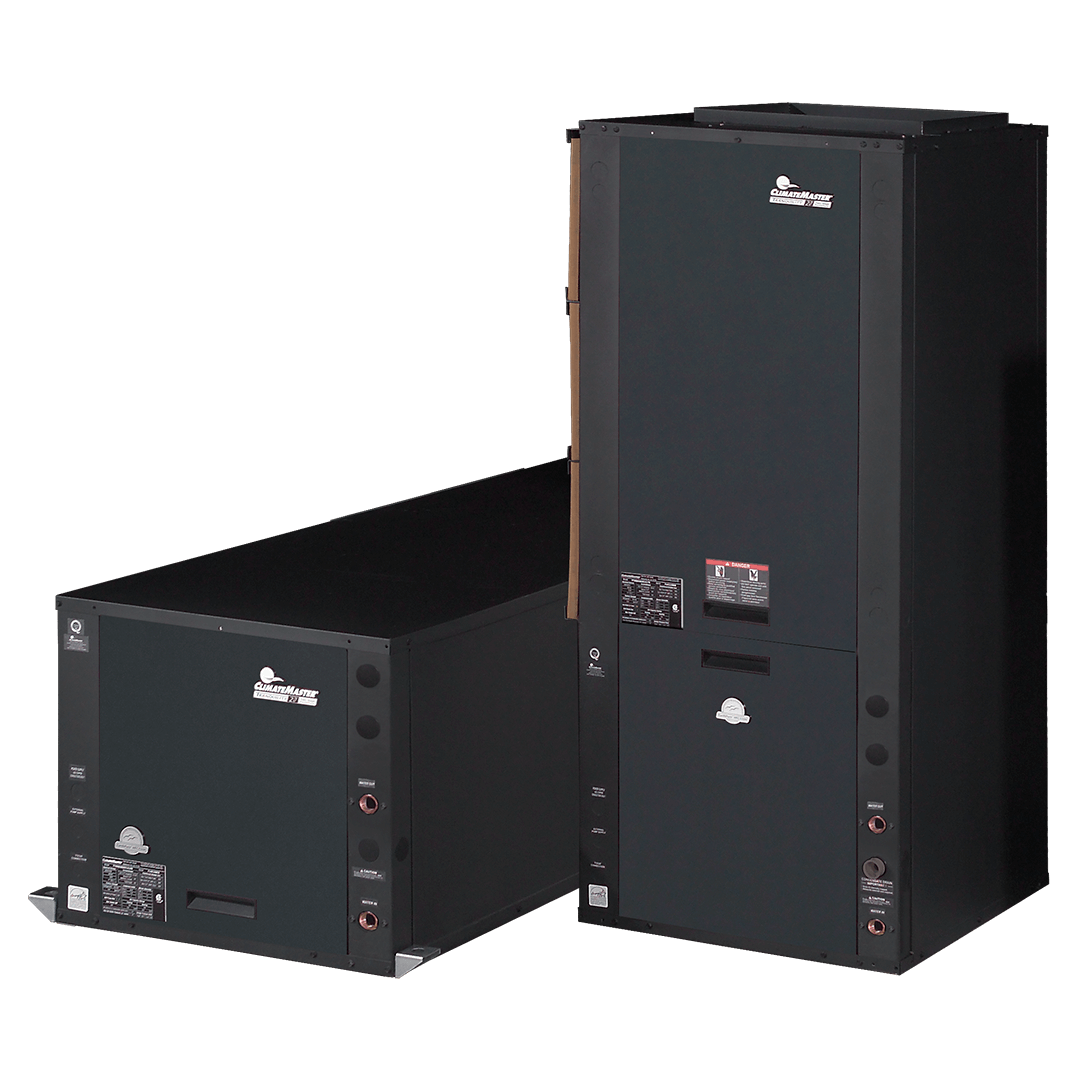

The Tranquility Digital Indoor Split Geothermal Heat Pump delivers the ULTIMATE in efficiency (25.6 EER and 4.3 COP*), comfort, reliability and serviceability- intelligently driven by the iGate2, the industry's first two-way communicating control, two-stage compressor, and industry-first vFlow® internal variable water flow components. The Tranquility Splits deliver reliable operation, lower operating costs and compact installation.The Tranquility Digital Indoor Split Series easily connects to new or existing fossil fuel and electric furnaces. Ideal for remote applications with a second floor or crawl spaces.
ClimateMaster Outdoor Split Geothermal Heat Pump, Model: Tranquility Digital Indoor Split (TES), 3 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 23.4 EER (GWHP, Full), 1,000 CFM (Nominal), Sweat/Braze (Liquid/Vapor Lines), Swivel (Hose Connection), 3/8" Liquid Line Size, 7/8" Suction Line Size, 1 Phase, Two-Stage Scroll, Indoor Unit, Indoor Mount, Galvanized Steel (Cabinet), Stainless Steel (Front Access Panels), 26-3/10" H x 25-2/5" W x 30-3/5" D Dimensions, Black Matte, Epoxy Powder Coated (Black Matte), Domestic Origin, 60 Hz, 30 A Fuse Rating, 15.8 A (FLA) Amperage Rating, 20-120 °F (Entering Water), 45-130 °F (Ambient Cooling), 39-85 °F (Ambient Heating)
- Features a Copelandâ„¢ UltraTechâ„¢ two-stage scroll compressor for enhanced comfort and efficiency.
- Includes iGate2 communicating controls for advanced configuration, monitoring, and diagnostics.
- Engineered for ultra-quiet operation with dual-level compressor isolation.
- Compatible With: ClimateMaster TAC and TAH outdoor units.
- Designed for easy service with lift-out access panels and a swing-out control box.
- Covered by a standard 10-year limited parts warranty and 5-year labor allowance.
- Uses environmentally friendly R-410A refrigerant.
