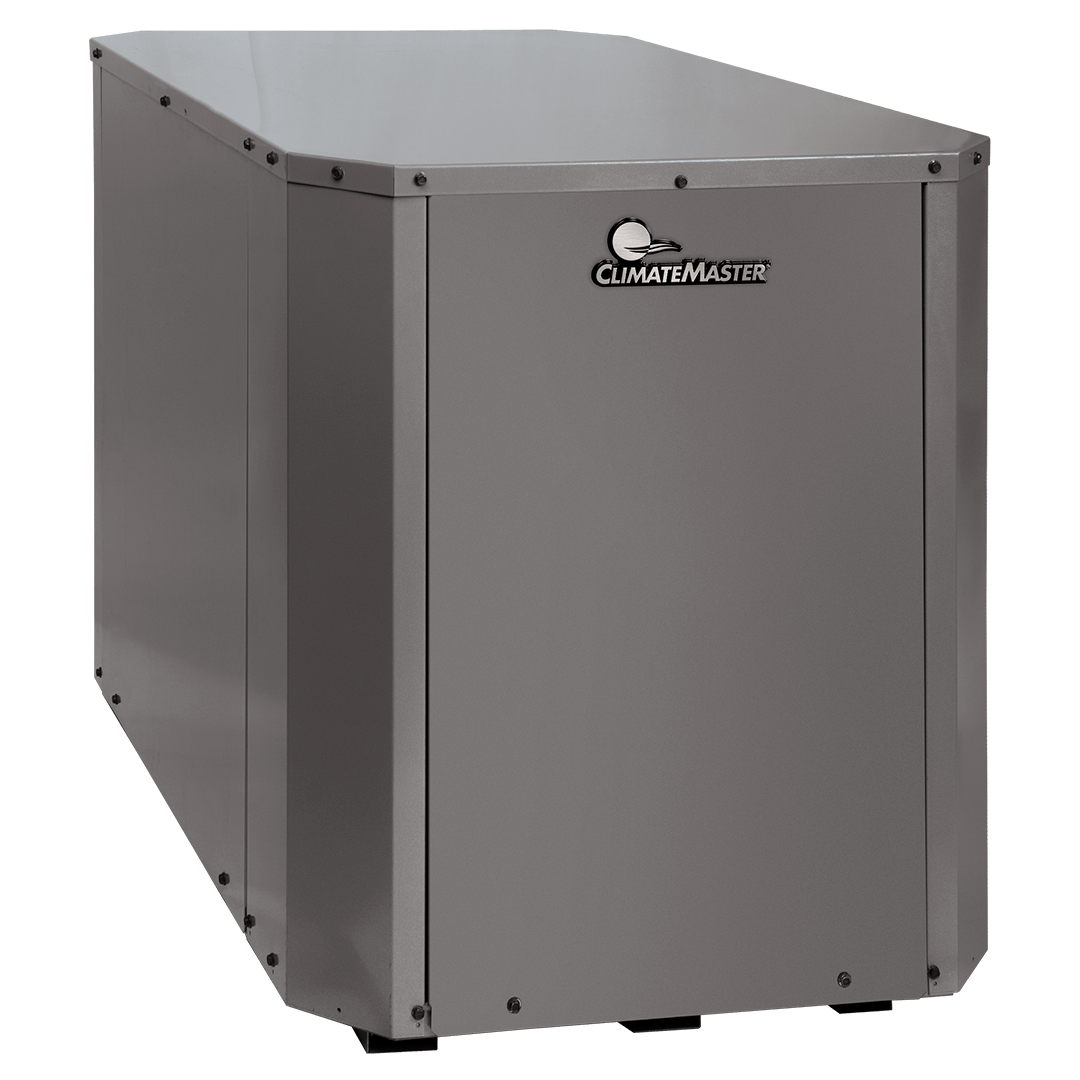

ClimateMaster Tranquility Digital Outdoor Split (TEP) TEP049BGD02ANNS Outdoor Split Geothermal Heat Pump, 4 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.9 EER (GLHP, Full), 1,650 CFM (Nominal Cooling), 1,550 CFM (Nominal Heating), 48,700 BTU/hr (GLHP, Cooling)
ClimateMaster Tranquility Digital Outdoor Split (TEP) TEP049BGD02ANNS Outdoor Split Geothermal Heat Pump, 4 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.9 EER (GLHP, Full), 1,650 CFM (Nominal Cooling), 1,550 CFM (Nominal Heating), 48,700 BTU/hr (GLHP, Cooling)
| Amperage Rating | : | 22.6 A (FLA) |
| BTU Rating | : | 48,700 BTU/hr (GLHP, Cooling) |
| CFM Rating | : | 1,650 CFM (Nominal Cooling), 1,550 CFM (Nominal Heating) |
| Color | : | Black Matte |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Outdoor Unit |
| Connection Type | : | Sweat/Braze (Liquid/Vapor Lines), Swivel (Hose Connection) |
| Dimensions | : | 29-1/10" H x 26-3/10" W x 37-2/5" D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 16.9 EER (GLHP, Full) |
| Finish | : | Epoxy Powder Coated (Black Matte) |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 45 A |
| Liquid Line Size | : | 3/8 " |
| Material | : | Galvanized Steel (Cabinet), Stainless Steel (Front Access Panels) |
| Model Number | : | TEP04 |
| Model | : | TEP049BGD02ANNS |
| Mounting Type | : | Pad Mount (Outdoor) |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 21.3 |
| Series | : | Tranquility Digital Outdoor Split (TEP) |
| Suction Line Size | : | 7/8 " |
| Temperature Rating | : | 20-120 °F (Entering Water Temperature), -10-130 °F (Ambient Cooling), -10-85 °F (Ambient Heating) |
| Tonnage | : | 4 tons |
| Voltage Rating | : | 208/230 V |
| Voltage | : | 208/230 V |
The Tranquility® (TEP) Digital Two-Stage Series - Outdoor Split by ClimateMaster offers optimal efficiency and comfort with advanced iGate® 2 communicating controls and a next-generation Copelandâ„¢ Ultra-Techâ„¢ Two-Stage Scroll Compressor. With four capacity options and support for a wide temperature range, this series is perfect for new installations and retrofits, ensuring reliable performance at lower operating costs.The Tranquility® (TEP) Digital Two-Stage Series - Outdoor Split by ClimateMaster is designed for optimal efficiency and comfort, featuring advanced iGate2 communicating controls for enhanced monitoring and diagnostics. It utilizes a next-generation Copelandâ„¢ Ultra-Techâ„¢ Two-Stage Scroll Compressor for quiet and efficient operation, along with vFlow® technology for variable water flow. Available in four capacities (026, 038, 049, and 064), this series supports a wide temperature operation range from 20°F to 120°F and is compatible with existing fossil fuel and electric furnaces. The units come with a standard 10-year limited warranty on parts and a 5-year labor allowance, with options for extended coverage. Ideal for both new installations and retrofits, the Tranquility TEP series ensures reliable performance and lower operating costs.
ClimateMaster Outdoor Split Geothermal Heat Pump, Model: Tranquility Digital Outdoor Split (TEP), 4 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.9 EER (GLHP, Full), 1,650 CFM (Nominal Cooling), 1,550 CFM (Nominal Heating), 48,700 BTU/hr (GLHP, Cooling), Sweat/Braze (Liquid/Vapor Lines), Swivel (Hose Connection), 3/8" Liquid Line Size, 7/8" Suction Line Size, 1 Phase, Two-Stage Scroll, Outdoor Unit, Pad Mount (Outdoor), Galvanized Steel (Cabinet), Stainless Steel (Front Access Panels), 29-1/10" H x 26-3/10" W x 37-2/5" D Dimensions, Black Matte, Epoxy Powder Coated (Black Matte), Domestic Origin, 60 Hz, 45 A Fuse Rating, 22.6 A (FLA) Amperage Rating, 20-120 °F (Entering Water Temperature), -10-130 °F (Ambient Cooling), -10-85 °F (Ambient Heating)
- Features advanced iGate2 communicating controls for enhanced monitoring, configuration, and diagnostics.
- Includes vFlow® variable water flow technology with an internal variable-speed flow center for optimized efficiency and simpler installation.
- Utilizes a Copelandâ„¢ Ultra-Techâ„¢ two-stage scroll compressor with dual-level isolation for high efficiency and ultra-quiet operation.
- Designed for outdoor installation with a durable, weather-tight galvanized steel cabinet featuring an epoxy powder-coat finish.
- Offers flexible application as a total electric heat pump or an add-on unit with fossil fuel backup.
- Includes stainless steel braided hoses and backseating brass service valves for easier loop connection and servicing.
- Covered by a standard 10-year limited parts warranty and a 5-year labor allowance.
- Compatible With: ClimateMaster TAC and TAH air handlers (AHRI matched and rated).
