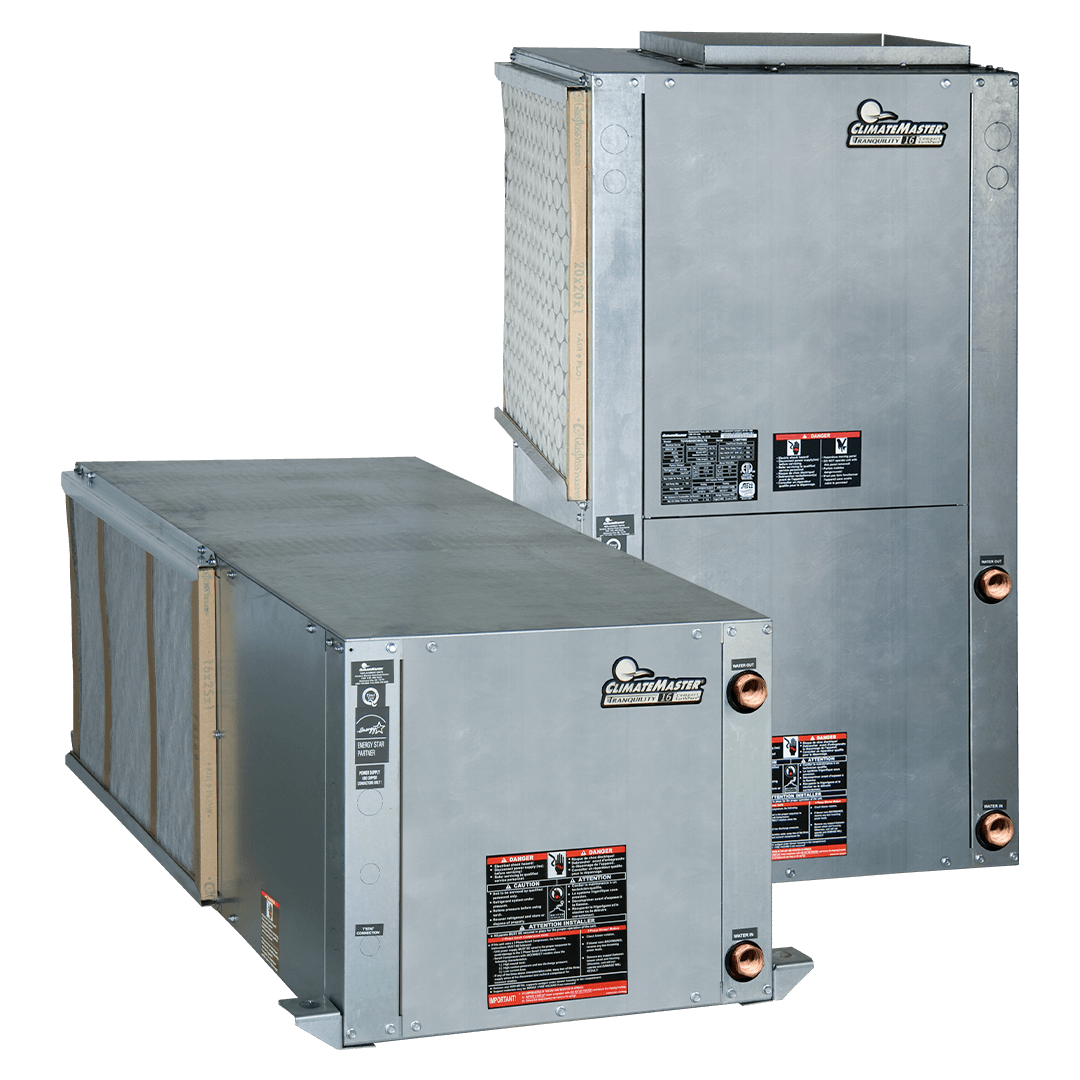

ClimateMaster Tranquility 16 (TC) Compact TCH015AEC10CCSS Water Source Heat Pump, 1.5 Tons, R-410A, Horizontal, 265 V, 1/2" FPT (Water) Connection, 1-Phase, 43-1/10" L x 17" H x 20-1/10" W Dimensions
ClimateMaster Tranquility 16 (TC) Compact TCH015AEC10CCSS Water Source Heat Pump, 1.5 Tons, R-410A, Horizontal, 265 V, 1/2" FPT (Water) Connection, 1-Phase, 43-1/10" L x 17" H x 20-1/10" W Dimensions
| Amperage Rating | : | 5.7 A (FLA), 7.0 A (MCA) |
| BTU Rating | : | 15,000 BTU/hr |
| Blower Size | : | 8" Diam x 7" W |
| CFM Rating | : | 525 CFM |
| Coil Rating | : | 1.25 Tons |
| Compressor Type | : | Rotary |
| Configuration | : | Horizontal |
| Connection Type | : | 1/2" FPT (Water) |
| Dimensions | : | 43-1/10" L x 17" H x 20-1/10" W |
| Drive Type | : | Direct Drive |
| Filter Size | : | 16" x 25" |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| Material | : | Galvanized Steel (Construction), Polymer (Drain Pan) |
| Model | : | TCH015AEC10CCSS |
| Mounting Type | : | Horizontal |
| Phase | : | 1 |
| Pressure Rating | : | 514.7 PSI |
| Refrigerant Type | : | R-410A |
| Series | : | Tranquility 16 (TC) Compact |
| Temperature Rating | : | 65-95 °F (Entering Air, Cooling), 45-80 °F (Entering Air, Heating), 30-120 °F (Entering Water) |
| Tonnage | : | 1.5 tons |
| Voltage Rating | : | 265 V |
The Tranquility® 16 (TC) Compact Series by ClimateMaster provides exceptional flexibility and high efficiency in water-source heat pump applications, with capacities from 1/2 ton to 5 tons. This compact series exceeds ASHRAE 90.1 standards and features advanced options like ECM fan motors and double isolation compressor mounting for quiet operation.
ClimateMaster Water Source Heat Pump, Model: Tranquility 16 (TC) Compact, 1.5 Tons, R-410A, Horizontal, 265 V, 1/2" FPT (Water) Connection, 1-Phase, 43-1/10" L x 17" H x 20-1/10" W Dimensions, 525 CFM, Direct Drive, Rotary, 8" Diam x 7" W Blower Size, Galvanized Steel (Construction), Polymer (Drain Pan), 16" x 25" Filter Size, 1.25 Tons Coil Rating, 15,000 BTU/hr, 5.7 A (FLA), 7.0 A (MCA), 514.7 PSI, 65-95 °F (Entering Air, Cooling), 45-80 °F (Entering Air, Heating), 30-120 °F (Entering Water), 60 Hz, 15 A Fuse Rating, Galvanized
- Exceeds ASHRAE 90.1 efficiency standards.
- Features a rotary compressor with unique double isolation mounting for quiet operation.
- Utilizes EarthPure® HFC-410A refrigerant.
- Compact horizontal design is ideal for new construction and replacement applications.
- Constructed with a durable galvanized steel cabinet.
- Includes eight standard safety features for reliable operation.
- Equipped with a PSC three-speed fan motor.
- AHRI Certified.
