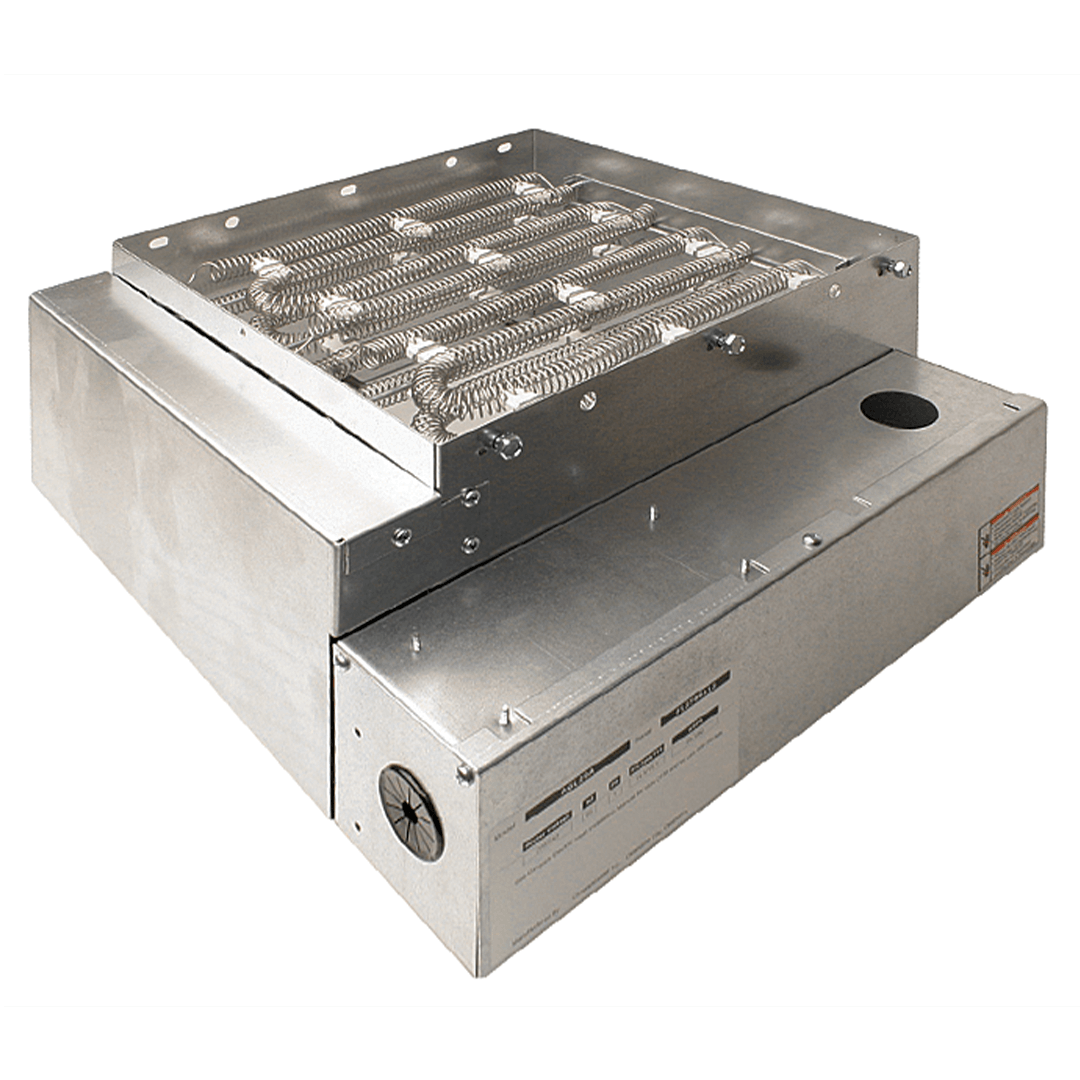

ClimateMaster AG Series AGM10ABG Electric Heater Kit, 9,600 W (At 240 V), 7,200 W (At 208 V), 208/240 V, 1 Phase, 40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V), Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units), Domestic, 60 Hz
ClimateMaster AG Series AGM10ABG Electric Heater Kit, 9,600 W (At 240 V), 7,200 W (At 208 V), 208/240 V, 1 Phase, 40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V), Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units), Domestic, 60 Hz
| Amperage Rating | : | 40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V) |
| Domestic/Import | : | Domestic |
| Frequency Rating | : | 60 Hz |
| Model | : | AGM10ABG |
| Mounting Type | : | Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units) |
| Phase | : | 1 |
| Power Rating | : | 9,600 W (At 240 V), 7,200 W (At 208 V) |
| Series | : | AG Series |
| Suitable For Use With | : | ClimateMaster Models: QE, VE, TS, TE, TZ, TAH |
| Voltage Rating | : | 208/240 V |
The AG Series Electric Heaters are designed for compatibility with various ClimateMaster units, including QE, VE, TE, and TS models, as well as TAH units. They offer multiple kW ratings ranging from 3.8 to 19.2 kW, ensuring efficient heating solutions for residential and commercial applications.The AG Series Electric Heaters from ClimateMaster are designed for compatibility with various models, including QE, VE, TE, TS, and TAH units. These heaters are available in multiple power ratings ranging from 4 kW to 20 kW, offering efficient heating solutions for both residential and commercial applications. The AG Series features a relay control board that enables low voltage staging for enhanced performance and energy efficiency. Installation options include internal mounting for vertical units and external mounting for horizontal units, ensuring flexibility in various setups. Additionally, these heaters are equipped with safety features such as internal circuit breakers for models rated at 15 kW and above.
ClimateMaster Electric Heater Kit, Model: AG Series, 9,600 W (At 240 V), 7,200 W (At 208 V), 208/240 V, 1 Phase, 40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V), Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units), Domestic, 60 Hz
- Provides 9.6 kW heating capacity at 240V (7.2 kW at 208V).
- Compatible With: ClimateMaster QE, VE, TE, TS, TZ, and TAH series units.
- Mounts internally on vertical units or directly to the blower outlet on horizontal TAH units.
- Features a relay control board that activates elements via a low voltage harness.
- Operates on single-phase 208/240V, 60 Hz power.
- Factory default staging options available, configurable via dip switches.
- Rated for zero clearance at the unit (horizontal units require 1" duct clearance for first 3 feet).
