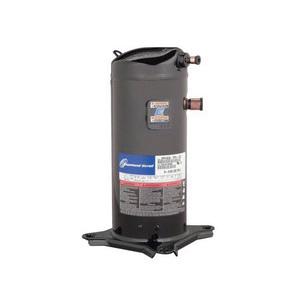

ClimateMaster® 34B0164N01S Scroll Compressor, 38000 Btu/hr BTU, 6.29 cu-ft/min, 208 - 230 VAC, 16.3 A, 3490 W, 3-1/2 hp
ClimateMaster® 34B0164N01S Scroll Compressor, 38000 Btu/hr BTU, 6.29 cu-ft/min, 208 - 230 VAC, 16.3 A, 3490 W, 3-1/2 hp
Manufacturer: ClimateMaster
Brand: ClimateMaster®
Part #: 382843
MPN: 34B0164N01S
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 16.3 A |
| BTU Rating | : | 38000 Btu/hr |
| CFM Rating | : | 6.29 cfm |
| Connection Type | : | 7/8 in Suction, 1/2 in Discharge |
| Dimensions | : | 9.69 in L x 9.69 in W x 16.94 in H |
| EER Rating | : | 10.5 to 21.35 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3-1/2 hp |
| Mass Flow | : | 532 to 607 lb/hr |
| Oil Type | : | POE - AK/DA, 3MA/SP32 |
| Phase | : | 1 ph |
| Power Rating | : | 3490 W |
| Refrigerant Type | : | R-22, R-407C, R-134A, HCFC |
| Rotational Speed | : | 3500 rpm |
| Sound Level | : | 70 to 75 dBA |
| Temperature Rating | : | 45 to 50 deg F Evaporator, 130 to 100 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 208 to 230 VAC |
ClimateMaster® Scroll Compressor, 208 - 230 VAC, 16.3 A, 38000 Btu/hr BTU, 3490 W, 3-1/2 hp, 60 Hz, 1 -Phase, 3500 rev/min, 70 - 75 dBA, 6.29 cu-ft/min, R-22, R-407C, R-134A, HCFC Refrigerant, 3 ton, 10.5 - 21.35 EER, 7/8 in Suction, 1/2 in Discharge Connection, POE - AK/DA, 3MA/SP32 Oil, 532 - 607 lb/hr Mass Flow, 45 - 50 deg F Evaporator, 130 - 100 deg F Condensing, 65 - 70 deg F Return Gas, 85 - 115 deg F Liquid, 9.69 in L x 9.69 in W x 16.94 in H
- Capacitor run - permanent split capacitor motor
- Internal inherent protection
- Model variation
- 42 oz initial oil charge, 34 oz oil recharge
- 207.6 cu-in internal-free volume
- 21.4 A-rated load, 30 A maximum continuous, 112 A locked rotor
- 7-1/2 in L x 7-1/2 in W x 17.17 in H mounting
- 3.11 cu-in/rev displacement
- Bill of material - compressor with molded plug wiring harness, mounting parts and installation instructions
