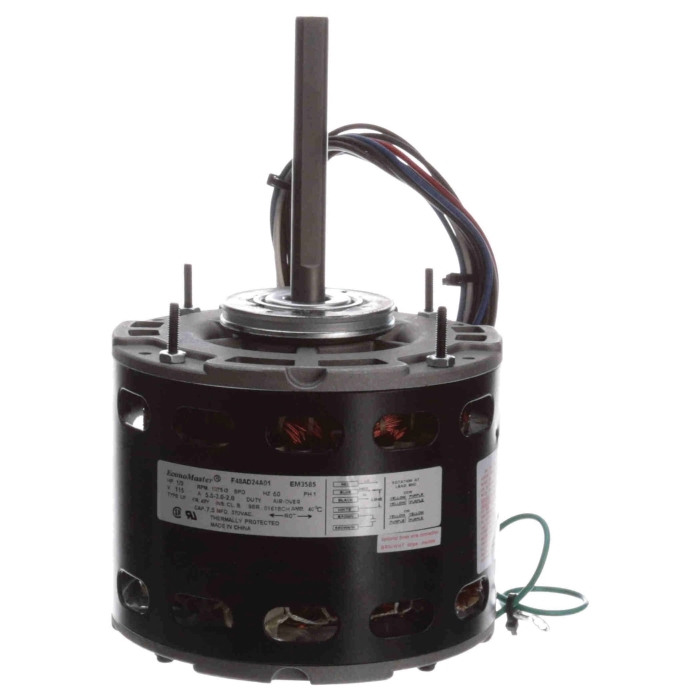

Century® EM3585 Fan and Blower Motor, 1/3 hp Motor, 115 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor
Century® EM3585 Fan and Blower Motor, 1/3 hp Motor, 115 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 386791
MPN: EM3585
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Amperage Rating | : | 2/3/5.5 A |
| Bearing Type | : | Ball |
| Depth | : | 9.36 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Extended Stud |
| NEMA Frame Size | : | 48Y |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 13.78 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.41 in |
| Phase | : | 1 ph |
| Product Family | : | PRO-E SERIES® |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 13 lb |
| Voltage Rating | : | 115 V |
Century® Fan and Blower Motor, 1/3 hp Motor, 115 V, 1 ph Phase, 1075 rpm Motor, Permanent Split Capacitor Motor, 3 -Speed, Reversible Rotation Direction, Ball Bearing, Open Enclosure, 1/2 in Dia Shaft, 48Y NEMA, Service Factor: 1, 9.36 in D, 2/3/5.5 A, Product Family: PRO-E SERIES®, Motor Function Type, 60 Hz Frequency, Extended Stud Mounting
