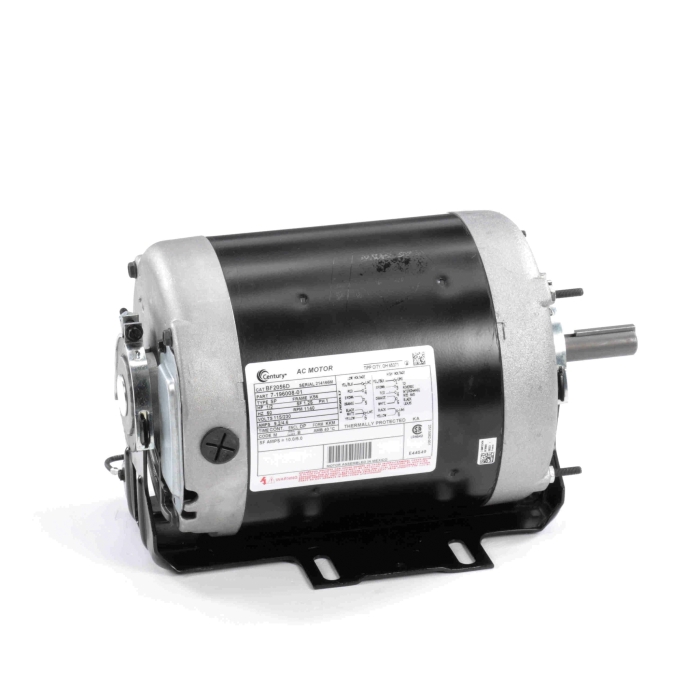

Century® BF2056D Fan and Blower Motor, 1/2 hp Motor, 115/230 V, 1 ph, 1200 rpm Motor, Split Phase Motor, 1-Speed
Century® BF2056D Fan and Blower Motor, 1/2 hp Motor, 115/230 V, 1 ph, 1200 rpm Motor, Split Phase Motor, 1-Speed
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 389756
MPN: BF2056D
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Amperage Rating | : | 4.6/9.2 A |
| Bearing Type | : | Ball |
| Depth | : | 11.44 in |
| Enclosure Type | : | ODP |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/2 hp |
| Motor RPM | : | 1200 rpm |
| Motor Type | : | Split Phase |
| Mounting Type | : | Cushion Base |
| NEMA Frame Size | : | K56 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 14 in |
| Packaged Height | : | 8.5 in |
| Packaged Width | : | 8 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible Counter Clockwise |
| Service Factor | : | 1.25 |
| Shaft Diameter | : | 5/8 in |
| Shipping Weight | : | 30 lb |
| Voltage Rating | : | 115/230 V |
Century® Fan and Blower Motor, 1/2 hp Motor, 115/230 V, 1 ph Phase, 1200 rpm Motor, Split Phase Motor, 1 -Speed, Reversible Counter Clockwise Rotation Direction, Ball Bearing, ODP Enclosure, 5/8 in Dia Shaft, K56 NEMA, Service Factor: 1.25, 11.44 in D, 4.6/9.2 A, Motor Function Type, 60 Hz Frequency, Cushion Base Mounting
