Bramec 13118 Galvanized Base Roof Flashing, 10-1/4" x 14-1/2" (Base) Size, Galvanized, Galvanized Steel, 24 Ga, 180 °F (Continuous), UPS, SBCCI & BOCA Listed
Bramec 13118 Galvanized Base Roof Flashing, 10-1/4" x 14-1/2" (Base) Size, Galvanized, Galvanized Steel, 24 Ga, 180 °F (Continuous), UPS, SBCCI & BOCA Listed
Manufacturer: Bramec Corporation
Brand: BRAMEC®
Part #: 382234
MPN: 13118
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Dimensions | : | 14.5" x 10.75" x 2.13" |
| Finish | : | Galvanized |
| Gauge | : | 24 ga |
| Material Standard | : | UPS, SBCCI & BOCA listed |
| Material | : | Galvanized Steel |
| Model | : | 13118 |
| Size | : | 10-1/4" x 14-1/2" (Base) |
| Temperature Rating | : | 180 °F (Continuous) |

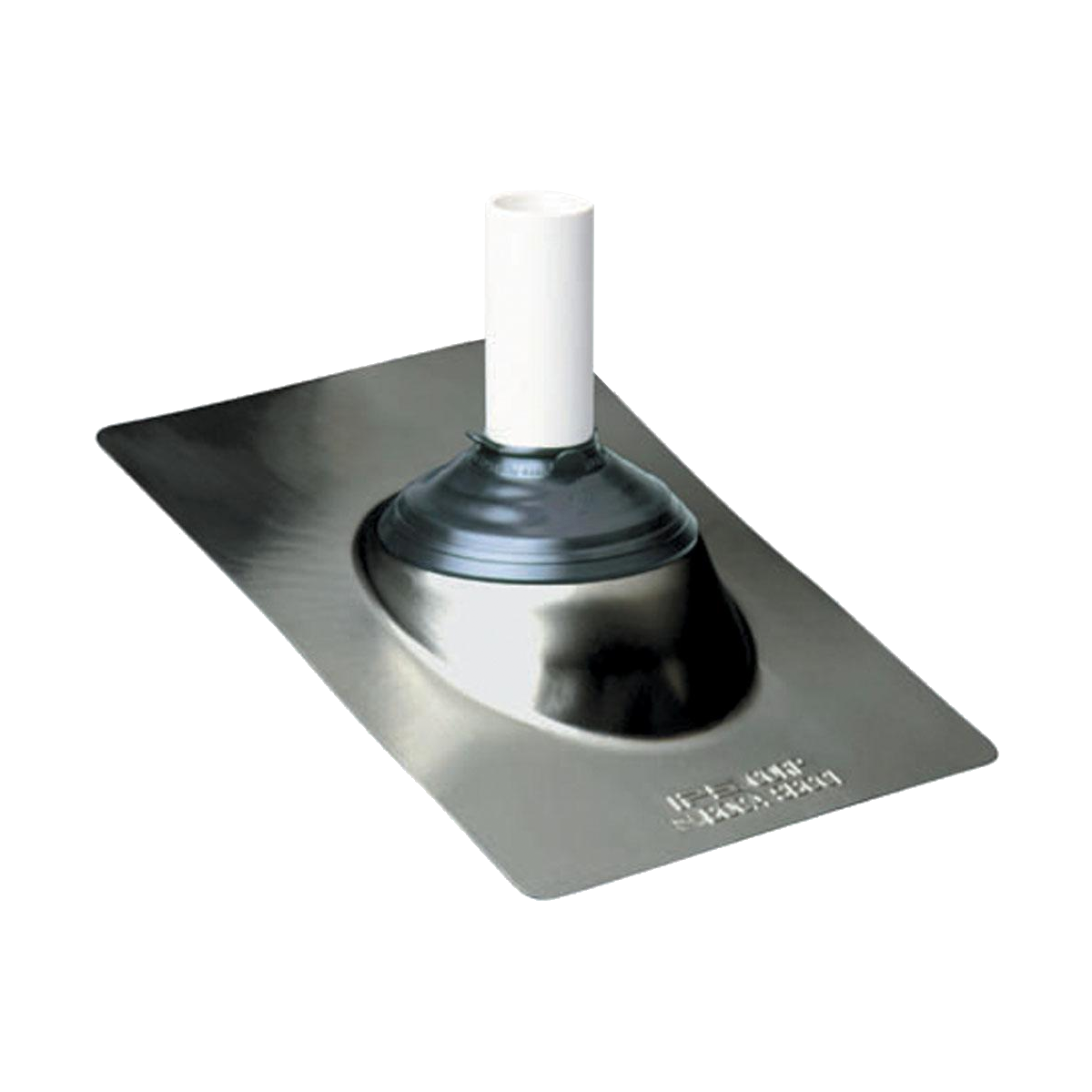

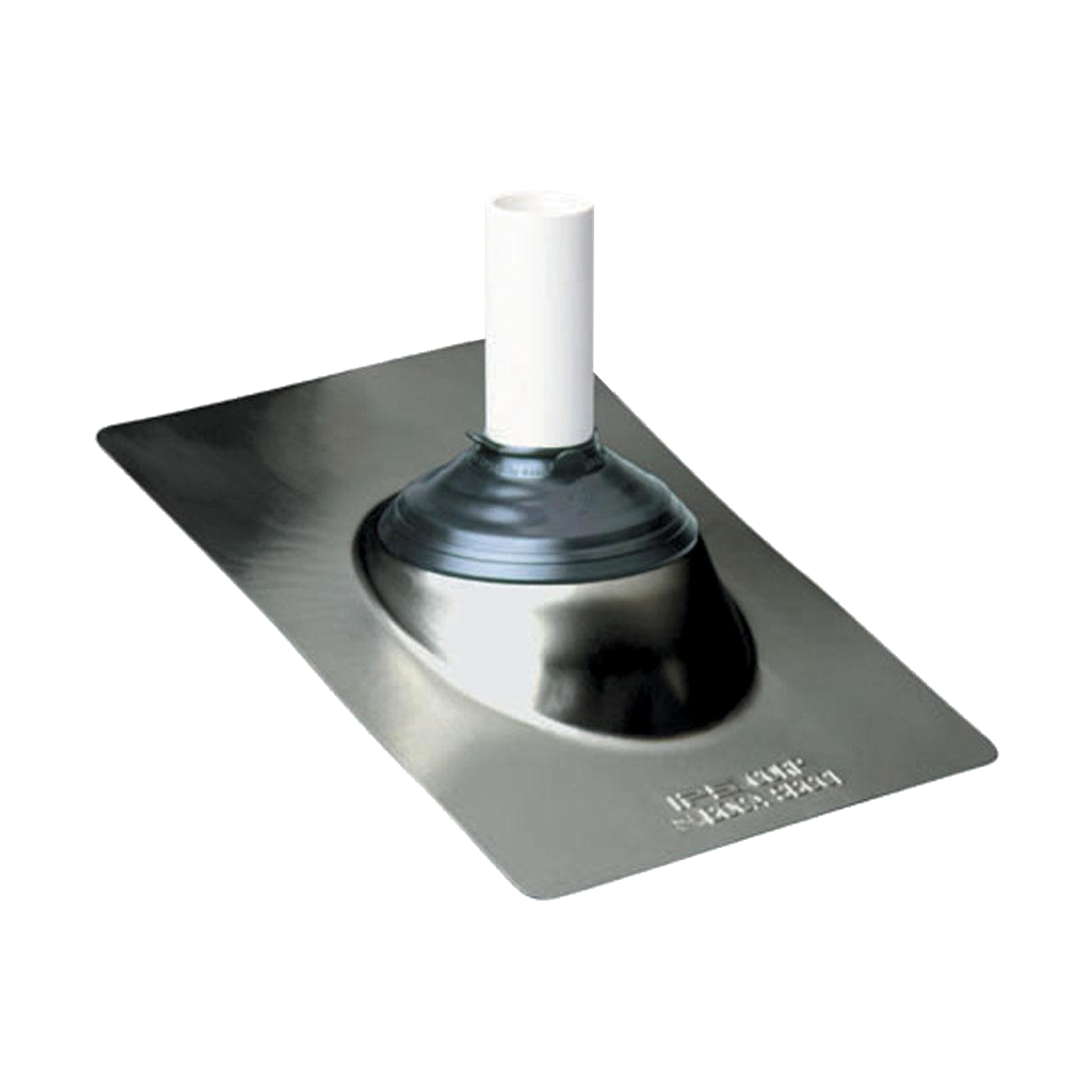

This multi-size roof flashing features a galvanized steel base and is designed for vent pipes ranging from 1-1/2 inches to 3 inches. It is usable up to a 21/12 roof pitch for 1-1/2" and 2" pipe, and up to 14/12 for 3" pipe. The flashing has been tested for ultraviolet, ozone, and weather resistance, and its elastomer collar is heat tested to 180°F. Approved for Type B installations.
Bramec Galvanized Base Roof Flashing, 10-1/4" x 14-1/2" (Base) Size, Galvanized, Galvanized Steel, 24 Ga, 180 °F (Continuous), UPS, SBCCI & BOCA Listed
- Accommodates multiple vent pipe sizes from 1-1/2" to 3".
- Features a durable 24-gauge galvanized steel base (10-1/4" x 14-1/2").
- Elastomer collar provides a reliable seal and is heat tested to 180°F.
- Tested for resistance to UV, ozone, and weathering.
- Suitable for various roof pitches up to 21/12.
- Approved for Type B vent installations.
- Listed by UPS, SBCCI, and BOCA for code compliance.
