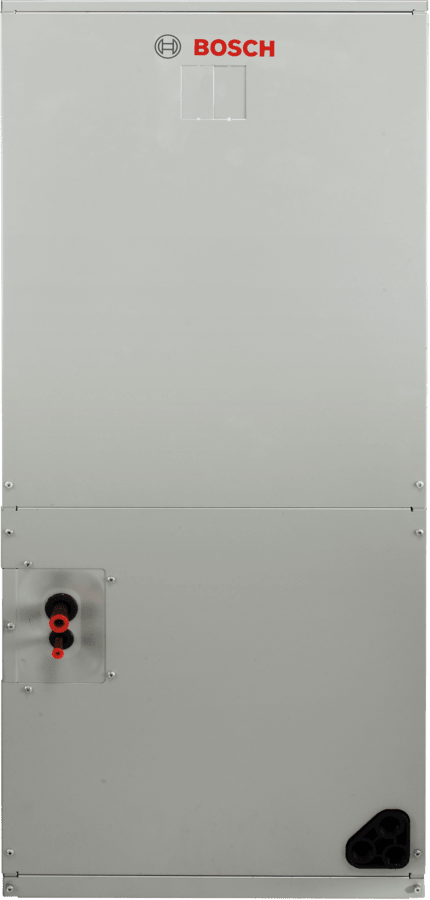

Bosch IDS 2.0 BVA BVA-36WN1-M20 Air Handler, 3 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, Multi-Position, 1,150 CFM, 820 CFM, 18" x 20" x 1" Filter Size
Bosch IDS 2.0 BVA BVA-36WN1-M20 Air Handler, 3 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, Multi-Position, 1,150 CFM, 820 CFM, 18" x 20" x 1" Filter Size
| Amperage Rating | : | 4.1 A |
| BTU Rating | : | 36,000 BTU/hr |
| CFM Rating | : | 1,150 CFM, 820 CFM |
| Configuration | : | Multi-Position (Upflow/Downflow/Horizontal Left/Right) |
| Connection Size | : | 3/8" (Liquid), 3/4" (Suction), 3/4" (Drain) |
| Connection Type | : | Sweat/Braze |
| Cooling Capacity | : | 34,600 BTU/hr |
| Dimensions | : | 46-1/2" H x 19-5/8" W x 21-5/8" D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 12.5 EER (Paired With BOVA-36HDN1-M20G) |
| Filter Size | : | 18" x 20" x 1" |
| Finish | : | Painted Galvanized Steel |
| Flow Rate | : | 1,150/820 CFM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/2 HP |
| Heating Capacity | : | 5-20 kW (Field Installed Electric Heat Kits) |
| Liquid Line Size | : | 3/8 " |
| Material | : | Galvanized Steel (Cabinet), Aluminum (Coil) |
| Model | : | BVA-36WN1-M20 |
| Motor Type | : | ECM (Two Stage) |
| Mounting Type | : | Multi-Position |
| Nominal Capacity | : | 3 Tons |
| Number of Stages | : | 2 (Blower) |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 20.5 SEER |
| Series | : | IDS 2.0 BVA |
| Sound Level | : | 58 to 65 dBA |
| Suction Line Size | : | 3/4 " |
| Temperature Rating | : | -4 to 125 deg F |
| Voltage Rating | : | 208/230 V |

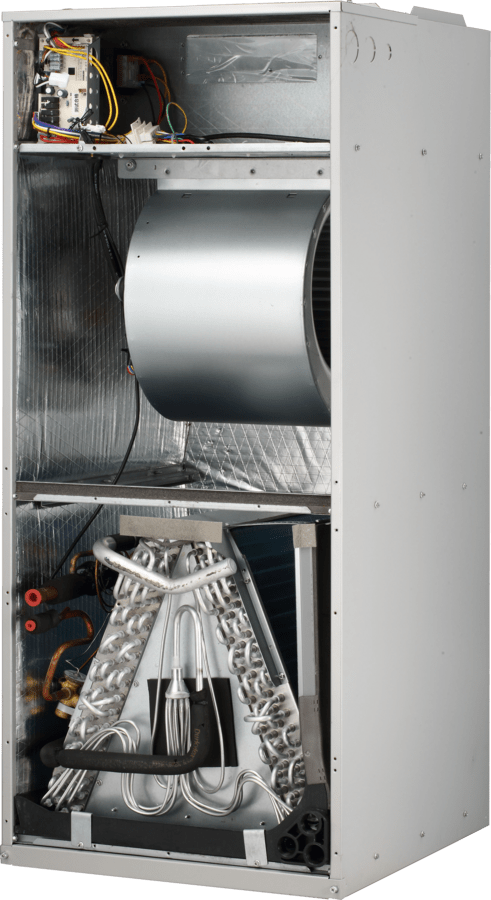

Part of the Bosch Inverter Ducted Split (IDS) 2.0 system, the BVA-36WN1-M20 air handler contributes to efficient comfort by enabling the system to adjust capacity rather than using simple on/off cycles. This unit features a two-stage ECM blower motor for enhanced humidity control and energy savings, delivering consistent temperatures. It is designed for multi-position installation (upflow, downflow, horizontal left/right) and includes features for durability and ease of maintenance.The cabinet is constructed from painted galvanized steel with foil-faced insulation to reduce energy loss. It incorporates an all-aluminum A-coil for better heat transfer and corrosion resistance compared to traditional copper coils. The unit is compatible with most standard 24 VAC heat pump thermostats and can accommodate field-installed electric heat kits for supplemental heating.
Bosch Air Handler, Model: IDS 2.0 BVA, 3 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, Multi-Position, 1,150 CFM, 820 CFM, 18" x 20" x 1" Filter Size, ECM (Two Stage), 1/2 HP, 2 (Blower) Stages, Galvanized Steel (Cabinet), Aluminum (Coil), 46-1/2" H x 19-5/8" W x 21-5/8" D, Sweat/Braze Connection Type, 3/8" (Liquid), 3/4" (Suction), 3/4" (Drain) Connection Size, 208/230 V, 1 Phase, 34,600 BTU/hr Cooling Capacity, 36,000 BTU/hr, 12.5 EER (Paired With BOVA-36HDN1-M20G), 5-20 kW (Field Installed Electric Heat Kits) Heating Capacity, Domestic, 60 Hz, 15 A Fuse Rating, 4.1 A, Painted Galvanized Steel
- Multi-position design allows for upflow, downflow, horizontal left, or horizontal right installation.
- Features a two-stage ECM blower motor for enhanced comfort, humidity control, and energy efficiency.
- Includes a durable, corrosion-resistant all-aluminum A-coil for efficient heat transfer.
- Painted galvanized steel cabinet with foil-faced insulation ensures durability and minimizes energy loss.
- Accommodates field-installed electric heat kits (5-20 kW) for supplemental heating needs.
- Compatible with most 24 VAC heat pump thermostats, including the Bosch BCC family.
- Covered by a 10-year residential limited warranty (registration and conditions may apply).
