Bosch 7-738-005-092 (Flow Center), UPS26-99FC (Pump Component) Flow Center, 1/6 HP, Flange Mount (Pump), Cast Iron (Pump Housing), Pes+30% GF (Impeller), Composite (Valves), 145 PSI (Max System), 0-33 GPM, 60 Hz
Bosch 7-738-005-092 (Flow Center), UPS26-99FC (Pump Component) Flow Center, 1/6 HP, Flange Mount (Pump), Cast Iron (Pump Housing), Pes+30% GF (Impeller), Composite (Valves), 145 PSI (Max System), 0-33 GPM, 60 Hz
| Flow Rate | : | 0-33 GPM |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 HP |
| Material | : | Cast Iron (Pump Housing), PES+30% GF (Impeller), Composite (Valves) |
| Model | : | 7-738-005-092 (Flow Center), UPS26-99FC (Pump Component) |
| Mounting Type | : | Flange Mount (Pump) |
| Pressure Rating | : | 145 PSI (Max System) |

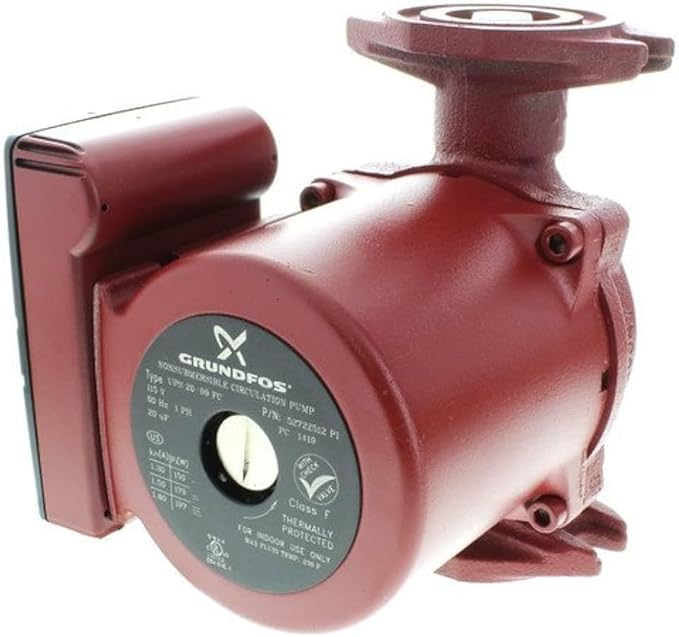

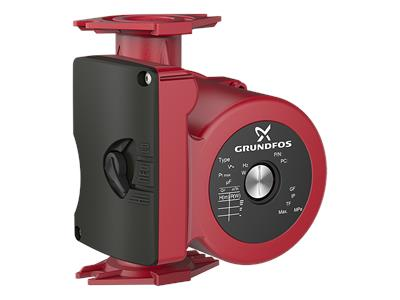

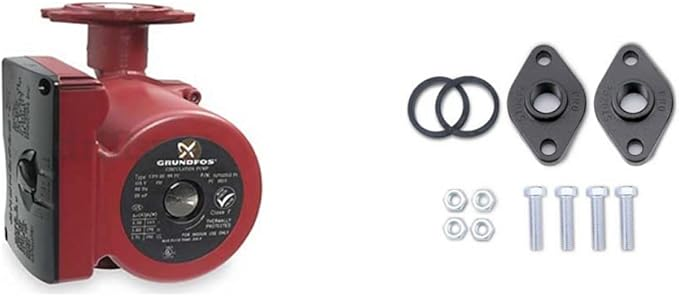

| Pump Specifications | : | Grundfos UPS26-99FC, 3-Speed, Flange Connection, Cast Iron Housing, Composite Impeller, Built-in Flow Check |
| Suitable For Use With | : | Select Bosch/Florida Heat Pump Models; Geothermal Flow Centers; Ground-Source and Water-Source Heat Pumps; Hot and Chilled Water Systems; Closed Loop Systems; Hydronic Heating Applications |
This Bosch flow center integrates two reliable Grundfos UPS26-99FC circulator pumps for efficient fluid management in geothermal systems. It features durable composite valves and offers versatile 3-speed pump operation to match application requirements. Designed primarily for use with select Bosch and Florida Heat Pump geothermal models, this unit facilitates effective heat transfer.The included Grundfos pumps are well-suited for closed-loop configurations, including ground-source, water-source, and hot/chilled water systems. Each 1/6 HP pump delivers a flow rate up to 33 GPM and includes a built-in flow check, simplifying installation and ensuring proper system operation. Their cast iron construction provides durability for long-term performance.
Bosch Flow Center, 1/6 HP, Flange Mount (Pump), Cast Iron (Pump Housing), Pes+30% GF (Impeller), Composite (Valves), 145 PSI (Max System), 0-33 GPM, 60 Hz
- Features two Grundfos UPS26-99FC 3-speed circulator pumps for adaptable performance.
- Includes durable composite valves for reliable flow control.
- Integrated Grundfos pumps feature built-in flow checks to simplify installation.
- Versatile 3-speed pump operation (Low/Med/High) allows matching flow to system needs.
- Suitable for various closed-loop systems, including geothermal, ground/water-source heat pumps, and hydronic heating.
- Pump component is C UL US Listed for safety compliance.
- Backed by a 10-year manufacturer warranty on the flow center assembly.
