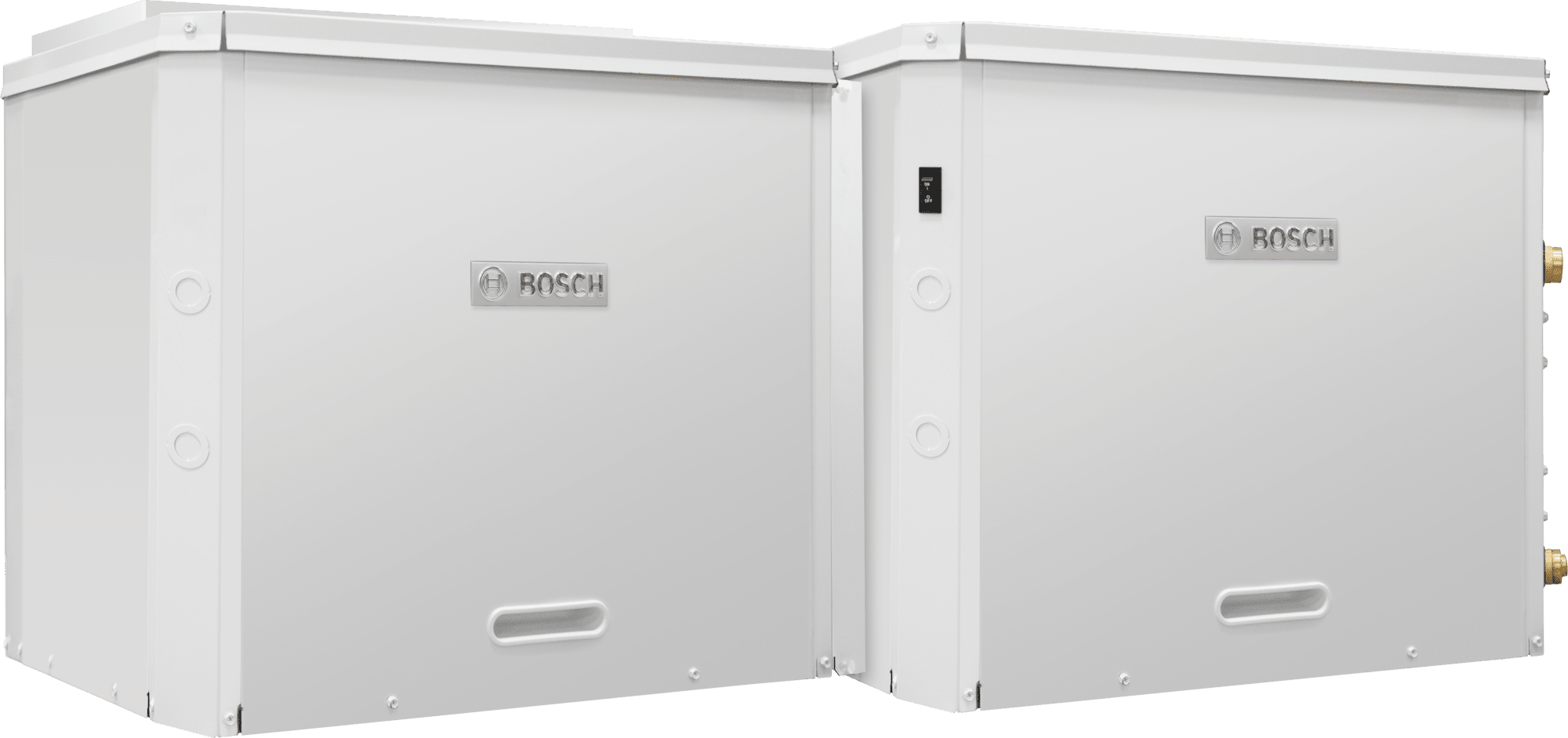

Bosch Greensource CDi Series SM Split SM036-1CSC-FXXXXB-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 3 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 14.05-27.65 EER, 36,000 BTU/hr (Nominal), FPT (Water)
Bosch Greensource CDi Series SM Split SM036-1CSC-FXXXXB-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 3 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 14.05-27.65 EER, 36,000 BTU/hr (Nominal), FPT (Water)
| Amperage Rating | : | 15.3 A (RLA), 19.1 A (MCA) |
| BTU Cooling Rating | : | 36,000 Btu/hr |
| BTU Rating | : | 36,000 BTU/hr |
| Color | : | White |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Split System, Condensing Unit |
| Connection Type | : | FPT (Water) |
| Dehumidification | : | Active Supported, Passive Supported |
| Dimensions | : | 21-1/2" H x 24" W x 27-2/5" D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 14.05-27.65 EER |
| Finish | : | Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| Liquid Line Size | : | 3/8 " |
| Material | : | Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil) |
| Model Number | : | 7-735 |
| Model | : | SM036-1CSC-FXXXXB-XHGEXXXXDXXXXXXXXXXSBA |
| Mounting Type | : | Floor Mount (Requires Support) |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource CDi Series SM Split |
| Sound Level | : | 52 dBA |
| Suction Line Size | : | 3/4", 7/8" (Depending On Line Set Length) |
| Temperature Rating | : | 20-120 °F (Entering Water, With Antifreeze), 45-95 °F (Entering Air) |
| Tonnage | : | 3 tons |
| Voltage Rating | : | 208/230 V |
This Bosch Greensource CDi Series SM Split Condensing Unit offers an energy-efficient geothermal comfort solution for residential applications. As the condensing section of a split system, its versatile and compact design is suitable for replacement, relocation, or new construction projects when paired with a compatible Bosch air handler.Engineered for high performance and reliability, this 3-ton unit features a two-stage scroll compressor for enhanced comfort control and efficiency, achieving ratings up to 27.65 EER (part load, Ground Water). Quiet operation is ensured through closed-cell foam insulation and a floating base pan design, reaching sound levels as low as 52 dB. This model includes a durable cupro-nickel coaxial heat exchanger, recommended for applications with moderate scale formation potential or brackish water, and a factory-installed desuperheater to supplement domestic hot water heating.
Bosch Condensing Unit, Model: Greensource CDi Series SM Split, 3 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 14.05-27.65 EER, 36,000 BTU/hr (Nominal), FPT (Water), 3/8 " Liquid Line Size, 3/4", 7/8" (Depending On Line Set Length) Suction Line Size, 1 Phase, Two-Stage Scroll, Active Supported, Passive Supported Dehumidification, Split System, Condensing Unit, Floor Mount (Requires Support), ≥52 dBA, Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil), 21-1/2" H x 24" W x 27-2/5" D Dimensions, White, Pre-Painted, Domestic Origin, 60 Hz, 30 A Fuse Rating, 15.3 A (RLA), 19.1 A (MCA) Amperage Rating, 20-120 °F (Entering Water, With Antifreeze), 45-95 °F (Entering Air)
- Two-stage scroll compressor delivers high efficiency and enhanced comfort control.
- Achieves high efficiency ratings up to 27.65 EER (part load, Ground Water).
- Engineered for quiet operation (as low as 52 dB) with closed-cell foam insulation and a floating base pan.
- Features a durable cupro-nickel coaxial heat exchanger suitable for various water conditions.
- Includes a factory-installed desuperheater for domestic hot water pre-heating.
- Compact design simplifies installation in replacement, relocation, or new construction projects.
- Covered by a 10-year limited parts and labor allowance warranty.
- ENERGY STAR certified for ground water and ground loop applications.
