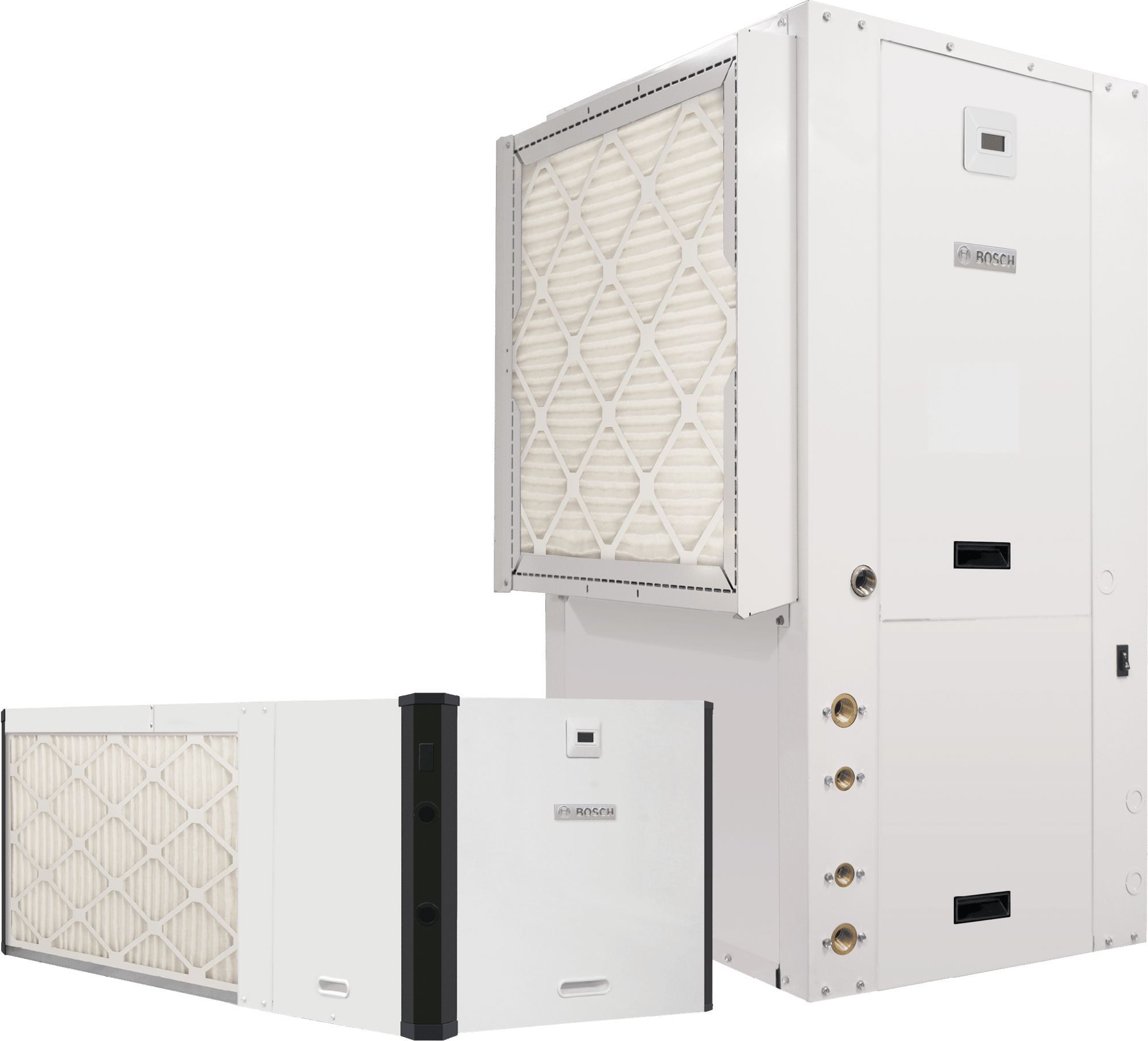

Bosch Greensource SM Rev A/B SM024-1VTC-FRTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase
Bosch Greensource SM Rev A/B SM024-1VTC-FRTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase
| Amperage Rating | : | 2.8 A (FLA, Fan), 11.7 A (RLA, Compressor), 17.4 A (MCA) |
| BTU Rating | : | 24,000 BTU/hr |
| Blower Size | : | 9" Diam x 7" W |
| CFM Rating | : | 800 CFM |
| Coil Rating | : | 2 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Left Return, Desuperheater |
| Connection Type | : | 3/4" FPT (Non-Swivel) |
| Dimensions | : | 44-3/5" H x 24" W x 27-2/5" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP) |
| Filter Size | : | 24" L x 24" H x 2" D |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/3 HP (Fan Motor) |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model | : | SM024-1VTC-FRTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Temperature Rating | : | 50-110 °F (Entering Water) |
| Tonnage | : | 2 tons |
| Voltage Rating | : | 208/230 V |
This premium Bosch Greensource geothermal heat pump offers high-efficiency heating and cooling by leveraging stable underground temperatures. Engineered for comfort and cost savings, it features a reliable scroll compressor and an ECM constant airflow motor for consistent performance. An integrated desuperheater provides supplemental domestic hot water heating, further reducing energy consumption.Designed with contractors in mind, the unit boasts quiet operation (as low as 52 dBA) due to closed-cell foam insulation and a unique floating base pan. It includes a durable tin-plated evaporator coil, a stainless steel drain pan to promote better indoor air quality, and an easy-to-read LCD for quick diagnostics. Front access to major components simplifies serviceability, and the unit is backed by a comprehensive warranty.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase, 44-3/5" H x 24" W x 27-2/5" D Dimensions, 800 CFM, ECM Constant Airflow, Scroll, 9" Diam x 7" W Blower Size, 1/3 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 24" L x 24" H x 2" D Filter Size, ≥52 dBA, 1 Stage, 24,000 BTU/hr, 2.8 A (FLA, Fan), 11.7 A (RLA, Compressor), 17.4 A (MCA), Domestic, 464.7 PSI (Max Water Working), 50-110 °F (Entering Water), 60 Hz, 25 A Fuse Rating
- Achieves high efficiency ratings, including up to 26.5 EER (GWHP) and 4.9 COP (GWHP).
- Operates quietly with sound levels as low as 52 dBA using closed-cell foam insulation and a floating base pan.
- Features an ECM constant airflow motor for efficient and consistent comfort.
- Utilizes a reliable single-stage scroll compressor.
- Includes an integrated desuperheater for supplemental domestic hot water heating.
- Equipped with a durable tin-plated evaporator coil and a stainless steel drain pan for reliability and IAQ.
- Designed for easy service with front access to major components and an LCD diagnostic display.
- ENERGY STAR certified for ground water and ground loop applications.
- Backed by a 10-year limited parts and labor allowance warranty.
