Bosch Greensource SM Rev A/B SM024-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase
Bosch Greensource SM Rev A/B SM024-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase
| Amperage Rating | : | 2.8 A (FLA, Fan), 11.7 A (RLA, Compressor), 17.4 A (MCA) |
| BTU Rating | : | 24,000 BTU/hr |
| Blower Size | : | 9" Diam x 7" W |
| CFM Rating | : | 800 CFM |
| Coil Rating | : | 2 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Left Return, Desuperheater |
| Connection Type | : | 3/4" FPT (Non-Swivel) |
| Dimensions | : | 44-3/5" H x 24" W x 27-2/5" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP) |
| Filter Size | : | 24" L x 24" H x 2" D |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/3 HP (Fan Motor) |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model | : | SM024-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Tonnage | : | 2 tons |
| Voltage Rating | : | 208/230 V |

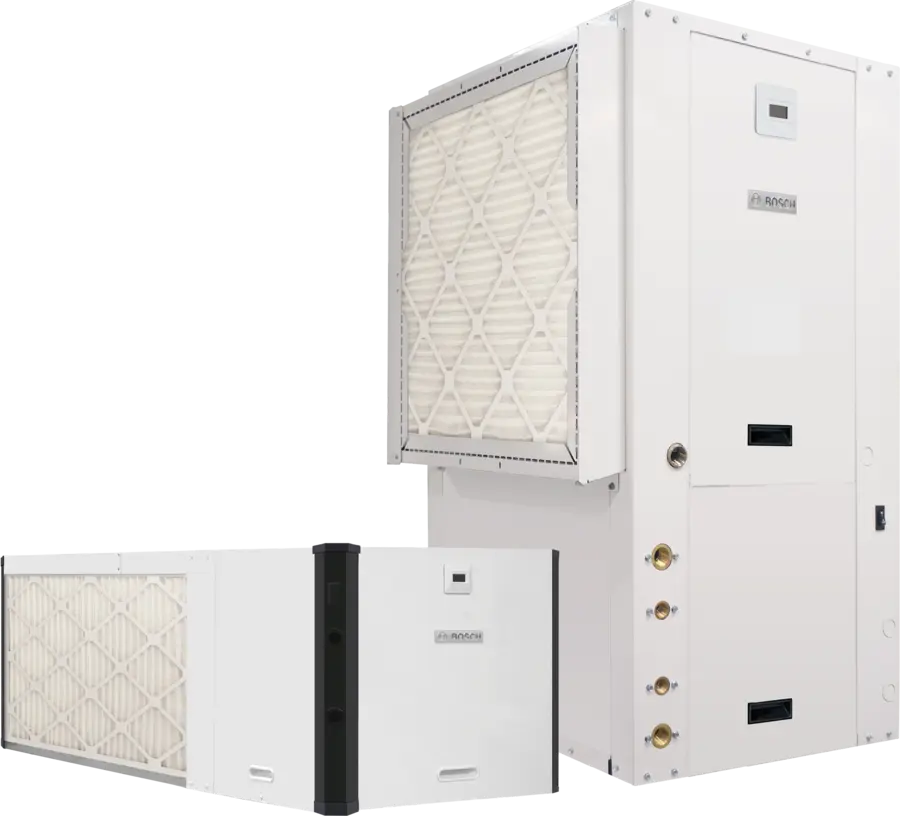

The Bosch Greensource SM Series geothermal heat pump is designed for enhanced serviceability, quiet operation, appealing aesthetics, and high energy efficiency. This vertical upflow unit features a 2-ton capacity, operates on 208/230V single-phase power, and includes a desuperheater for supplemental domestic hot water heating.Engineered for reliability and flexibility, the Greensource SM unit utilizes a durable scroll compressor, a high-efficiency constant torque blower motor, and a tin-plated evaporator coil. The cabinet features white pre-painted sheet metal for a clean look, closed-cell foam insulation, and a floating base pan to minimize noise and vibration. It also offers field configuration options for air discharge and return sides.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase, 44-3/5" H x 24" W x 27-2/5" D Dimensions, 800 CFM, ECM Constant Airflow, Scroll, 9" Diam x 7" W Blower Size, 1/3 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 24" L x 24" H x 2" D Filter Size, ≥52 dBA, 1 Stage, 2.8 A (FLA, Fan), 11.7 A (RLA, Compressor), 17.4 A (MCA), Domestic, 464.7 PSI (Max Water Working), 60 Hz, 25 A Fuse Rating, White, White Pre-Painted
- Features a high-efficiency scroll compressor and constant torque ECM blower motor.
- Includes a desuperheater package for supplemental domestic hot water heating.
- Designed for quiet operation with a floating base pan and closed-cell foam insulation (sound levels as low as 52 dBA).
- Offers flexible installation with field-configurable air discharge (top/side/back) and return (left/right).
- Provides easy maintenance with front access to all major components and an LCD diagnostic display.
- Features durable construction with a white pre-painted cabinet and a tin-plated evaporator coil.
- Backed by a 10-year limited warranty on all parts and labor.
