Bosch Greensource SM Rev A/B SM024-1VTN-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase
Bosch Greensource SM Rev A/B SM024-1VTN-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase
| Amperage Rating | : | 2.8 A (FLA, Fan), 11.7 A (RLA, Compressor), 17.4 A (MCA) |
| BTU Rating | : | 24,000 BTU/hr |
| Blower Size | : | 9" Diam x 7" W |
| CFM Rating | : | 800 CFM |
| Coil Rating | : | 2 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Left Return, Desuperheater |
| Connection Type | : | 3/4" FPT (Non-Swivel) |
| Dimensions | : | 44-3/5" H x 24" W x 27-2/5" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP) |
| Filter Size | : | 24" L x 24" H x 2" D |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/3 HP (Fan Motor) |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model | : | SM024-1VTN-FLTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Temperature Rating | : | 30-110 °F (Entering Fluid Temperature) |
| Tonnage | : | 2 tons |
| Voltage Rating | : | 208/230 V |

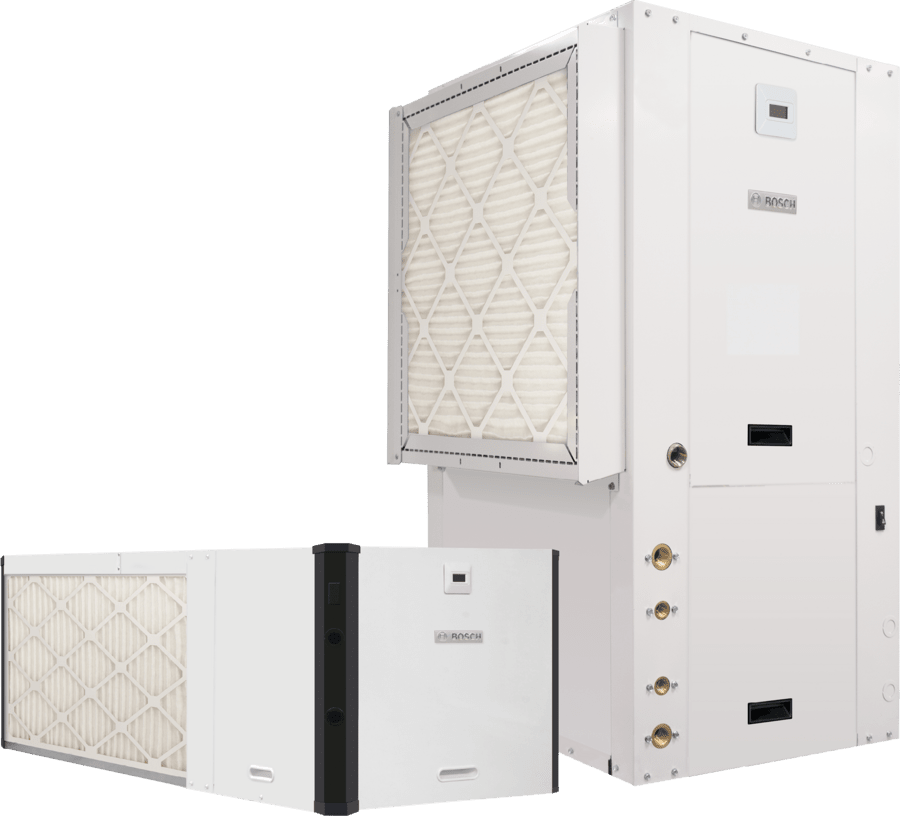

The Bosch SM Model is a premium, high-efficiency residential water source heat pump. This 2-ton unit is designed for reliable performance in geothermal applications, operating on 208/230V single-phase power. It features an ECM constant airflow motor for enhanced comfort and efficiency.This particular model is configured for vertical upflow installation with a left-hand return and includes a durable cupro-nickel (CuNi) heat exchanger, recommended for moderate scale or brackish water conditions. It also features a desuperheater option to supplement domestic hot water heating. The SM series utilizes the Bosch EasyStart tool for simplified service and diagnostics via local Wi-Fi.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 2 Tons, R-410A, Vertical, Upflow, Left Return, Desuperheater, 208/230 V, 17.4 EER (WLHP), 26.5 EER (GWHP), 19.9 EER (GLHP), 3/4" FPT (Non-Swivel) Connection, 1-Phase, 44-3/5" H x 24" W x 27-2/5" D Dimensions, 800 CFM, ECM Constant Airflow, Scroll, 9" Diam x 7" W Blower Size, 1/3 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 24" L x 24" H x 2" D Filter Size, ≥52 dBA, 1 Stage, 24,000 BTU/hr, 2.8 A (FLA, Fan), 11.7 A (RLA, Compressor), 17.4 A (MCA), Domestic, 464.7 PSI (Max Water Working), 30-110 °F (Entering Fluid Temperature), 60 Hz, 25 A Fuse Rating
- Provides 2 tons of efficient heating and cooling capacity for residential geothermal applications.
- Features a durable cupro-nickel (CuNi) water coil suitable for moderate scale or brackish water conditions.
- Includes a desuperheater to help reduce domestic hot water heating costs.
- Equipped with an ECM constant airflow motor for consistent comfort and quiet operation (sound levels as low as 52 dBA).
- Utilizes the Bosch EasyStart local Wi-Fi tool for convenient service and diagnostics.
- ENERGY STAR certified for efficiency in ground water and ground loop applications.
- Vertical upflow configuration with left-hand return and easy-access 2" filter rack (fits 24"x24"x2" filter).
