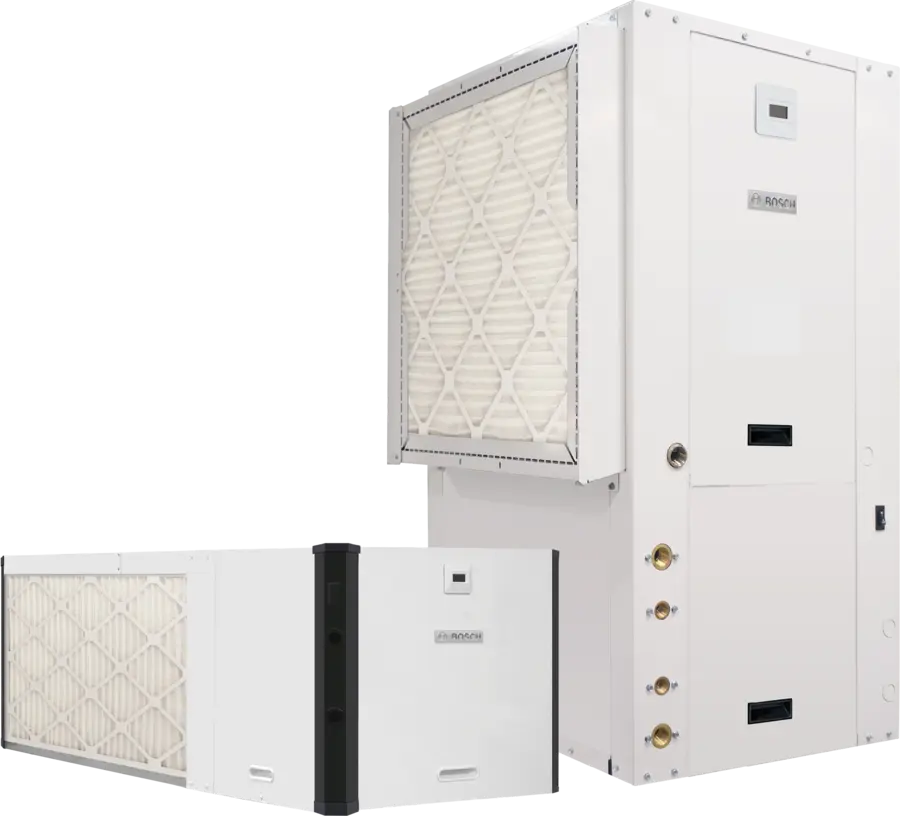

Bosch Greensource SM Rev A/B SM048-1VTC-FRTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 15.95 EER (WLHP), 24.30 EER (GWHP), 18.60 EER (GLHP), 1" FPT (Water) Connection, 1-Phase
Bosch Greensource SM Rev A/B SM048-1VTC-FRTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 15.95 EER (WLHP), 24.30 EER (GWHP), 18.60 EER (GLHP), 1" FPT (Water) Connection, 1-Phase
| Amperage Rating | : | 6.8 A (FLA, Fan), 21.2 A (RLA, Compressor), 33.2 A (MCA) |
| BTU Rating | : | 48,000 BTU/hr |
| Blower Size | : | 11" Diam x 11" W |
| CFM Rating | : | 1,600 CFM |
| Coil Rating | : | 4 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Right Hand |
| Connection Type | : | 1" FPT (Water) |
| Dimensions | : | 54" H x 24-1/2" W x 33-3/10" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 15.95 EER (WLHP), 24.30 EER (GWHP), 18.60 EER (GLHP) |
| Filter Size | : | 16" x 30" x 2" (2) |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 3/4 HP (Fan Motor) |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model | : | SM048-1VTC-FRTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Tonnage | : | 4 tons |
| Voltage Rating | : | 208/230 V |
The Bosch Greensource SM Series geothermal heat pump offers a premium, high-efficiency solution for residential water source applications. This versatile and compact unit is adaptable for replacement, relocation, or new construction projects, delivering energy and cost-efficient comfort.Equipped with a two-stage scroll compressor and a variable speed ECM constant CFM motor, the SM Series provides superior comfort, efficiency, and quiet operation. It is ENERGY STAR certified for ground water and ground loop applications, potentially saving homeowners significantly on utility bills. Features like the stainless steel drain pan and included MERV 8 filter support improved indoor air quality.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 4 Tons, R-410A, Vertical, Upflow, Right Hand, 208/230 V, 15.95 EER (WLHP), 24.30 EER (GWHP), 18.60 EER (GLHP), 1" FPT (Water) Connection, 1-Phase, 54" H x 24-1/2" W x 33-3/10" D Dimensions, 1,600 CFM, ECM Constant Airflow, Scroll, 11" Diam x 11" W Blower Size, 3/4 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 16" x 30" x 2" (2) Filter Size, ≥52 dBA, 2 Stage, 48,000 BTU/hr, 6.8 A (FLA, Fan), 21.2 A (RLA, Compressor), 33.2 A (MCA), Domestic, 464.7 PSI (Max Water Working), 60 Hz, 50 A Fuse Rating, White
- Features a high-efficiency two-stage scroll compressor for optimized comfort and energy savings.
- Includes a variable speed ECM constant CFM motor for consistent airflow and quiet operation.
- Engineered for quiet performance with sound levels as low as 52 dBA, featuring closed-cell foam insulation.
- ENERGY STAR certified for ground water and ground loop applications.
- Equipped with a durable copper water coil.
- Includes a desuperheater package for supplemental domestic hot water heating.
- Durable construction includes a stainless steel drain pan and pre-painted sheet metal cabinet.
- Designed for vertical upflow installation with right-hand return air configuration.
- Features an easy-access filter rack with a 2-inch MERV 8 filter included.
- Covered by a 10-year limited warranty on parts and labor.
