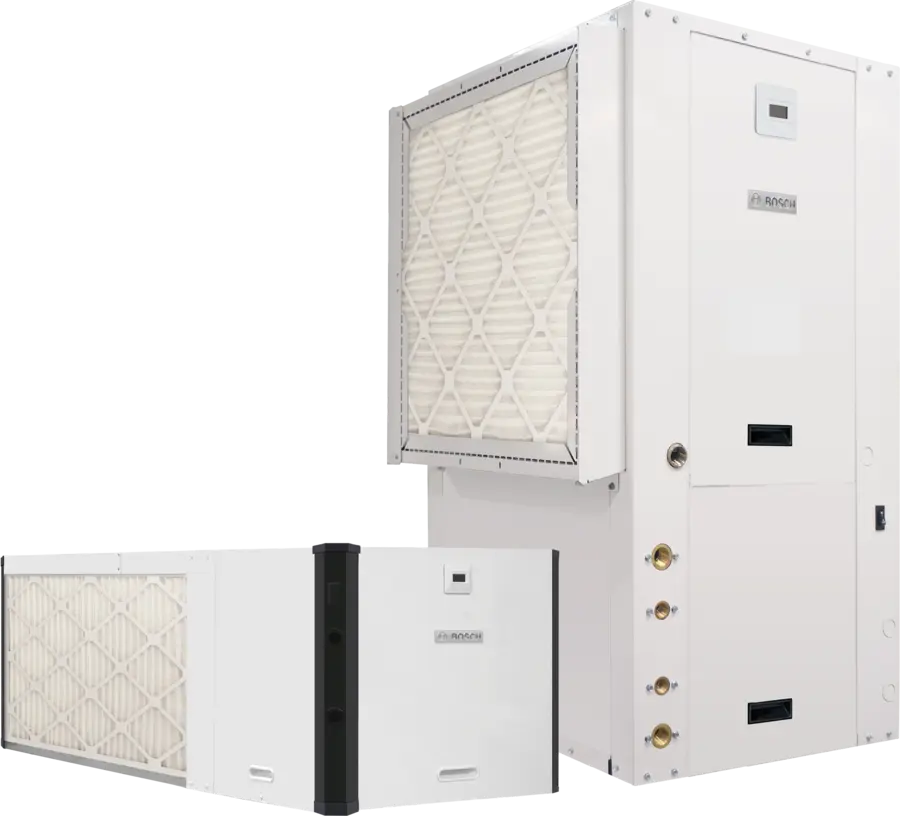

Bosch Greensource SM Rev A/B SM060-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 5 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 15.35 EER (WLHP), 24 EER (GWHP), 18.6 EER (GLHP), 1" FPT Connection, 1-Phase
Bosch Greensource SM Rev A/B SM060-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 5 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 15.35 EER (WLHP), 24 EER (GWHP), 18.6 EER (GLHP), 1" FPT Connection, 1-Phase
| Amperage Rating | : | 5.4 A (RLA, Fan), 21.3 A (RLA, Compressor), 42.7 A (MCA) |
| BTU Rating | : | 60,000 BTU/hr |
| Blower Size | : | 11" Diam x 11" W |
| CFM Rating | : | 2,000 CFM |
| Coil Rating | : | 5 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Left Hand |
| Connection Type | : | 1" FPT |
| Dimensions | : | 60-1/10" H x 26" W x 33-3/10" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 15.35 EER (WLHP), 24 EER (GWHP), 18.6 EER (GLHP) |
| Filter Size | : | 20" x 30" x 2" (2) |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1 HP (Fan Motor) |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model | : | SM060-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Tonnage | : | 5 tons |
| Voltage Rating | : | 208/230 V |
The Bosch Greensource CDi Series SM Vertical Geothermal Heat Pump (Model SM060) provides efficient heating and cooling for residential and commercial applications, suitable for both retrofits and new construction. This 5-ton, 208/230V single-phase unit features a vertical upflow, left-hand configuration. It utilizes a two-stage scroll compressor and a variable-speed ECM constant airflow motor to deliver optimized comfort and energy savings, achieving high EER ratings and ENERGY STAR certification for ground water and ground loop applications.Constructed with a durable, pre-painted galvanized steel cabinet and featuring close-cell foam insulation, this unit ensures quiet operation with sound levels as low as 52 dB. It includes a standard copper water coil (cupro-nickel optional) and a desuperheater for supplemental domestic hot water heating. The integrated Heat Pump Control (HPC) board facilitates easy diagnostics and monitoring via the Bosch EasyStart app.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 5 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 15.35 EER (WLHP), 24 EER (GWHP), 18.6 EER (GLHP), 1" FPT Connection, 1-Phase, 60-1/10" H x 26" W x 33-3/10" D Dimensions, 2,000 CFM, ECM Constant Airflow, Scroll, 11" Diam x 11" W Blower Size, 1 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 20" x 30" x 2" (2) Filter Size, ≥52 dBA, 2 Stage, 60,000 BTU/hr, 5.4 A (RLA, Fan), 21.3 A (RLA, Compressor), 42.7 A (MCA), Domestic, 464.7 PSI (Max Water Working), 60 Hz, 60 A Fuse Rating, White
- Features a two-stage scroll compressor for enhanced efficiency and comfort.
- Equipped with a variable speed ECM constant airflow motor for quiet, consistent airflow.
- Achieves quiet operation with sound levels as low as 52 dB.
- Includes a desuperheater (Heat Recovery Package) to assist with domestic hot water heating.
- Constructed with a durable galvanized steel cabinet and stainless steel drain pan.
- Comes standard with a copper water coil; cupro-nickel coil optional for varying water conditions.
- ENERGY STAR certified for ground water and ground loop applications.
- Features an integrated Heat Pump Control (HPC) board compatible with the Bosch EasyStart app for simplified diagnostics.
- Covered by a 10-year limited warranty on parts and labor.
