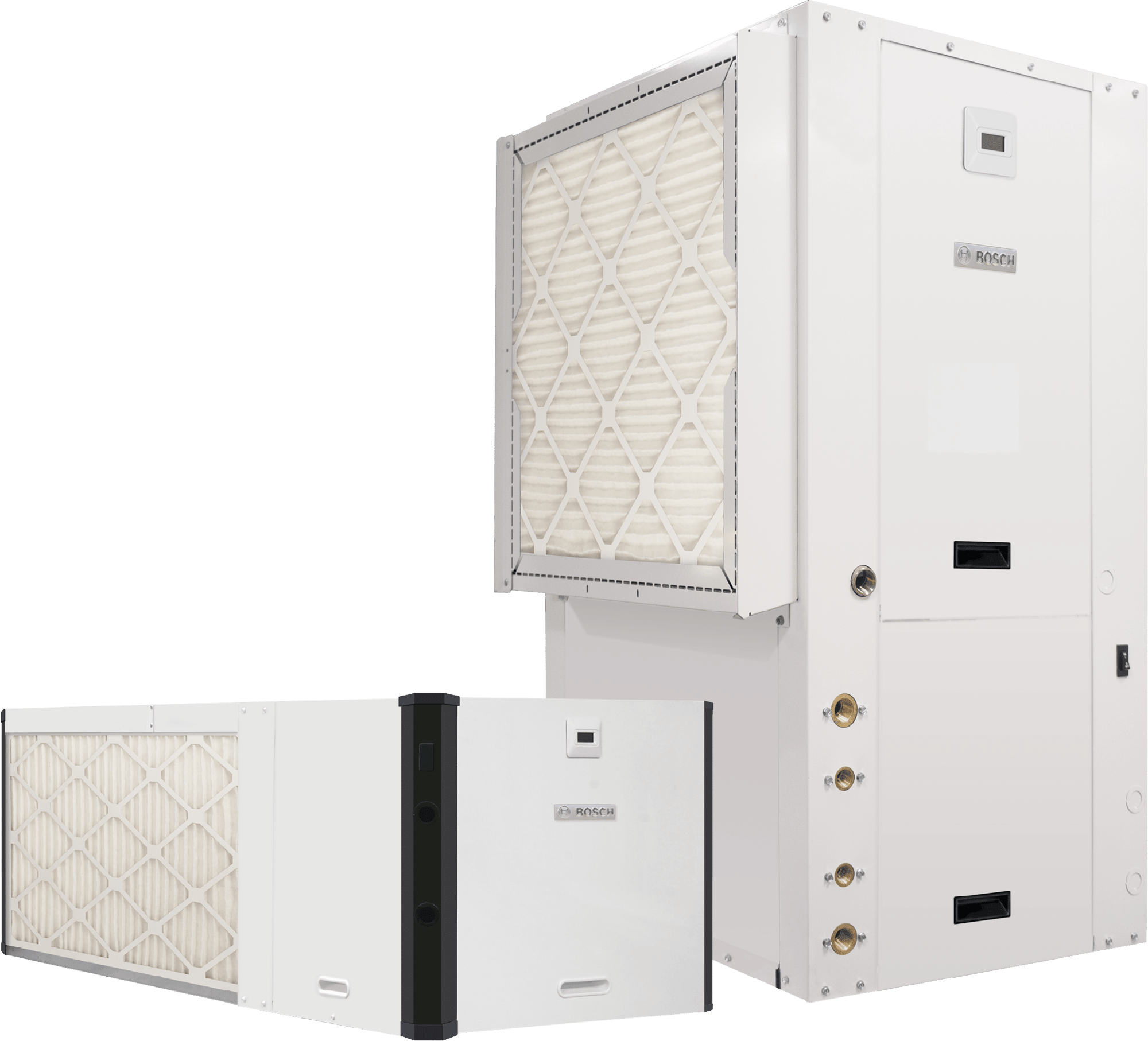

Bosch Greensource SM Rev A/B SM036-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 19 EER (WLHP), 28 EER (GWHP), 22 EER (GLHP), FPT, Swivel Connection, 1-Phase
Bosch Greensource SM Rev A/B SM036-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 19 EER (WLHP), 28 EER (GWHP), 22 EER (GLHP), FPT, Swivel Connection, 1-Phase
| Amperage Rating | : | 6.8 A (FLA, Fan), 15.6 A (RLA, Compressor), 26.3 A (MCA) |
| BTU Rating | : | 36,000 BTU/hr |
| Blower Size | : | 11" Diam x 11" W |
| CFM Rating | : | 1,200 CFM |
| Coil Rating | : | 3 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Left Hand |
| Connection Type | : | FPT, Swivel |
| Dimensions | : | 52-3/5" H x 25-4/5" W x 33-2/5" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 19 EER (WLHP), 28 EER (GWHP), 22 EER (GLHP) |
| Filter Size | : | 16" x 30" x 2" (2) |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HP Rating | : | 3/4 HP (Fan Motor) |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model | : | SM036-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Tonnage | : | 3 tons |
| Voltage Rating | : | 208/230 V |
Enjoy maximum comfort with this high-efficiency, two stage water-to-air heat pump from Bosch. The SM Model is a premium, high efficiency, geothermal unit designed for residential and commercial use, available in sizes of 2 to 6 tons.ENERGY STAR certified for ground water and ground loop applications, the SM boasts a two-stage scroll compressor and ECM constant torque motor for superior comfort and efficiency. This unit utilizes constant underground temperatures to provide heating and cooling with reduced environmental impact and potentially lower utility costs.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 3 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 19 EER (WLHP), 28 EER (GWHP), 22 EER (GLHP), FPT, Swivel Connection, 1-Phase, 52-3/5" H x 25-4/5" W x 33-2/5" D Dimensions, 1,200 CFM, ECM Constant Airflow, Scroll, 11" Diam x 11" W Blower Size, 3/4 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 16" x 30" x 2" (2) Filter Size, ≥52 dBA, 2 Stage, 36,000 BTU/hr, 6.8 A (FLA, Fan), 15.6 A (RLA, Compressor), 26.3 A (MCA), Domestic, 464.7 PSI (Max Water Working), 60 Hz, 40 A Fuse Rating, White
- Achieves high efficiency with ratings up to 30 EER (part load GLHP) and 4.7 COP (part load GLHP).
- Features a two-stage scroll compressor and ECM constant torque motor for enhanced comfort and reduced energy use.
- Includes a desuperheater for supplemental domestic hot water heating.
- Operates quietly with sound levels as low as 52 dB, aided by closed-cell foam insulation.
- Equipped with a stainless steel drain pan to improve indoor air quality by inhibiting microbial growth.
- ENERGY STAR certified for ground water and ground loop applications.
- Covered by a 10-year limited parts and labor allowance warranty.
