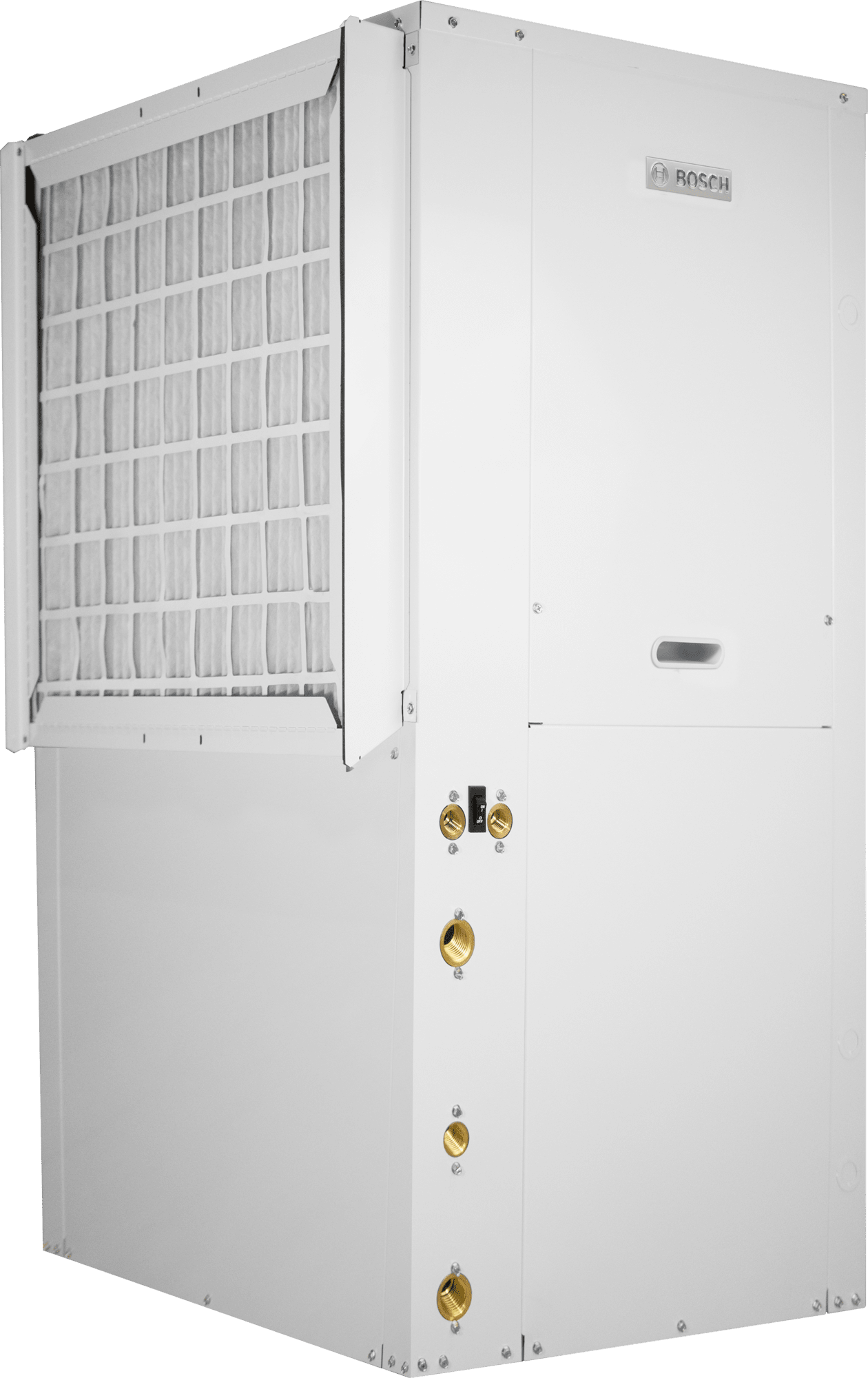

Bosch Greensource Si Series CE CE061-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 5 Tons, R-410A, Vertical, Left Return, 208/230 V, 14.00 EER (WLHP), 20.50 EER (GWHP), 16.10 EER (GLHP), 1" FPT/Swivel (Water) Connection, 1-Phase
Bosch Greensource Si Series CE CE061-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 5 Tons, R-410A, Vertical, Left Return, 208/230 V, 14.00 EER (WLHP), 20.50 EER (GWHP), 16.10 EER (GLHP), 1" FPT/Swivel (Water) Connection, 1-Phase
| Amperage Rating | : | 6.8 A (FLA), 40.4 A (MCA) |
| BTU Cooling Rating | : | 60,000 Btu/hr |
| BTU Rating | : | 60,000 BTU/hr (Cooling, WLHP) |
| Blower Size | : | 11" Diam x 9" W |
| CFM Rating | : | 2,000 CFM |
| Coil Rating | : | 5 Tons |
| Color | : | White |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Left Return |
| Connection Type | : | 1" FPT/Swivel (Water) |
| Dimensions | : | 51-1/4" H x 26" W x 33-1/4" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 14.00 EER (WLHP), 20.50 EER (GWHP), 16.10 EER (GLHP) |
| Filter Size | : | 24" x 30" x 2" |
| Finish | : | Pre-Painted (Cabinet), Tin Plated (Evaporator Coil) |
| Flow Rate | : | 14 GPM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1 HP (Fan Motor) |
| Material | : | Galvanized Steel (Cabinet), Cupro-Nickel (Water Coil), Tin-Plated Copper (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model Number | : | 7-735 |
| Model | : | CE061-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 139.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource Si Series CE |
| Temperature Rating | : | 50-100 °F (Cooling, Ambient Air), 40-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water) |
| Tonnage | : | 5 tons |
| Voltage Rating | : | 208/230 V |
| Volts | : | 208/230 V |
The Greensource Si Series CE Model geothermal heat pump comes in a horizontal, vertical, or counter-flow configuration in sizes from 2 to 6 tons. This compact, high efficiency packaged solution can individually replace your old system or be used for a new installation.The Bosch Greensource geothermal heat pump requires less energy to produce the equivalent cooling and heating output than other conventional heat pumps on the market. This saves energy and reduces the cost to stay comfortable in your home. You can save up to 65% on your energy bills, and payback on this investment can be as short as 5 to 7 years.
Bosch Water Source Heat Pump, Model: Greensource Si Series CE, 5 Tons, R-410A, Vertical, Left Return, 208/230 V, 14.00 EER (WLHP), 20.50 EER (GWHP), 16.10 EER (GLHP), 1" FPT/Swivel (Water) Connection, 1-Phase, 51-1/4" H x 26" W x 33-1/4" D Dimensions, 2,000 CFM, 14 GPM, ECM Constant Airflow, Scroll, 11" Diam x 9" W Blower Size, 1 HP (Fan Motor), Galvanized Steel (Cabinet), Cupro-Nickel (Water Coil), Tin-Plated Copper (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 24" x 30" x 2" Filter Size, 2 Stage, 60,000 BTU/hr (Cooling, WLHP), 6.8 A (FLA), 40.4 A (MCA), Domestic, 139.7 PSI (Max Water Working), 50-100 °F (Cooling, Ambient Air), 40-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water), 60 Hz, 60 A Fuse Rating
- Features a two-stage scroll compressor and variable-speed ECM motor for efficient comfort control.
- Utilizes environmentally friendly R-410A refrigerant.
- Includes a durable cupro-nickel water coil, suitable for various water conditions including open loop applications.
- Equipped with a Unit Protection Module (UPM) for advanced diagnostics and system protection.
- Designed for quiet operation with a floating compressor pan and dual-density cabinet insulation.
- Comes standard with a 2" MERV 8 filter in a 4-sided rack for improved air filtration.
- Includes an integrated Desuperheater for domestic hot water heat recovery.
- Covered by a 10-year limited parts and labor warranty.
