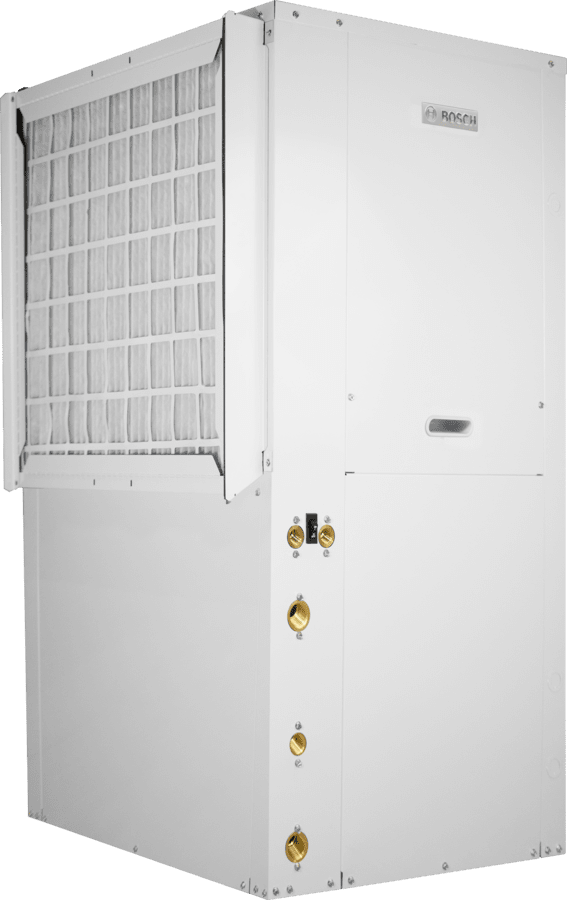

Bosch Greensource Si Series CE CE049-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-410A, Vertical, Right Return, 208/230 V, 13.2 EER (WLHP), 15.5 EER (GLHP), 19.0 EER (GWHP), 1" FPT Swivel (Water) Connection, 1-Phase
Bosch Greensource Si Series CE CE049-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-410A, Vertical, Right Return, 208/230 V, 13.2 EER (WLHP), 15.5 EER (GLHP), 19.0 EER (GWHP), 1" FPT Swivel (Water) Connection, 1-Phase
| Amperage Rating | : | 6.8 A (FLA), 33.3 A (MCA) |
| BTU Cooling Rating | : | 48,000 Btu/hr |
| BTU Rating | : | 48,000 BTU/hr (Cooling, WLHP) |
| Blower Size | : | 10" Diam x 8" W |
| CFM Rating | : | 1,600 CFM |
| Coil Rating | : | 4 Tons |
| Color | : | White |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Right Return |
| Connection Type | : | 1" FPT Swivel (Water) |
| Dimensions | : | 47-1/4" H x 24" W x 32-3/4" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 13.2 EER (WLHP), 15.5 EER (GLHP), 19.0 EER (GWHP) |
| Filter Size | : | 24" x 30" x 1" |
| Finish | : | Pre-Painted (Cabinet), Tin Plated (Evaporator Coil) |
| Flow Rate | : | 12 GPM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 3/4 HP (Fan Motor) |
| Liquid Line (OD) | : | 3/8 in |
| Material | : | Galvanized Steel (Cabinet), Cupro-Nickel (Water Coil), Tin-Plated Copper (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model Number | : | 7-735 |
| Model | : | CE049-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Power Rating | : | 1,500-3,600 W (Cooling, Based On Ewt/Load Conditions), 1,800-3,700 W (Heating, Based On Ewt/Load Conditions) |
| Pressure Rating | : | 139.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource Si Series CE |
| Temperature Rating | : | 50-100 °F (Cooling, Ambient Air), 40-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water) |
| Tonnage | : | 4 tons |
| Voltage Rating | : | 208/230 V |
| Volts | : | 208/230 V |
The Greensource Si Series CE Model geothermal heat pump offers a compact, high-efficiency packaged solution suitable for new installations or replacing existing systems. Utilizing ground source energy, this Bosch heat pump requires less energy than conventional systems to produce equivalent heating and cooling, potentially reducing energy bills significantly.Equipped with advanced diagnostics, Bosch's Unit Protection Module (UPM) aids in troubleshooting and maintaining optimal performance, sending alerts via compatible Bosch thermostats if maintenance is needed. The Greensource unit also features an advanced sound package, incorporating a floating base pan and dual-density cabinet insulation to minimize noise and vibration during operation.
Bosch Water Source Heat Pump, Model: Greensource Si Series CE, 4 Tons, R-410A, Vertical, Right Return, 208/230 V, 13.2 EER (WLHP), 15.5 EER (GLHP), 19.0 EER (GWHP), 1" FPT Swivel (Water) Connection, 1-Phase, 47-1/4" H x 24" W x 32-3/4" D Dimensions, 1,600 CFM, 12 GPM, ECM Constant Airflow, Scroll, 10" Diam x 8" W Blower Size, 3/4 HP (Fan Motor), Galvanized Steel (Cabinet), Cupro-Nickel (Water Coil), Tin-Plated Copper (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 24" x 30" x 1" Filter Size, 2 Stage, 48,000 BTU/hr (Cooling, WLHP), 6.8 A (FLA), 33.3 A (MCA), 1,500-3,600 W (Cooling, Based On Ewt/Load Conditions), 1,800-3,700 W (Heating, Based On Ewt/Load Conditions), Domestic, 139.7 PSI (Max Water Working), 50-100 °F (Cooling, Ambient Air), 40-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water), 60 Hz
- Features a two-stage scroll compressor for enhanced efficiency and comfort.
- Equipped with an ECM constant CFM variable-speed blower motor for optimized airflow.
- Includes a Unit Protection Module (UPM) for advanced diagnostics and system protection.
- Utilizes a durable Cupro-Nickel coaxial heat exchanger, suitable for moderate scale or brackish water conditions.
- Built with a tin-plated evaporator coil for enhanced corrosion resistance.
- Features an advanced sound package including a floating base pan and cabinet insulation for quiet operation.
- Includes an integrated Heat Recovery Package (Desuperheater) for supplemental domestic hot water heating.
- Constructed with a white pre-painted galvanized steel cabinet.
- Includes a 2" filter rack with a MERV-8 filter.
- Covered by a 10-year limited parts and labor warranty.
