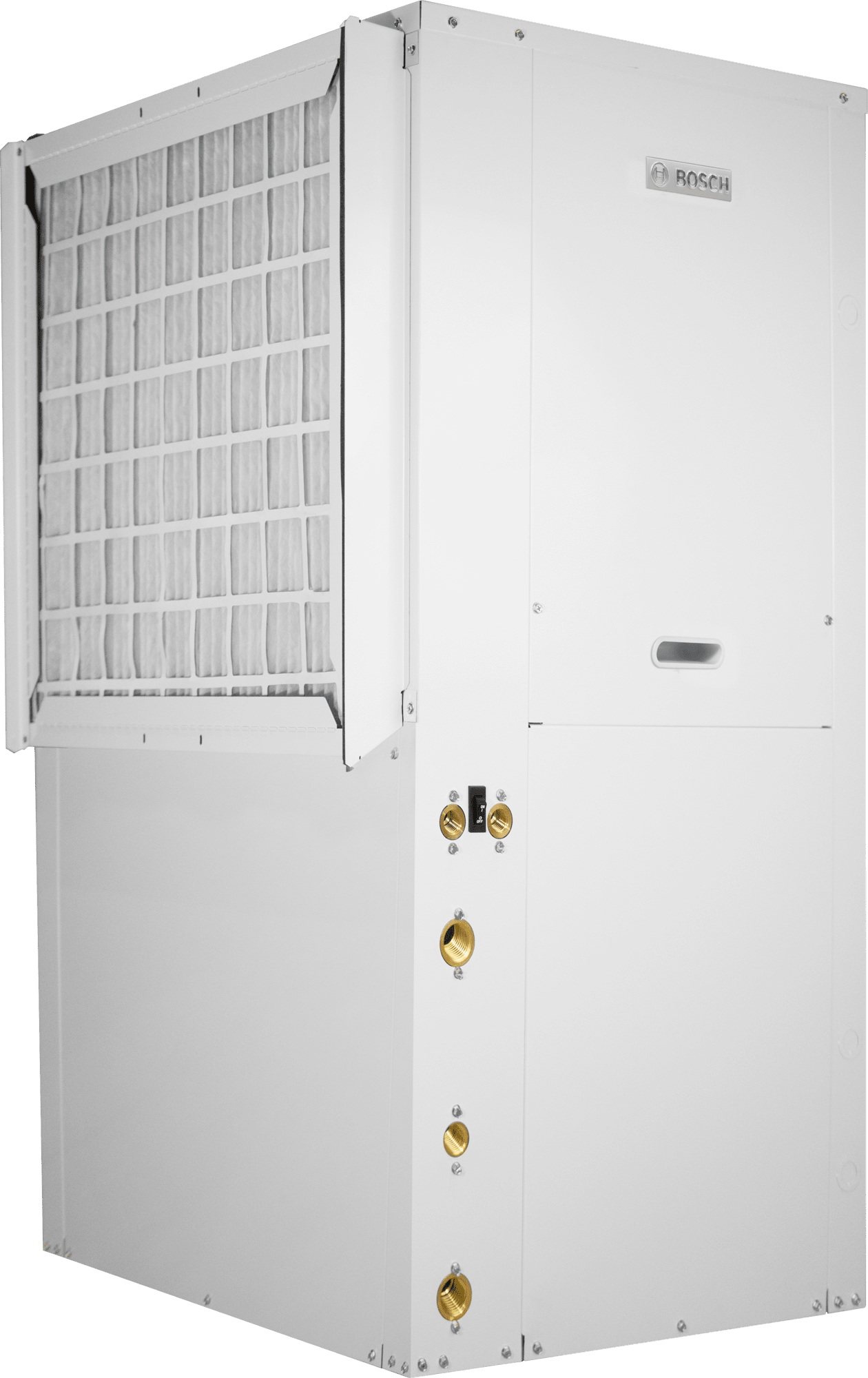

Bosch Greensource Si Series CE CE035-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-410A, Vertical, Left Return, 208/230 V, 14 EER (WLHP), 21.25 EER (GWHP), 15.7 EER (GLHP), 3/4" FPT Connection, 1-Phase
Bosch Greensource Si Series CE CE035-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-410A, Vertical, Left Return, 208/230 V, 14 EER (WLHP), 21.25 EER (GWHP), 15.7 EER (GLHP), 3/4" FPT Connection, 1-Phase
| Amperage Rating | : | 4.3 A (FLA), 23.8 A (MCA) |
| BTU Cooling Rating | : | 36,000 Btu/hr |
| BTU Rating | : | 36,000 BTU/hr (Cooling, WLHP) |
| Blower Size | : | 9" Diam x 7" W |
| CFM Rating | : | 1,200 CFM |
| Coil Rating | : | 3 Tons |
| Color | : | White |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Left Return |
| Connection Type | : | 3/4" FPT |
| Dimensions | : | 47-1/4" H x 21-1/2" W x 26" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 14 EER (WLHP), 21.25 EER (GWHP), 15.7 EER (GLHP) |
| Filter Size | : | 24" x 24" x 1" |
| Finish | : | Pre-Painted (Cabinet), Tin Plated (Evaporator Coil) |
| Flow Rate | : | 9 GPM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| HP Rating | : | 1/2 HP (Fan Motor) |
| Material | : | Galvanized Steel (Cabinet), Cupro-Nickel (Water Coil), Tin-Plated Copper (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model Number | : | 7-735 |
| Model | : | CE035-1VTN-FLTATB-XGGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 139.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource Si Series CE |
| Temperature Rating | : | 50-100 °F (Cooling, Ambient Air), 40-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water) |
| Tonnage | : | 3 tons |
| Voltage Rating | : | 208/230 V |
| Volts | : | 208/230 V |
The Greensource Si Series CE Model geothermal heat pump comes in a horizontal, vertical, or counter-flow configuration in sizes from 2 to 6 tons. This compact, high efficiency packaged solution can individually replace your old system or be used for a new installation.The Bosch Greensource geothermal heat pump requires less energy to produce the equivalent cooling and heating output than other conventional heat pumps on the market. This saves energy and reduces the cost to stay comfortable in your home. Bosch's Unit Protection Module (UPM) aids in troubleshooting and helps reduce the time required to diagnose the operation of the unit in order to keep it running at optimal conditions. The UPM circuit board can send automatic alerts to be displayed on a Bosch thermostat therefore expediting any maintenance that is required. Greensource is equipped with an advanced sound package comprising of a unique floating base pan to isolate internal components from the exterior cabinet thereby reducing sound and vibration. Combined with dual density fiberglass cabinet insulation makes the Greensource one of the quietest units on the market.
Bosch Water Source Heat Pump, Model: Greensource Si Series CE, 3 Tons, R-410A, Vertical, Left Return, 208/230 V, 14 EER (WLHP), 21.25 EER (GWHP), 15.7 EER (GLHP), 3/4" FPT Connection, 1-Phase, 47-1/4" H x 21-1/2" W x 26" D Dimensions, 1,200 CFM, 9 GPM, ECM Constant Airflow, Scroll, 9" Diam x 7" W Blower Size, 1/2 HP (Fan Motor), Galvanized Steel (Cabinet), Cupro-Nickel (Water Coil), Tin-Plated Copper (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 24" x 24" x 1" Filter Size, 2 Stage, 36,000 BTU/hr (Cooling, WLHP), 4.3 A (FLA), 23.8 A (MCA), Domestic, 139.7 PSI (Max Water Working), 50-100 °F (Cooling, Ambient Air), 40-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water), 60 Hz, 35 A Fuse Rating
- Features a two-stage scroll compressor for enhanced efficiency and comfort control.
- Equipped with a variable-speed ECM constant airflow motor for consistent performance.
- Includes a durable cupro-nickel water coil suitable for various water conditions.
- Utilizes environmentally friendly R-410A refrigerant.
- Advanced diagnostics provided by the Unit Protection Module (UPM) with alert capabilities.
- Features a tin-plated copper tube/aluminum fin air coil for corrosion resistance.
- Comes standard with a 2" MERV 8 filter rack and filter (24" x 24").
- Vertical upflow configuration with left-hand return air and top discharge.
- Backed by a 10-year limited parts and labor warranty.
