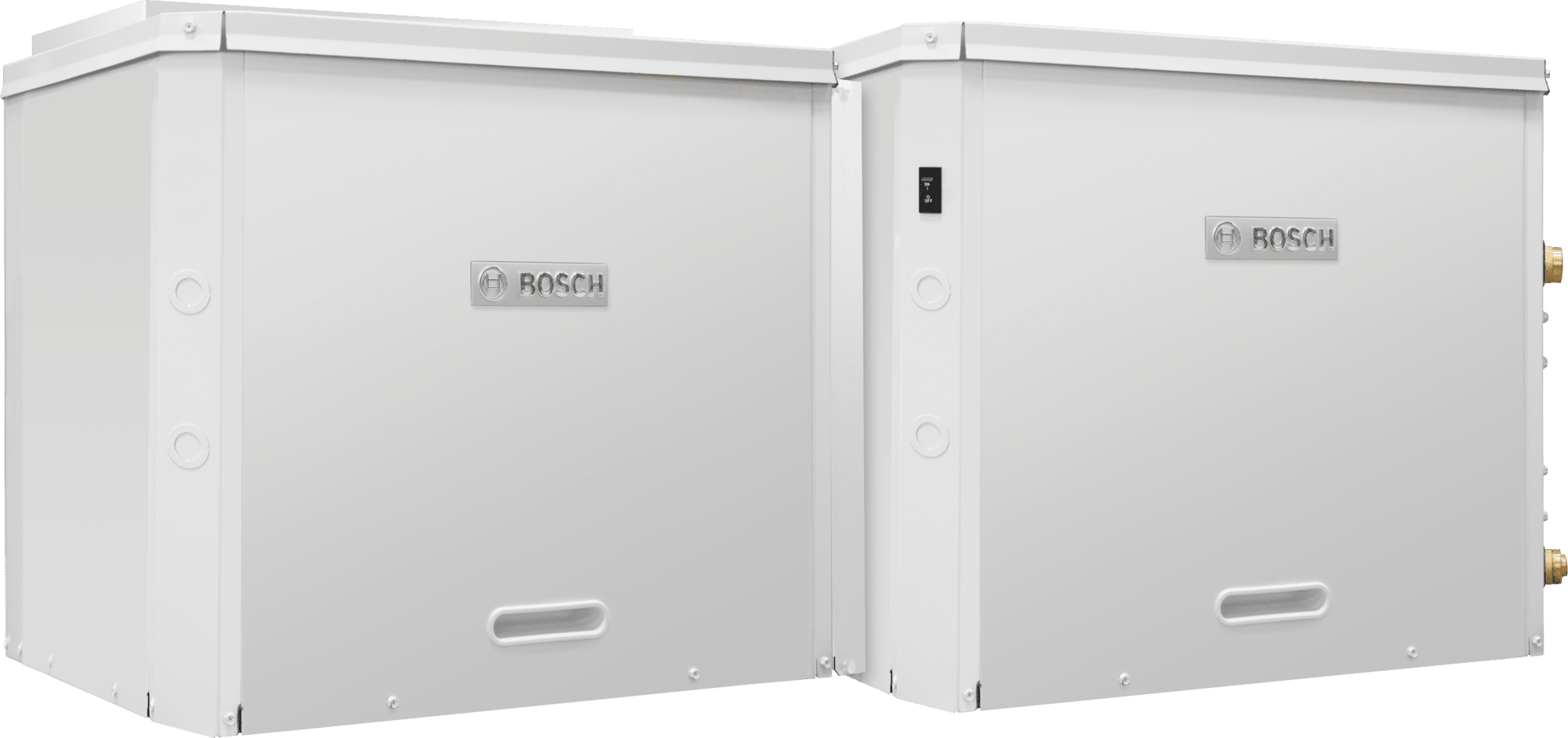

Bosch Greensource CDi Series SM Split SM048-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 4 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 14.9-29.8 EER, 1,600 CFM, 48,000 BTU/hr (Nominal)
Bosch Greensource CDi Series SM Split SM048-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 4 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 14.9-29.8 EER, 1,600 CFM, 48,000 BTU/hr (Nominal)
| Amperage Rating | : | 21.2 A (RLA), 26.5 A (MCA) |
| BTU Cooling Rating | : | 48,000 Btu/hr |
| BTU Rating | : | 48,000 BTU/hr |
| CFM Rating | : | 1,600 CFM |
| Color | : | White |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Split System, Condensing Unit |
| Connection Type | : | FPT (Water) |
| Dehumidification | : | Active Supported, Passive Supported |
| Dimensions | : | 21-1/2" H x 24" W x 27-2/5" D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 14.9-29.8 EER |
| Finish | : | Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 45 A |
| Liquid Line Size | : | 3/8 " |
| Material | : | Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil) |
| Model Number | : | 7-735 |
| Model | : | SM048-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA |
| Mounting Type | : | Floor Mount (Requires Support) |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource CDi Series SM Split |
| Sound Level | : | 52 dBA |
| Suction Line Size | : | 7/8 " |
| Temperature Rating | : | 20-80 °F (Entering Fluid, Heating), 50-110 °F (Entering Fluid, Cooling) |
| Tonnage | : | 4 tons |
| Voltage Rating | : | 208/230 V |
Enjoy efficient indoor comfort with the Bosch Greensource CDi Series SM Split Condensing Unit. Its versatile and compact design adapts to replacement, relocation, or new construction applications. The two-stage scroll compressor operates efficiently, helping to extend service life and save on energy costs. Engineered for quiet operation, this unit provides reliable performance for geothermal heating and cooling.
Bosch Condensing Unit, Model: Greensource CDi Series SM Split, 4 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 14.9-29.8 EER, 1,600 CFM, 48,000 BTU/hr (Nominal), FPT (Water), 3/8" Liquid Line Size, 7/8" Suction Line Size, 1 Phase, Two-Stage Scroll, Active Supported, Passive Supported Dehumidification, Split System, Condensing Unit, Floor Mount (Requires Support), ≥52 dBA, Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil), 21-1/2" H x 24" W x 27-2/5" D Dimensions, White, Pre-Painted, Domestic Origin, 60 Hz, 45 A Fuse Rating, 21.2 A (RLA), 26.5 A (MCA) Amperage Rating, 20-80 °F (Entering Fluid, Heating), 50-110 °F (Entering Fluid, Cooling)
- Utilizes a two-stage scroll compressor for enhanced efficiency and comfort.
- Engineered for quiet operation with sound levels starting at 52 dBA.
- Available with copper or corrosion-resistant cupro-nickel heat exchanger options.
- Features an optional desuperheater for supplemental domestic hot water heating.
- Microprocessor control board integrates with Bosch EasyStart app for simplified diagnostics.
- Durable construction with a pre-painted white sheet metal cabinet.
- Includes a 10-year limited warranty on parts and labor.
