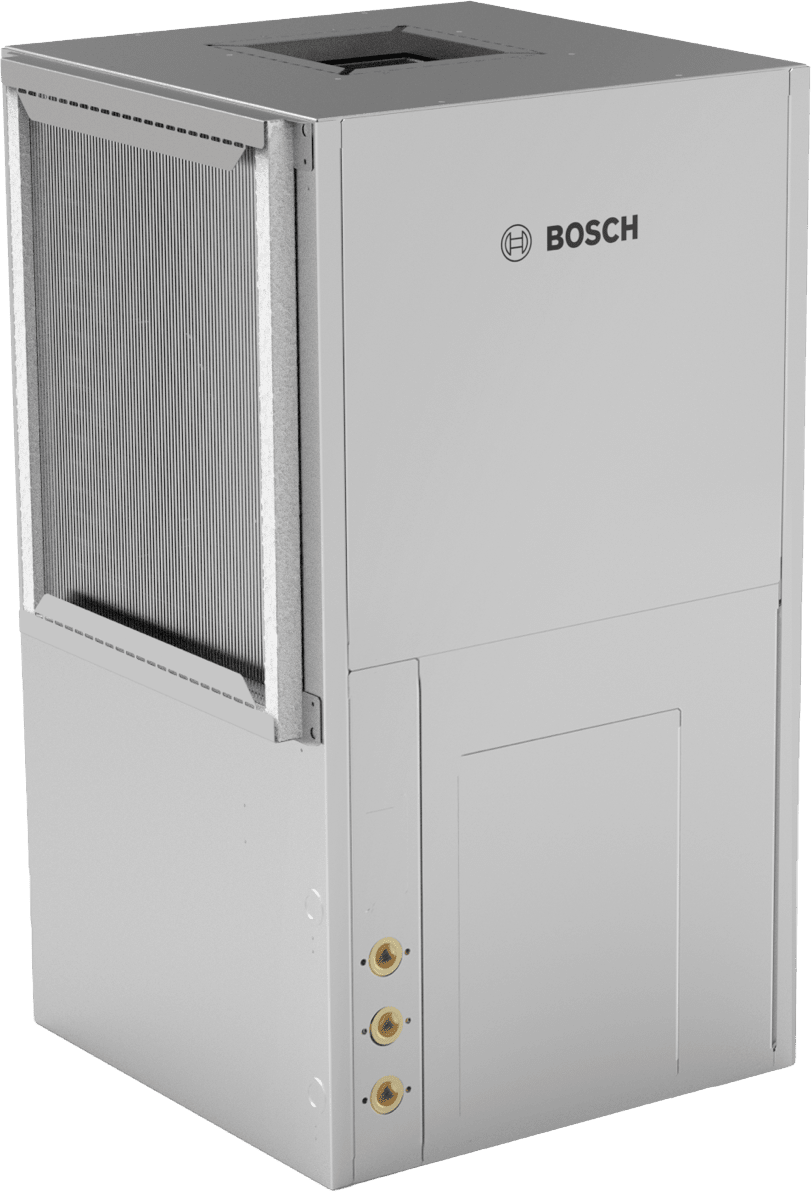

Bosch RF Series RF048-1HZN-LREADA-XGGXXXXXX7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-454B, Horizontal, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase
Bosch RF Series RF048-1HZN-LREADA-XGGXXXXXX7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-454B, Horizontal, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase
| Amperage Rating | : | 26.7 A (FLA), 31.3 A (MCA) |
| BTU Rating | : | 48,000 BTU/hr |
| Blower Size | : | 10" Diam x 8" W |
| CFM Rating | : | 1,600 CFM |
| Coil Rating | : | 4 Tons |
| Compressor Type | : | Scroll |
| Configuration | : | Horizontal |
| Connection Type | : | 3/4" FPT |
| Dimensions | : | 21" H x 24" W x 54" D |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 15.0-21.0 EER |
| Filter Size | : | 30" H x 24" L |
| Finish | : | Painted |
| Flow Rate | : | 12.0 GPM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 45 A (Single Point) |
| HP Rating | : | 3/4 HP |
| Material | : | Galvanized Steel |
| Model | : | RF048-1HZN-LREADA-XGGXXXXXX7XXXX4XXXXSBA |
| Mounting Type | : | Horizontal |
| Phase | : | 1 |
| Pressure Rating | : | 414.7 PSI (Max Water Working Pressure) |
| Refrigerant Type | : | R-454B |
| Series | : | RF Series |
| Temperature Rating | : | 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating) |
| Tonnage | : | 4 tons |
| Voltage Rating | : | 208/230 V |
Elevate home comfort with a high-performing geothermal water source heat pump solution from Bosch.- The A2L refrigerant, R-454B, meets low-global warming potential (Low-GWP) requirements.- Easier serviceability; swinging electrical box- Available in vertical, horizontal, and counterflow sizes- ENERGY STAR ratedVersatility defines the Bosch RF Series water-to-air residential geothermal heat pump. The RF Series features either single or two speed compressor technology, a swinging electrical box, a slide out blower, and improved air coil serviceability, making for an easy and headache-free installation and maintenance process. Equipped with R-454B refrigerant, the RF Series meets the criteria for a lower global warming potential A2L refrigerant. The system is ENERGY STAR rated and has a 10-year warranty on both the compressor and parts.
Bosch Water Source Heat Pump, Model: RF Series, 4 Tons, R-454B, Horizontal, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase, 21" H x 24" W x 54" D Dimensions, 1,600 CFM, 12.0 GPM, ECM Constant Airflow, Scroll, 10" Diam x 8" W Blower Size, 3/4 HP, Galvanized Steel, 30" H x 24" L Filter Size, 48,000 BTU/hr, 26.7 A (FLA), 31.3 A (MCA), 414.7 PSI (Max Water Working Pressure), 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating), 60 Hz, 45 A (Single Point) Fuse Rating, Painted
- Utilizes R-454B, an A2L refrigerant meeting low-global warming potential (Low-GWP) requirements.

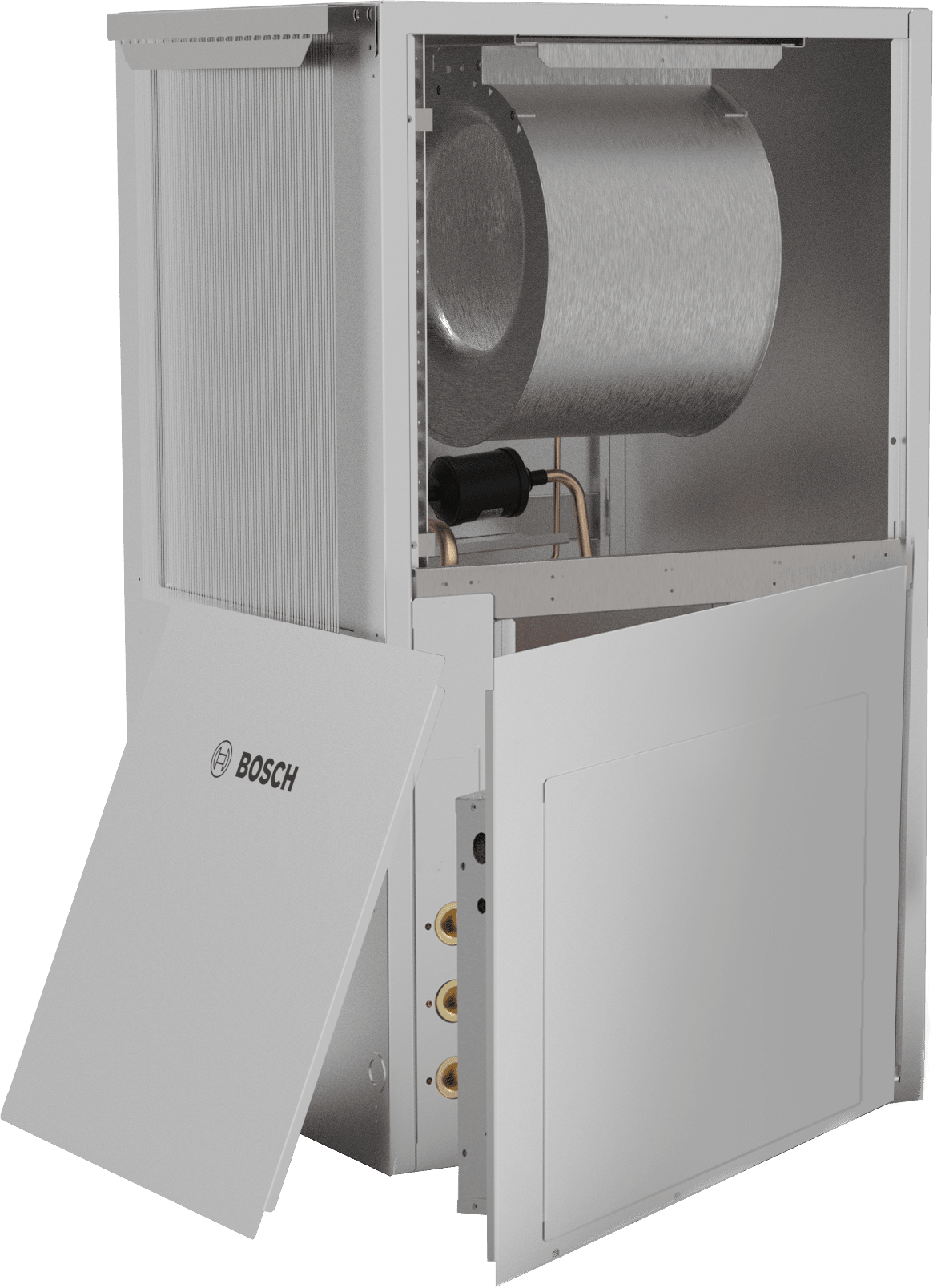

- Features enhanced serviceability with a swinging electrical box and improved air coil access.
- ENERGY STAR rated for efficient operation.
- Constructed from heavy-gauge galvanized steel with a painted finish for durability.
- Operates on 208/230V, 1-phase, 60 Hz power.
- Accommodates a standard 20" x 34" filter.
- Includes a 10-year limited warranty on the compressor and parts.
