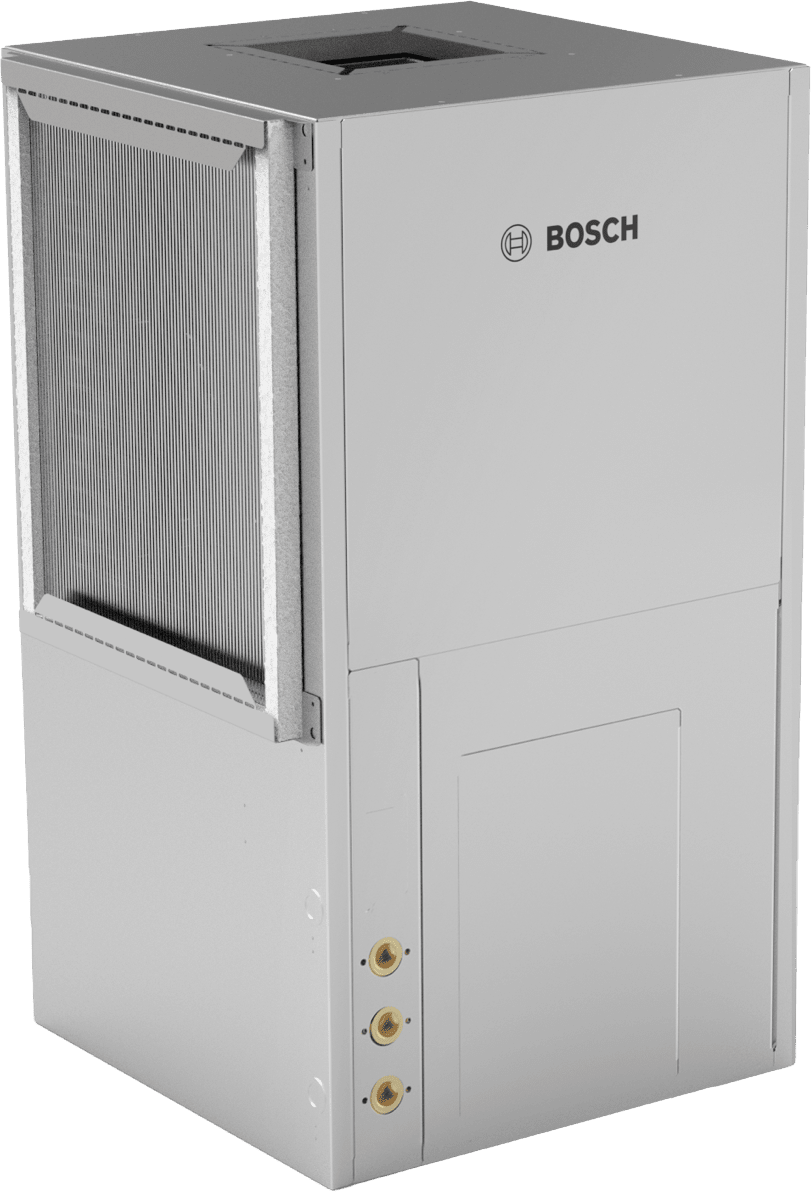

Bosch RF Series RF036-1VTN-LRTADA-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-454B, Vertical, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase
Bosch RF Series RF036-1VTN-LRTADA-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-454B, Vertical, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase
| Amperage Rating | : | 23.0 A (FLA), 26.6 A (MCA) |
| BTU Rating | : | 36,000 BTU/hr |
| Blower Size | : | 10" Diam x 8" W |
| CFM Rating | : | 1,200 CFM |
| Coil Rating | : | 3 Tons |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical |
| Connection Type | : | 3/4" FPT |
| Dimensions | : | 44" H x 21-1/2" W x 26" D |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 15.0-21.0 EER |
| Filter Size | : | 30" H x 24" L |
| Finish | : | Painted |
| Flow Rate | : | 9 GPM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A (Single Point) |
| HP Rating | : | 3/4 HP |
| Material | : | Galvanized Steel |
| Model | : | RF036-1VTN-LRTADA-XGGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 414.7 PSI (Max Water Working Pressure) |
| Refrigerant Type | : | R-454B |
| Series | : | RF Series |
| Temperature Rating | : | 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating) |
| Tonnage | : | 3 tons |
| Voltage Rating | : | 208/230 V |
Elevate home comfort with a high-performing geothermal water source heat pump solution from Bosch. Versatility defines the Bosch RF Series water-to-air residential geothermal heat pump. The RF Series features either single or two speed compressor technology, a swinging electrical box, a slide out blower, and improved air coil serviceability, making for an easy and headache-free installation and maintenance process. Equipped with R-454B refrigerant, the RF Series meets the criteria for a lower global warming potential A2L refrigerant. The system is ENERGY STAR rated and has a 10-year warranty on both the compressor and parts.The RF Series features a swinging electrical box for easy access to the compressor and internal components. Vertical units have better air coil serviceability and a slide-out blower for hassle-free maintenance. These highly efficient units not only reduce your operating cost, but also reduce carbon dioxide emissions, a leading cause of global warming. Rigorous factory testing and over 40 years of experience ensure hassle-free operation and top-quality heat pumps. Our ISO 9001-2008 and ISO 14001-2004 certified facilities guarantee consistent quality in every unit.
Bosch Water Source Heat Pump, Model: RF Series, 3 Tons, R-454B, Vertical, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase, 44" H x 21-1/2" W x 26" D Dimensions, 1,200 CFM, 9 GPM, ECM Constant Airflow, Scroll, 10" Diam x 8" W Blower Size, 3/4 HP, Galvanized Steel, 30" H x 24" L Filter Size, 2 Stage, 36,000 BTU/hr, 23.0 A (FLA), 26.6 A (MCA), 414.7 PSI (Max Water Working Pressure), 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating), 60 Hz, 40 A (Single Point) Fuse Rating, Painted
- Features highly efficient two-stage scroll compressor operation.
- Utilizes environmentally friendly, low-GWP R-454B refrigerant.
- ENERGY STAR certified, ensuring lower energy consumption and operating costs.

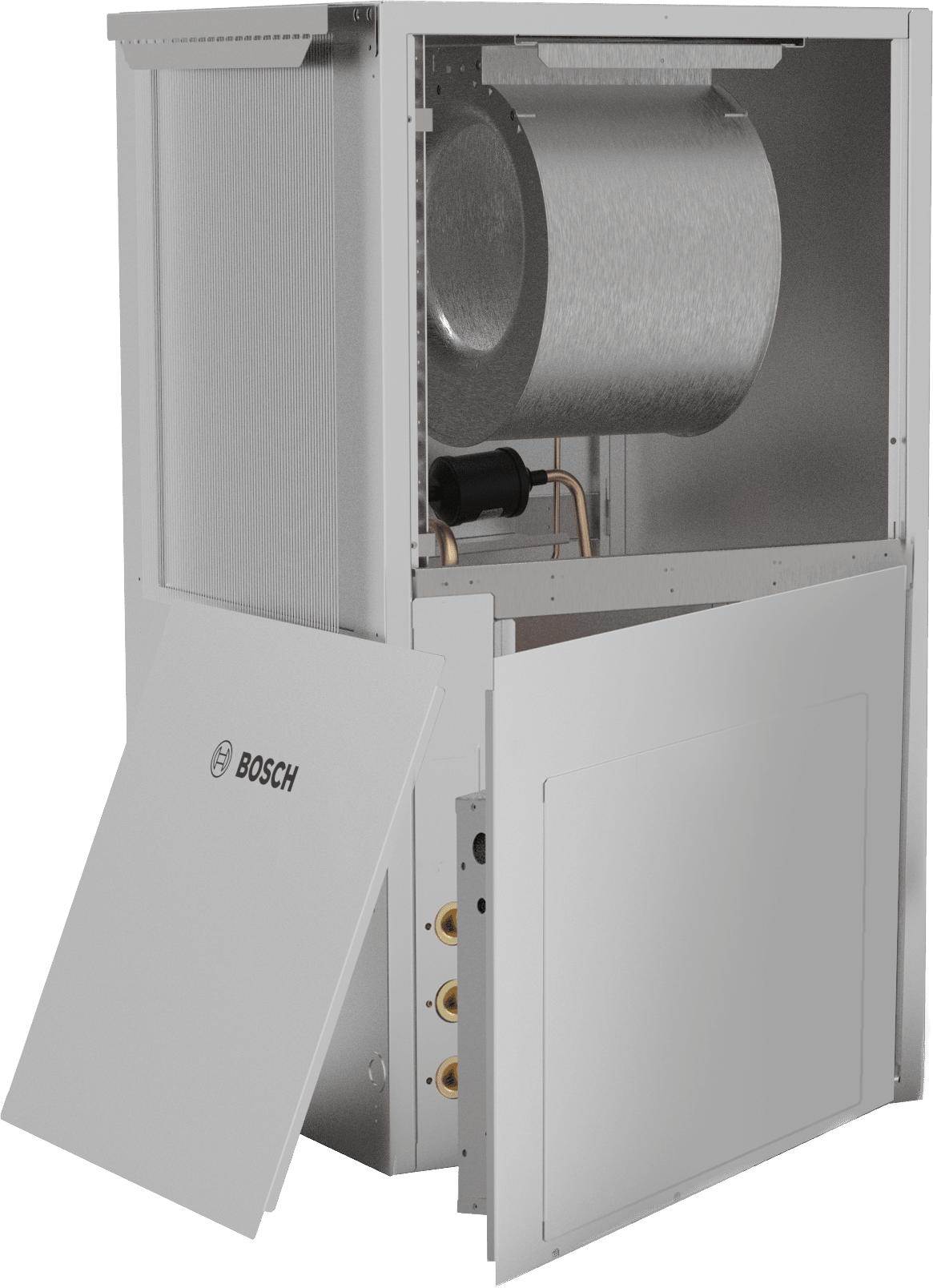

- Designed for easier installation and maintenance with a swinging electrical box and slide-out blower.
- Equipped with a high-efficiency 3/4 HP constant airflow ECM blower motor delivering 1200 CFM.
- Built with a heavy-gauge galvanized steel cabinet and durable 3/4" bronze FPT water connections.
- Backed by a 10-year warranty on the compressor and parts.
