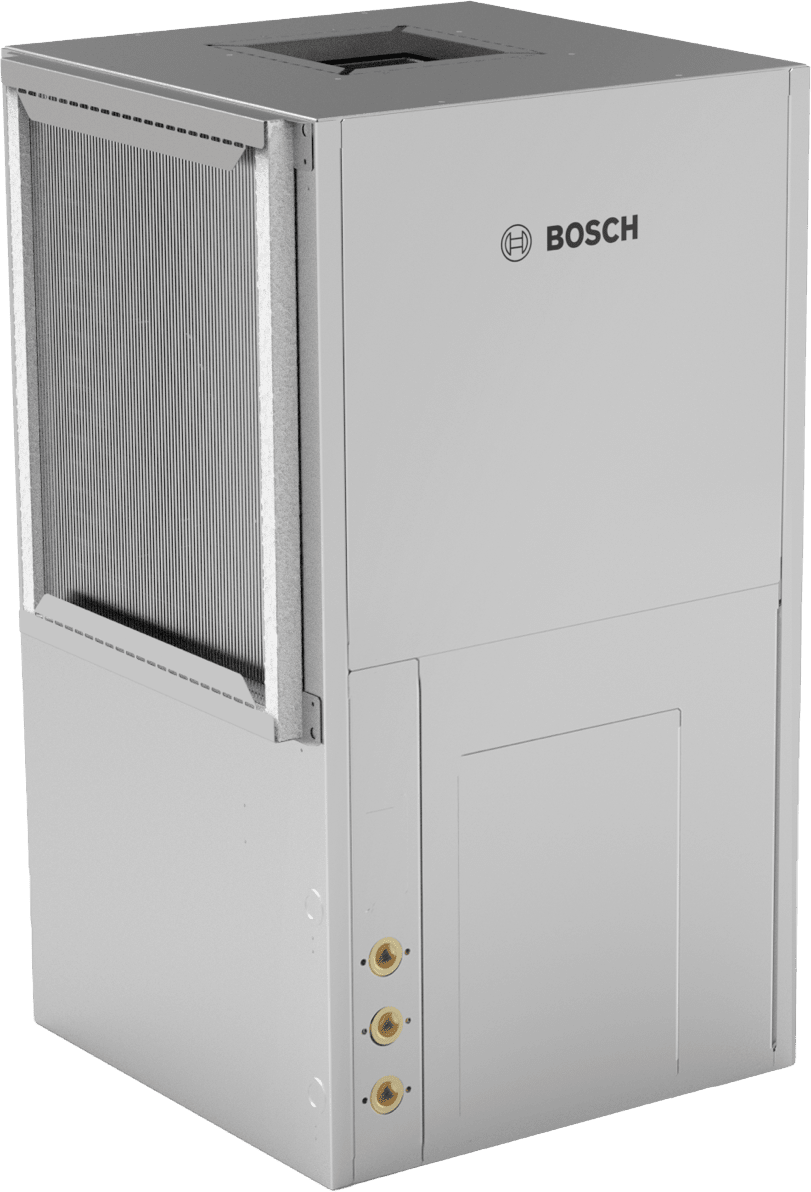

Bosch RF Series RF024-1VTN-LRTADA-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-454B, Vertical, 208/230 V, 15.5-23.0 EER, 3/4" FPT Connection, 1-Phase
Bosch RF Series RF024-1VTN-LRTADA-XGGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 2 Tons, R-454B, Vertical, 208/230 V, 15.5-23.0 EER, 3/4" FPT Connection, 1-Phase
| Amperage Rating | : | 14.7 A (FLA), 17.2 A (MCA) |
| BTU Rating | : | 24,000 BTU/hr |
| Blower Size | : | 9" Diam x 7" W |
| CFM Rating | : | 800 CFM |
| Coil Rating | : | 2 Tons |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical |
| Connection Type | : | 3/4" FPT |
| Dimensions | : | 39" H x 21-1/2" W x 21-1/2" D |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 15.5-23.0 EER |
| Filter Size | : | 30" H x 24" L |
| Finish | : | Painted |
| Flow Rate | : | 6 GPM |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A (Single Point) |
| HP Rating | : | 1/3 HP (Blower Motor) |
| Material | : | Galvanized Steel |
| Model | : | RF024-1VTN-LRTADA-XGGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 414.7 PSI (Max Water Working Pressure) |
| Refrigerant Type | : | R-454B |
| Series | : | RF Series |
| Temperature Rating | : | 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating) |
| Tonnage | : | 2 tons |
| Voltage Rating | : | 208/230 V |
Elevate home comfort with a high-performing geothermal water source heat pump solution from Bosch.The RF Series features a swinging electrical box for easy access to the compressor and internal components. Vertical units have better air coil serviceability and a slide-out blower for hassle-free maintenance. These highly efficient units not only reduce your operating cost, but also reduce carbon dioxide emissions, a leading cause of global warming. Equipped with R-454B refrigerant, the RF Series meets the criteria for a lower global warming potential refrigerant in the A2L category.
Bosch Water Source Heat Pump, Model: RF Series, 2 Tons, R-454B, Vertical, 208/230 V, 15.5-23.0 EER, 3/4" FPT Connection, 1-Phase, 39" H x 21-1/2" W x 21-1/2" D Dimensions, 800 CFM, 6 GPM, ECM Constant Airflow, Scroll, 9" Diam x 7" W Blower Size, 1/3 HP (Blower Motor), Galvanized Steel, 30" H x 24" L Filter Size, 2 Stage, 24,000 BTU/hr, 14.7 A (FLA), 17.2 A (MCA), 414.7 PSI (Max Water Working Pressure), 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating), 60 Hz, 25 A (Single Point) Fuse Rating, Painted
- Features a two-stage scroll compressor for efficient performance.
- Utilizes R-454B refrigerant, meeting low-global warming potential (Low-GWP) requirements.

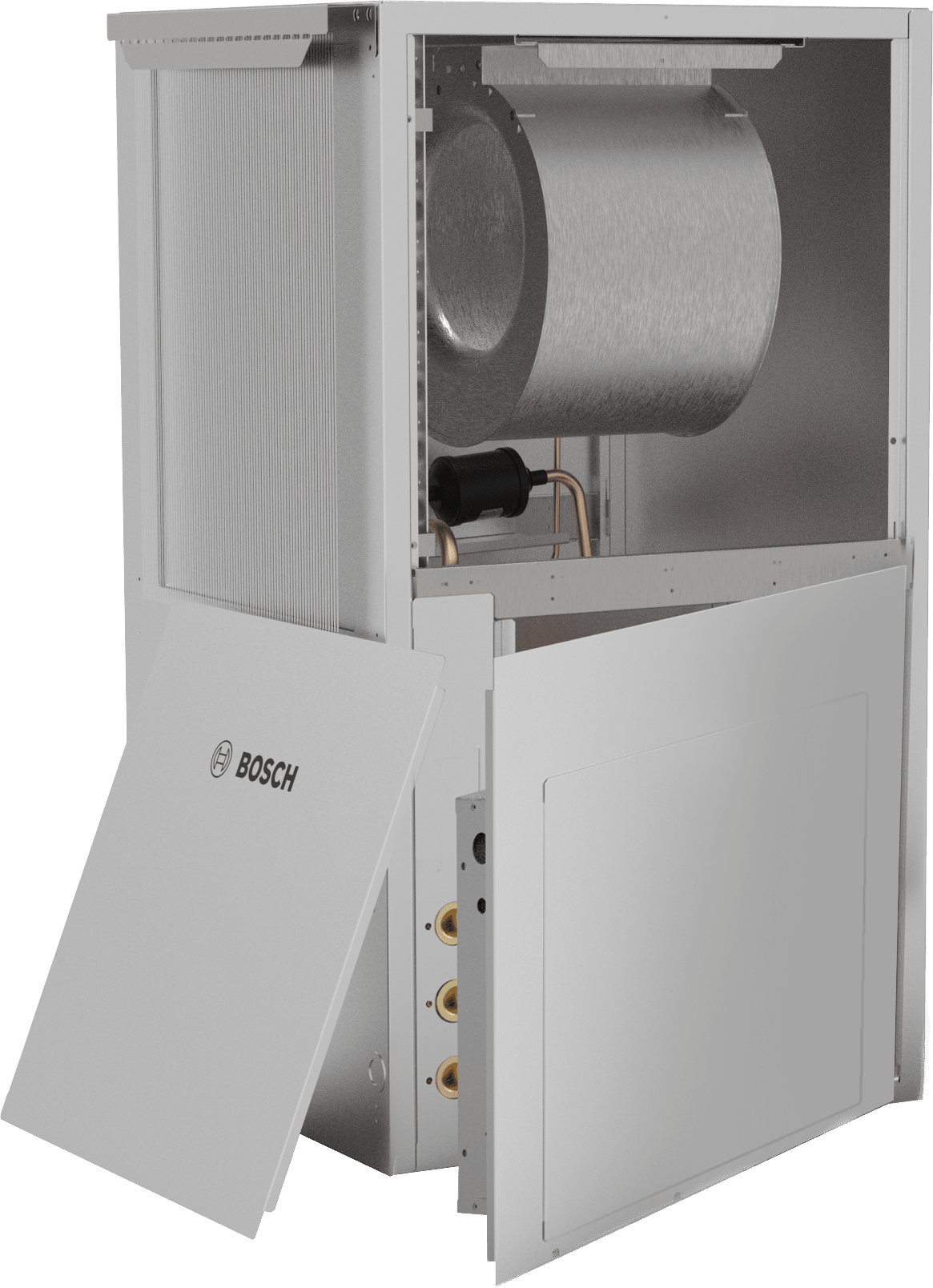

- Designed for easier serviceability with a swinging electrical box and slide-out blower.
- Constructed with a heavy-gauge galvanized steel cabinet for durability.
- Features 3/4" FPT heavy-duty bronze water connections.
- Operates on 208/230V single-phase power.
- ENERGY STAR® rated for high efficiency.
- Includes a 10-year warranty on both the compressor and parts.
