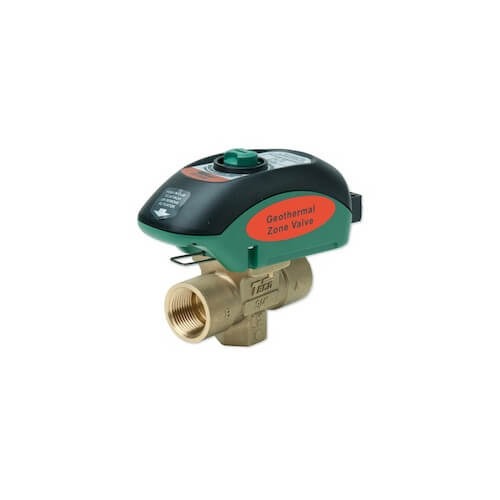

B&D Mfg Geo-Sentry V075T2G-1 Zone Valve, 3/4" Nominal Size, NPT Connection, 2-Way, Normally Closed, 10.3 Cv, Open System, Closed System, Geothermal, Water, Water/Glycol Solution (Up To 50%), Water-Ethanol Solution (Up To 25%), Water-Methanol Solution (Up To 25%), Low Pressure Steam (15 PSI Max), 300 PSI (Max Operating), 125 PSI (Shut-Off), 20-220 °F (Fluid)
B&D Mfg Geo-Sentry V075T2G-1 Zone Valve, 3/4" Nominal Size, NPT Connection, 2-Way, Normally Closed, 10.3 Cv, Open System, Closed System, Geothermal, Water, Water/Glycol Solution (Up To 50%), Water-Ethanol Solution (Up To 25%), Water-Methanol Solution (Up To 25%), Low Pressure Steam (15 PSI Max), 300 PSI (Max Operating), 125 PSI (Shut-Off), 20-220 °F (Fluid)
| Amperage Rating | : | 0.48 A (Charging); 0.06 A (Power On) |
| Configuration | : | 2-Way, Normally Closed |
| Connection Type | : | NPT |
| Contact Rating | : | 1 A (End Switch, 24 VAC) |
| Cycle Time | : | 5 seconds (Ball Rotation Speed, After Charge Time) |
| Dimensions | : | 3" (A), 2-3/8" (B), 4-1/8" (C), 3-1/8" (D), 3-5/16" (E, Threaded), 1-9/16" (F), 2-5/16" (G) |
| Disc Material | : | Brass (Chrome Plated) |
| Flow Coefficient (Cv) | : | 10.3 Cv |
| Material | : | Forged Brass (Valve Body) |
| Model | : | V075T2G-1 |
| Nominal Size | : | 3/4 " |
| Number of Ways/Position | : | 2-Way |
| Packing Material | : | EPDM (O-Rings) |
| Power Consumption | : | 11.4 W (Charging), 1.44 W (Power On) |
| Pressure Rating | : | 300 PSI (Max Operating), 125 PSI (Shut-Off) |
| Seal Material | : | EPDM (O-Rings) |
| Seat Material | : | Modified Teflon® |
| Series | : | Geo-Sentry |
| Service Type | : | Open System, Closed System, Geothermal, Water, Water/Glycol Solution (Up To 50%), Water-Ethanol Solution (Up To 25%), Water-Methanol Solution (Up To 25%), Low Pressure Steam (15 PSI Max) |
| Stem Material | : | Brass |
| Timing Range | : | 5 seconds (Ball Rotation Speed, After Charge Time) |
| Trim Material | : | Brass (Stem), Chrome Plated Brass (Ball), Modified Teflon® (Seat) |
| Voltage Rating | : | 24 VAC |
The Geo-Sentry zone valve provides on/off, normally open or normally closed control and is especially suited for use in either open or closed loop geothermal systems with water source heat pumps. Its microcircuit based logic provides energy savings through lower power consumption and increased efficiency and is compatible with conventional or programmable thermostats. Its unique design provides features such as positional indicator, manual override button, quick release actuator mounting clip and multi-function LED to assist with troubleshooting.
B&D Mfg Zone Valve, Model: Geo-Sentry, 3/4" Nominal Size, NPT Connection, 2-Way, Normally Closed, 10.3 Cv, Open System, Closed System, Geothermal, Water, Water/Glycol Solution (Up To 50%), Water-Ethanol Solution (Up To 25%), Water-Methanol Solution (Up To 25%), Low Pressure Steam (15 PSI Max), 300 PSI (Max Operating), 125 PSI (Shut-Off), 20-220 °F (Fluid), 24 VAC, Forged Brass (Valve Body), Brass (Stem), Chrome Plated Brass (Ball), Modified Teflon® (Seat), EPDM (O-Rings), 11.4 W (Charging), 1.44 W (Power On), 0.48 A (Charging); 0.06 A (Power On) Amperage Rating, 1 A (End Switch, 24 VAC) Contact Rating, 5 Seconds (Ball Rotation Speed, After Charge Time) Timing Range, 3" (A), 2-3/8" (B), 4-1/8" (C), 3-1/8" (D), 3-5/16" (E, Threaded), 1-9/16" (F), 2-5/16" (G) Dimensions
- Uses up to 93% less energy than many other commonly installed zone valves.
- Multi-function LED assists with troubleshooting during installation and operation.
- Features a manual override button and positional indicator for ease of use.
- Quick-release actuator mounting clip allows for simple installation and service.
- Bi-directional flow eliminates concerns about flow direction during installation.
- Forged brass body construction ensures durability in various hydronic applications.
- Suitable for water, glycol solutions (up to 50%), ethanol/methanol solutions (up to 25%), and low-pressure steam (15 PSI max).
