B&D Mfg 26-99 Grundfos UPS 26-99 Circulator Pump, 0-33 GPM, 29' Maximum Head, 1/6 HP, 115 V, 1 Phase, Flange Connection Type, GF 15/26 Flange Inlet Size
B&D Mfg 26-99 Grundfos UPS 26-99 Circulator Pump, 0-33 GPM, 29' Maximum Head, 1/6 HP, 115 V, 1 Phase, Flange Connection Type, GF 15/26 Flange Inlet Size
| Amperage Rating | : | 1.3 A (Speed 1); 1.5 A (Speed 2); 1.8 A (Speed 3) |
| Case Pressure | : | 145 PSI |
| Connection Type | : | Flange |
| Dimensions | : | 6" L x 6-1/2" H x 5-3/16" W |
| Flow Rate | : | 0-33 GPM |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 HP |
| Inlet Size | : | GF 15/26 Flange |
| Material | : | Cast Iron |
| Maximum Head | : | 29 ' |
| Maximum Pressure | : | 145 PSI |
| Model | : | Grundfos UPS 26-99 |
| Mounting Type | : | In-Line Flanged |
| Number of Poles | : | 2 |
| Outlet Size | : | GF 15/26 Flange |
| Phase | : | 1 |
| Power Rating | : | 150 W (Speed 1), 179 W (Speed 2), 197 W (Speed 3) |
| Series | : | 26-99 |
| Temperature Rating | : | 36-230 °F |
| Voltage Rating | : | 115 V |

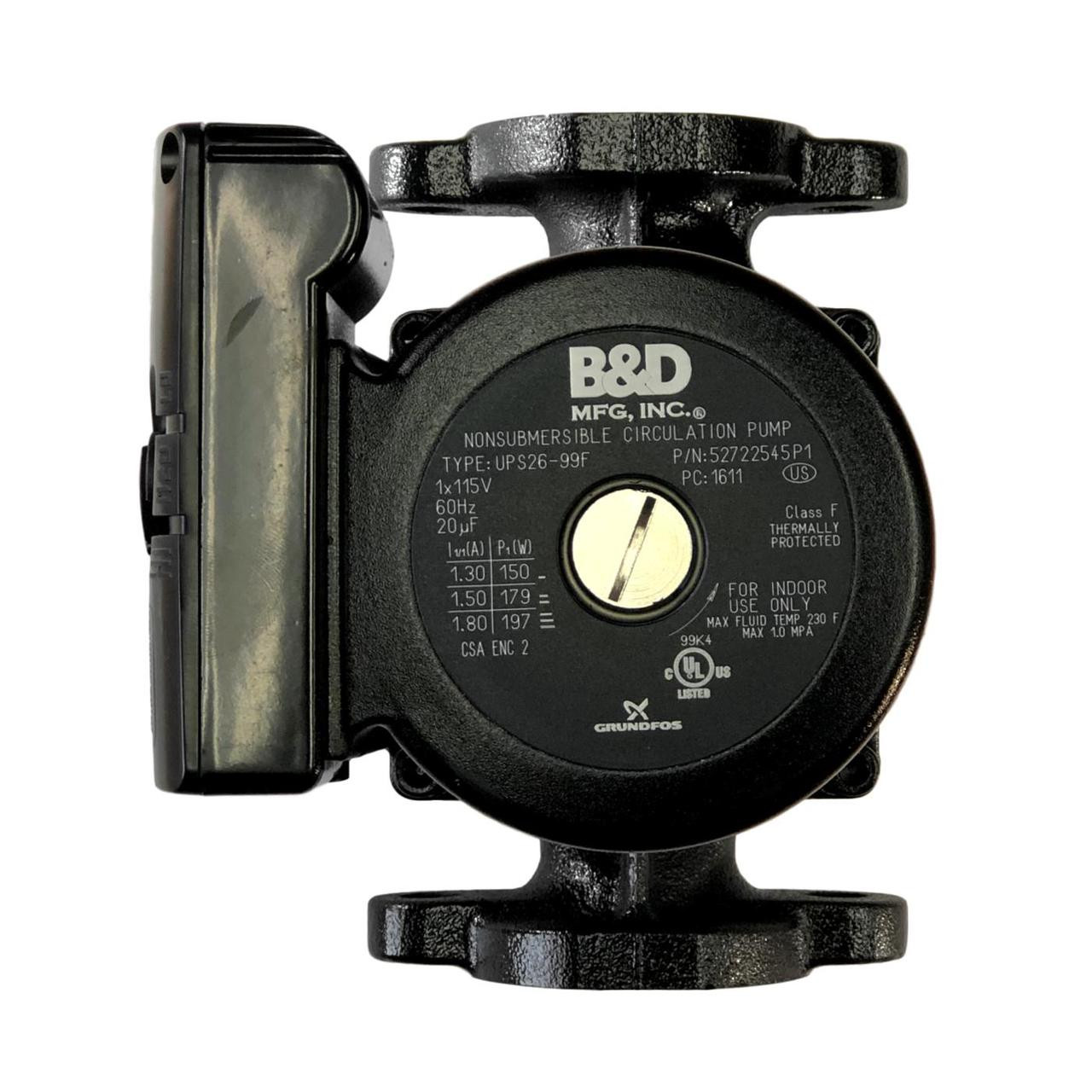

This 26-99 series circulator pump features a reliable cast iron body and a versatile 3-speed motor, based on the Grundfos UPS 26-99 design. It is suitable for a wide range of closed-loop heating applications, including radiant heat, baseboards, fan coils, and other hydronic systems.The 1/6 HP, 115V single-phase motor delivers flow rates up to 33 GPM and a maximum head of 29 feet, accommodating various system demands. Designed for durability, it operates within a temperature range of 36°F to 230°F and handles system pressures up to 145 PSI.
B&D Mfg Circulator Pump, Model: 26-99, 0-33 GPM, 29' Maximum Head, 1/6 HP, 115 V, 1 Phase, Flange Connection Type, GF 15/26 Flange Inlet Size, GF 15/26 Flange Outlet Size, In-Line Flanged, 145 PSI, 36-230 °F Temperature Rating, 2 Poles, Cast Iron, 150 W (Speed 1), 179 W (Speed 2), 197 W (Speed 3), 1.3 A (Speed 1); 1.5 A (Speed 2); 1.8 A (Speed 3), 60 Hz, 6" L x 6-1/2" H x 5-3/16" W Dimensions
- Three speed settings provide operational flexibility for various heating applications.
- Durable cast iron construction ensures longevity in hydronic systems.
- Handles fluid temperatures from 36°F up to 230°F and pressures up to 145 PSI.
- Delivers a flow range of 0-33 GPM with a maximum head of 29 feet.
- Powered by a 1/6 HP, 115V single-phase, 2-pole motor.
- Features GF 15/26 flanged connections for installation.
- UL Listed for safety assurance.
- Compatible With: B&D HSS® Buffer Tank systems.
