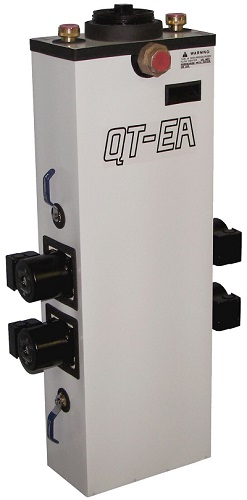

B&D Mfg QT Flow Center 2-1EASS230QFC-G Geothermal Flow Center, 1-1/4" Swivel FPT Union Connection Type, 3.5 Tons And Smaller (One Pump Per Side), 3.5 - 6 Tons (Two Pumps Per Side), Three Pumps, Grundfos UPS26-99, 3-Speed, 1/6 HP (Per Pump), 230 V, 3-Speed, Floor Mount
B&D Mfg QT Flow Center 2-1EASS230QFC-G Geothermal Flow Center, 1-1/4" Swivel FPT Union Connection Type, 3.5 Tons And Smaller (One Pump Per Side), 3.5 - 6 Tons (Two Pumps Per Side), Three Pumps, Grundfos UPS26-99, 3-Speed, 1/6 HP (Per Pump), 230 V, 3-Speed, Floor Mount
| Amperage Rating | : | 2.7 A |
| Connection Type | : | 1-1/4" Swivel FPT Union |
| Finish | : | Pre-Painted Galvalume (Casing) |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 HP (Per Pump) |
| Material | : | 304L Stainless Steel (Canister, Interior Pipe), Galvalume (Casing), Brass (Valves, Connections), Bronze (Check Valves), PVC (Dip Tube), SDR35 (Lid), Versi-Foam (Insulation) |
| Model | : | 2-1EASS230QFC-G |
| Mounting Type | : | Floor Mount |
| Pump Specifications | : | Three Pumps, Grundfos UPS26-99, 3-Speed |
| Series | : | QT Flow Center |
| Size | : | 1-1/4" (Inlet/Outlet) |
| Suitable For Use With | : | 2 Heat Pumps or Split Coils (on a Common Loop Field); Residential/Light Commercial Applications |
| Tonnage | : | 3.5 tons and smaller (one pump per side), 3.5 - 6 tons (two pumps per side) |
| Voltage Rating | : | 230 V |
SPECIAL 2 CIRCUIT FLOW CENTER NOW AVAILABLE IN QT SERIES!The QT-EA Flow Center is designed to provide long, reliable operation in an attractive cabinet, while providing installation and service benefits of the EA KFC. The stylish insulated cabinet provides flexible installation without feeling the need to hide it out of sight.SIMPLE INSTALLATIONBecause the QT-EA Flow Center is completely packaged at the factory, installation is simple. The system should be mounted on the floor. Simply connect a return line from the earth system to the QT-EA Flow Center. Then connect a supply line from the QT-EA to the heat pump unit. That's all there is to adding reliable pump protection to any closed-loop system. Also available is the Flowmeter Tool, an exclusive service tool which provides a direct reading of system flow rate, eliminating the uncertainty associated with current methods.
B&D Mfg Geothermal Flow Center, Model: QT Flow Center, 1-1/4" Swivel FPT Union Connection Type, 3.5 Tons And Smaller (One Pump Per Side), 3.5 - 6 Tons (Two Pumps Per Side), Three Pumps, Grundfos UPS26-99, 3-Speed, 1/6 HP (Per Pump), 230 V, 3-Speed, Floor Mount, 304L Stainless Steel (Canister, Interior Pipe), Galvalume (Casing), Brass (Valves, Connections), Bronze (Check Valves), PVC (Dip Tube), SDR35 (Lid), Versi-Foam (Insulation), 2.7 A, Pre-Painted Galvalume (Casing), 60 Hz
- Designed for residential or light commercial applications with two heat pumps or split coils on a common loop field.
- Includes three reliable 1/6 HP, 3-speed Grundfos pumps (230V/60Hz).
- Features a non-pressurized design with an air separation chamber that continuously purges air from the system.
- Constructed with a durable 304L stainless steel canister, SS internal piping, and insulated Galvalume cabinet.
- Simplifies installation with factory assembly, floor mounting, removable lid, and 1-1/4" swivel FPT connections.
- Equipped with check valves below each pump for serviceability and pump protection.
- Backed by a 5-year limited manufacturer warranty.
