Atco #031 Series 13102520 Insulated Flexible Duct, 20" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 4 In. Wc. (Positive), 0.75 In. Wc. (Negative) Pressure Rating
Atco #031 Series 13102520 Insulated Flexible Duct, 20" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 4 In. Wc. (Positive), 0.75 In. Wc. (Negative) Pressure Rating
| Color | : | Silver |
| Connection Type | : | Plain End |
| Diameter | : | 20 " |
| Domestic/Import | : | Domestic |
| Duct Size | : | 20 " |
| Finish | : | Reinforced Metallized Polyester |
| Flow Rate | : | 5,000 FPM |
| Length | : | 300 " |
| Material | : | Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket) |
| Pressure Rating | : | 4 in. wc. (Positive), 0.75 in. wc. (Negative) |
| R-Value | : | 8 |
| Series | : | #031 Series |
| Size | : | 20" Diam x 25' L |
| Temperature Rating | : | -20-140 °F (Continuous, Max Pressure) |
| Vapor Transmission | : | 0.05 perms |
| Velocity Rating | : | 5,000 FPM |
| Vent Duct Shape | : | Round |

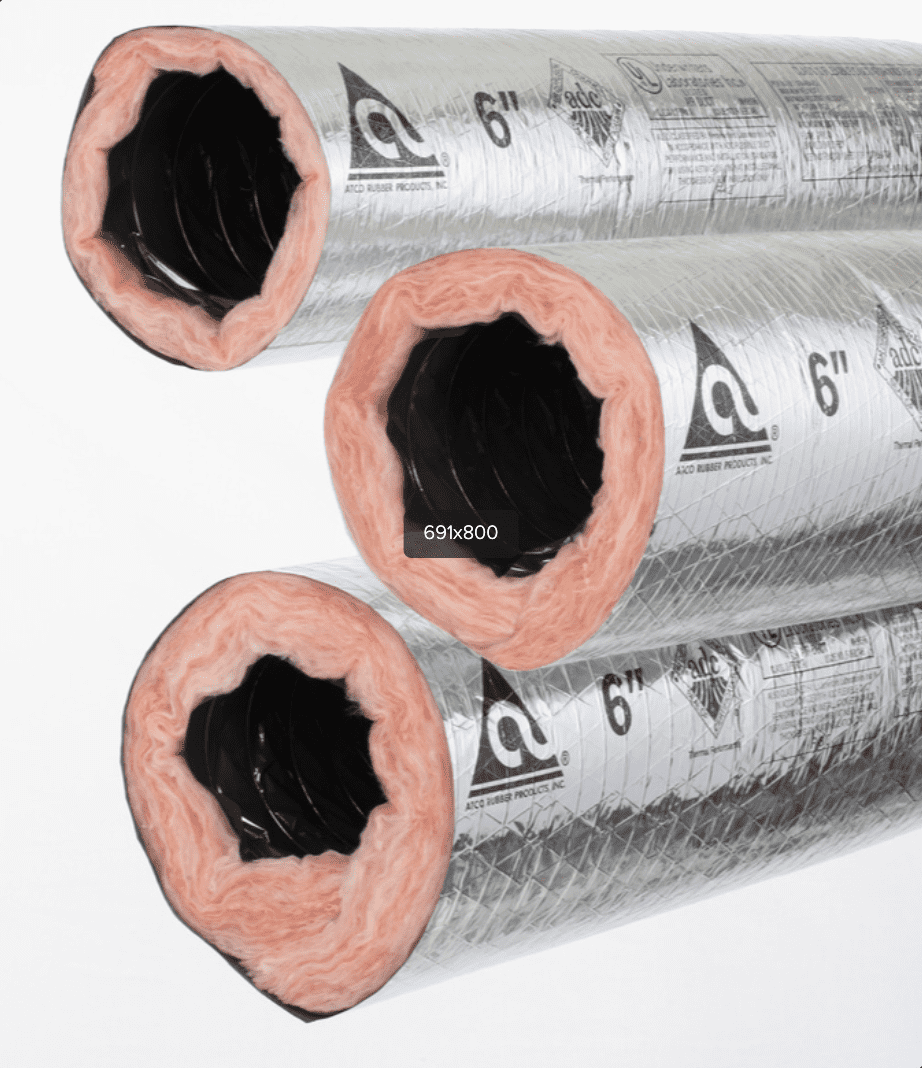

This Atco 30 Series flexible duct is a UL 181, Class 1 Air Duct designed for reliable performance in HVAC systems. It features a strong, tri-directional fiberglass scrim reinforced, metallized polyester outer jacket for durability. The duct's air-tight inner core, made from a double lamination of polyester around a steel wire helix, is ideal for low-to-medium operating pressures.Wrapped in a thick blanket of R-8 fiberglass insulation, this duct offers superior thermal characteristics compared to standard models. This construction ensures energy efficiency and prevents fiberglass erosion into the airstream, making it suitable for both supply and return air applications in residential and commercial settings.
Atco Insulated Flexible Duct, Model: #031 Series, 20" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 4 In. Wc. (Positive), 0.75 In. Wc. (Negative) Pressure Rating, -20-140 °F (Continuous, Max Pressure), 5,000 FPM, 0.05 Perms Vapor Transmission, Reinforced Metallized Polyester Finish, Silver, Domestic Origin
- Features an air-tight, 2-ply polyester inner core designed for energy efficiency and to prevent fiberglass erosion.
- Encapsulated steel wire helix construction prevents unraveling when cut and allows for quick installation.
- Smooth inner core design minimizes friction loss and reduces operating costs.
- Insulated with a thick blanket of R-8 fiberglass for excellent thermal performance.
- Durable, tear-resistant outer jacket made of tri-directionally reinforced, metallized polyester.
- UL 181 Listed as a Class 1 Air Duct.
- Highly resistant to mold growth and certified for low chemical emissions (UL 2824, UL 2818).
