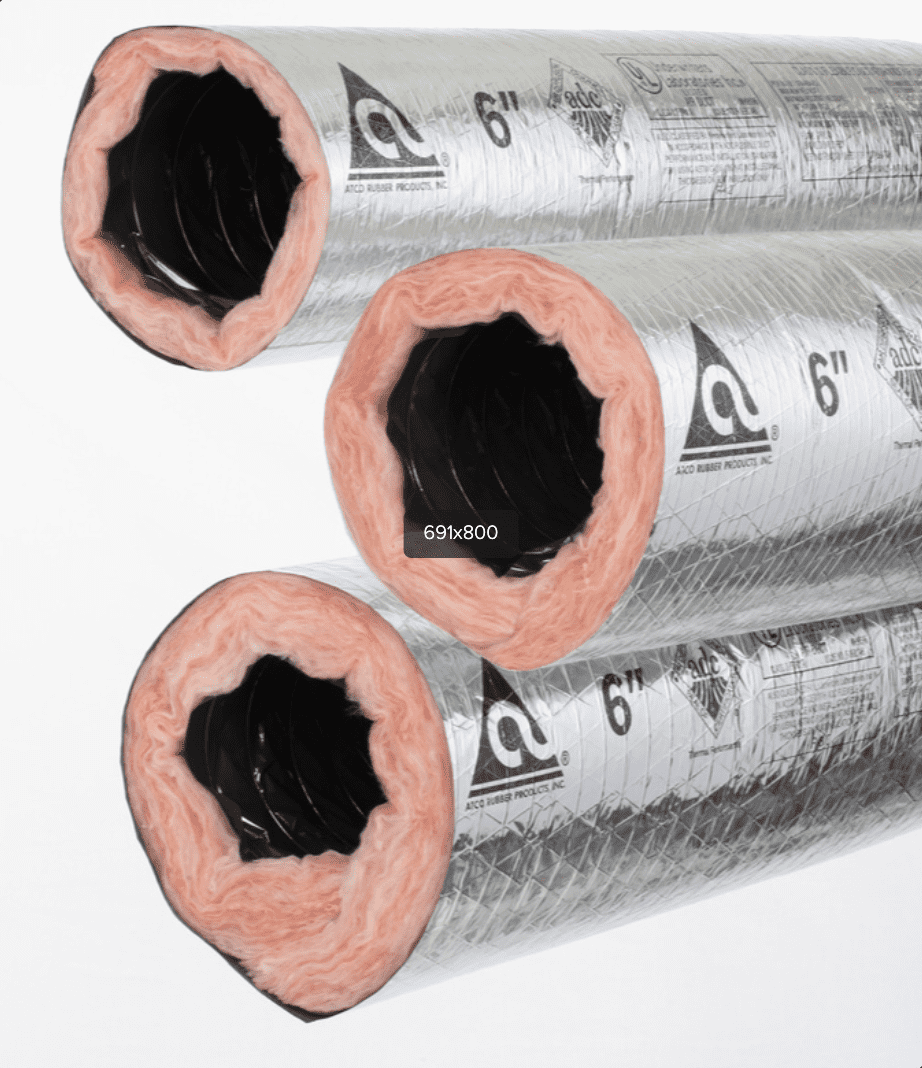

Atco #031 Series 13102406 Insulated Flexible Duct, 6" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 6 In. Wc. (Positive), 1 In. Wc. (Negative) Pressure Rating
Atco #031 Series 13102406 Insulated Flexible Duct, 6" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 6 In. Wc. (Positive), 1 In. Wc. (Negative) Pressure Rating
| Color | : | Silver |
| Connection Type | : | Plain End |
| Diameter | : | 6 " |
| Domestic/Import | : | Domestic |
| Duct Size | : | 6 " |
| Finish | : | Reinforced Metallized Polyester |
| Flow Rate | : | 5,000 FPM |
| Length | : | 300 " |
| Material | : | Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket) |
| Pressure Rating | : | 6 in. wc. (Positive), 1 in. wc. (Negative) |
| R-Value | : | 8 |
| Series | : | #031 Series |
| Size | : | 6" Diam x 25' L |
| Temperature Rating | : | -20-140 °F (Continuous, Max Pressure) |
| Vapor Transmission | : | 0.05 perms |
| Velocity Rating | : | 5,000 FPM |
| Vent Duct Shape | : | Round |
The ATCO #031 is a UL 181, Class 1 Air Duct manufactured with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket. Its air-tight inner core is formed by a double lamination of tough polyester encapsulating a steel wire helix, designed for low-to-medium operating pressures in HVAC systems. The #031 model features increased insulation for superior thermal performance.The double-layer core is wrapped with a thick blanket of R-8 fiberglass insulation and sheathed in a rugged, tear-resistant metallized polyester jacket. This construction ensures energy efficiency and durability, making it suitable for indoor use as a supply or return air duct in residential and commercial applications, connecting to mixing boxes, diffusers, or other terminal devices.
Atco Insulated Flexible Duct, Model: #031 Series, 6" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 6 In. Wc. (Positive), 1 In. Wc. (Negative) Pressure Rating, -20-140 °F (Continuous, Max Pressure), 5,000 FPM, 0.05 Perms Vapor Transmission, Reinforced Metallized Polyester Finish, Silver, Domestic Origin
- Features an air-tight inner core made of double-laminated polyester to prevent fiberglass erosion.
- Encapsulated steel wire helix prevents unraveling when cut for quicker installation.
- Smooth inner core design promotes low friction loss and efficient airflow up to 5,000 FPM.
- Thick R-8 fiberglass insulation provides excellent thermal performance.
- Durable, tear-resistant outer jacket made of tri-directionally reinforced metallized polyester.
- UL 181 listed as a Class 1 Air Duct for safety compliance.
- Designed for low-to-medium pressure HVAC systems (rated up to 6" WC positive, 1" WC negative).
- Suitable for supply and return air applications in residential and commercial buildings.
- Covered by a 5-year manufacturer warranty against defects in material and workmanship.
