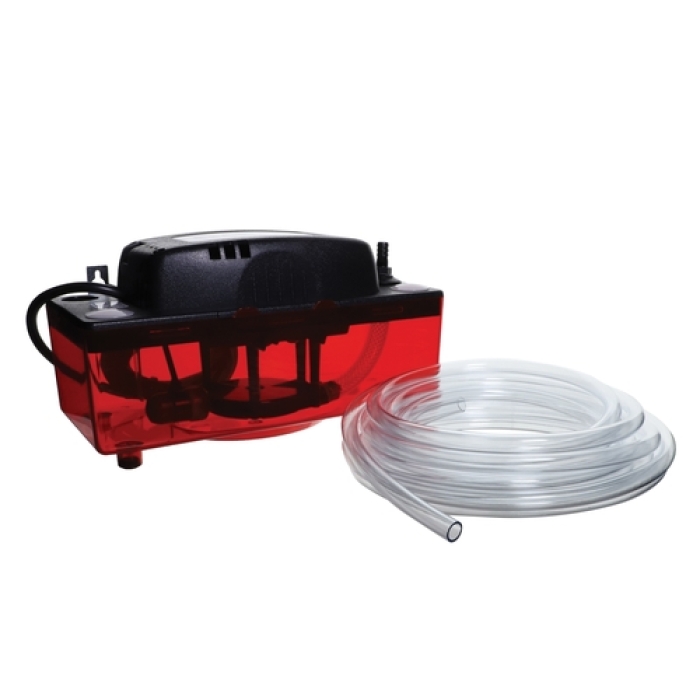

Asurity™ ULTRACP-22T-230 Condensate Pump, 230 V, 132 gph, 1/2 gal Tank, 3/8 in Discharge, 4-Inlet, 1 A, 1/30 hp Motor
Asurity™ ULTRACP-22T-230 Condensate Pump, 230 V, 132 gph, 1/2 gal Tank, 3/8 in Discharge, 4-Inlet, 1 A, 1/30 hp Motor
Manufacturer: DiversiTech Corporation
Brand: Asurity™
Part #: 391618
MPN: ULTRACP-22T-230
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Amperage Rating | : | 1 A |
| Color | : | Red/Translucent |
| Discharge Connection Size | : | 3/8 in |
| Flow Rate | : | 132 gph |
| Motor HP | : | 1/30 hp |
| Number of Inlets | : | 4 |
| Package Quantity | : | 6 Pack |
| Packaged Depth | : | 12.25 in |
| Packaged Height | : | 9 in |
| Packaged Width | : | 7.5 in |
| Shipping Weight | : | 6.12 lb |
| Tank Capacity | : | 0.5 gal |
| Voltage Rating | : | 230 V |
The Asurity® ULTRACP-22T-230 Condensate Pump is a 230 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature. 20 ft of 3/8 in discharge tubing is included.
Asurity™ Condensate Pump, 230 V, 132 gph Flow Rate, 0.5 gal Tank, 3/8 in Discharge, 4 Inlets, 1 A, 1/30 hp Motor HP, Red/Translucent
- Translucent Tank for Easy & Fast Inspection
- 22 ft maximum lift height
- LED indicators confirm pump status
- Built-in safety overflow switch
- Reversible deck for more installation options
- Removable Check Valve for Easy Cleaning
- Suitable for condensate up to 160 deg F
- Vibration dampening feet and motor mounts minimize sound
- 4 inlet holes
- 20 ft of tubing included for easy installation
