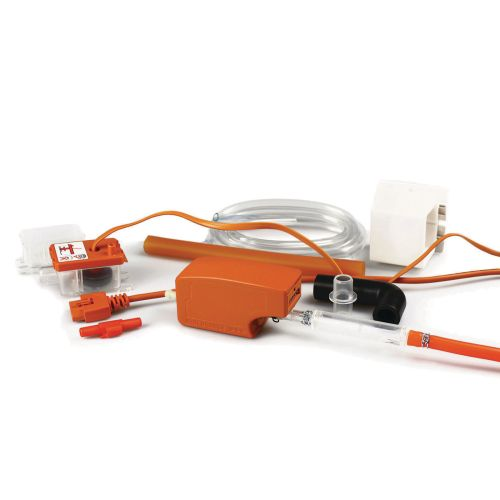

Aspen Manufacturing ASP-MO-UNI Mini Orange Condensate Pump Kit, 100-250 V, 33' Maximum Head, 174-192 GPM (0' Head), 49,500 BTU/hr, Barb Connection, 1/4" Connection Size, Remote Mount
Aspen Manufacturing ASP-MO-UNI Mini Orange Condensate Pump Kit, 100-250 V, 33' Maximum Head, 174-192 GPM (0' Head), 49,500 BTU/hr, Barb Connection, 1/4" Connection Size, Remote Mount
| Amperage Rating | : | 0.17 A |
| Flow Rate | : | 174-192 GPM (0' Head) gph |
| Maximum Head | : | 33 ft |
| Voltage Rating | : | 100-250 V |
Orange pumps are designed with a separate pump and reservoir. The 2 elements connect together with a length of 1/4" id vinyl tube and a communication cable, which are both usually around 6 ft. long. This may be extended if required.Self Priming and Pump installs remotely above ceiling or inside lineset cover. Pan mount and inline style reservoir included and Modular terminals for fast connection. Gravity Inlet. Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194). 3A N/C dry contacts rated @ 5A inductive @ 230V AC. Pump mounts outside evaporator, hidden in the horizontal lineset cover. Reservoir mounts in evaporator, below drain pan. Designed for installation above a false ceiling where possible, or in casing of minisplit evaporator unit where space permits.
Aspen Manufacturing Mini Orange Condensate Pump Kit, 100-250 V, 33' Maximum Head, 174-192 GPM (0' Head), 49,500 BTU/hr, Barb Connection, 1/4" Connection Size, Remote Mount, 5' Suction Lift, 104 °F (Maximum), 5/8" Inlet Size, 26 dBA, Potted Enclosure, 16 W, 0.17 A, 3 A (NC, 230 VAC), 5 A (Inductive, 230 VAC) Contact Rating, 4-1/4" L x 2" H x 1-1/2" W Dimensions, 6' Cord Size, Orange
- Designed for flexible installation above false ceilings, inside lineset covers, or within mini-split evaporator units.
- Kit includes both inline and pan-mount reservoir options for versatility.
- Self-priming pump simplifies setup and ensures reliable condensate removal.
- Operates quietly at a sound level of 26 dBA.
- Features universal voltage compatibility from 100V to 250V.
- Fully potted electronics provide enhanced resistance to moisture, vibration, and shock.
- Equipped with a 3A normally closed safety switch rated at 5A inductive @ 230V AC.
- Suitable for mini-split and ductless air conditioning systems up to 49,500 BTU/hr.
- Provides a maximum head lift of 33 feet and a suction lift of 5 feet.
