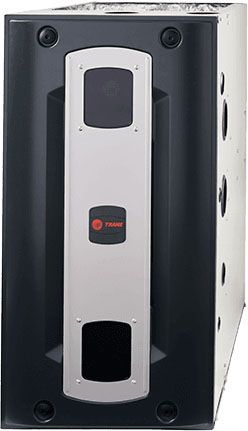

American Standard S Series S9V2B080D4VSAD 4T 97 AFUE Condensing Two Stage Gas Furnace
American Standard S Series S9V2B080D4VSAD 4T 97 AFUE Condensing Two Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 391140
MPN: S9V2B080D4VSAD
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 97 % |
| Configuration | : | Downflow |
| Energy Star Compliant | : | No |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Input BTU Rating | : | 80,000 Btu/hr |
| Model Number | : | S9V2 |
| Model | : | S9V2 |
| Motor Type | : | ECM |
| Number of Stages | : | Two |
| Phase | : | 1 ph |
| Series | : | S Series |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
American Standard S Series - S9V2B080D4VSAD, 4T, 97% AFUE, 80,000 BTU, 120V, ECM Variable Speed Fan Motor, Downflow Condensing Two Stage Gas Furnace
- Efficient airflow design reduces electrical energy use
- 34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coils
- Improved airflow efficiency,Single piece belly band/ motor arm assembly
- Rain shield over IFC keeps condensate off the control
- Three–Way Multi-Poise
- At least 400 CFM/ton at 0.5 in. H20 external static pressure
