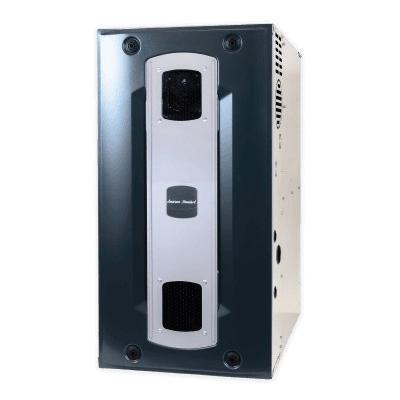

American Standard® Gold Series Gold S9V2 S9V2B060U4VSBB Gas Furnace, 120 V, 3/4 hp, 96 % AFUE, Upflow / Horizontal
American Standard® Gold Series Gold S9V2 S9V2B060U4VSBB Gas Furnace, 120 V, 3/4 hp, 96 % AFUE, Upflow / Horizontal
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385468
MPN: S9V2B060U4VSBB
Customer Part #:
Min. Order Qty: 1
Login for Availability
| AFUE Rating | : | 96 % |
| Additional Information | : | 409 Stainless Steel Heat Exchanger, Direct Drive Blower, Variable Speed Combustion Fan, Silicon Nitride Ignition Element |
| Amperage Rating | : | 12.93 A |
| Blower Size | : | 11 in Dia x 8 in W in |
| Cabinet Dimensions | : | 34 in H x 17-1/2 in W x 28-3/4 in D in |
| Configuration | : | Upflow, Horizontal |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural/LP Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 60,000 Btu/hr |
| Model Number | : | S9V2 |
| Model | : | Gold S9V2 |
| Motor Type | : | ECM |
| Number of Stages | : | Two |
| Output BTU Rating | : | 58,000 Btu/hr |
| Phase | : | 1 ph |
| Rotational Speed | : | 5000 rpm |
| Series | : | Gold Series |
| Tonnage | : | 4.0 Ton |
| Vent Size | : | 2 in |
| Vent, Ducted or Ductless | : | Vented |
| Voltage Rating | : | 115/120 V |
The Gold S9V2 Gas Furnace is a highly efficient and quiet furnace designed to provide reliable and consistent heating performance to keep your home comfortable.
American Standard® Gas Furnace, Series: Gold Series, Model: Gold S9V2, 60000 Btu/hr Input BTU Rating, 58200 Btu/hr Output BTU Rating, 120 V, 12.93 A, 3/4 hp HP Rating, 96 % AFUE, 1 ph, 60 Hz, 2 Stage, Horizontal, Upflow Configuration, LP Gas, Natural Gas, 11 in Dia x 8 in W Blower Size, 34 in H x 17-1/2 in W x 28-3/4 in D Cabinet Dimensions, ECM Motor, 5000 rpm Rotational Speed, Vented Vent, Ducted or Ductless, 2 in Vent Size, 15 A Fuse, 4 ton Tonnage, Hot Surface Ignition System, Additional Information: 409 Stainless Steel Heat Exchanger, Direct Drive Blower, Variable Speed Combustion Fan, Silicon Nitride Ignition Element
- Industry-changing cabinet is designed to accommodate virtually any home
- New design is certified to be airtight to less than 1%
- The Gold S9V2 furnace is rated at 96% gas efficiency (AFUE)
- The Vortica™ II blower is one of the most efficient in the industry, providing savings in both winter and summer
- Stainless steel primary and secondary heat exchangers, and new Vortica™ II blower combine to provide a consistent flow of warm and comfortable air with quiet operation
- Combine with the American Standard AccuClean™ Air Cleaner for a cleaner, healthier, and more comfortable home
