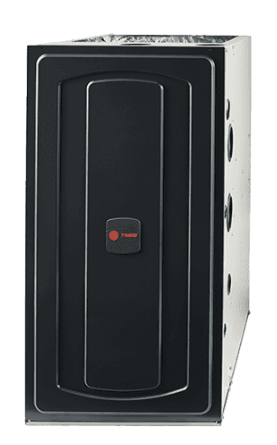

American Standard S Series S9B1B060D3PSAA 3T 92.1 AFUE Condensing Single Stage Gas Furnace
American Standard S Series S9B1B060D3PSAA 3T 92.1 AFUE Condensing Single Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385448
MPN: S9B1B060D3PSAA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 96 % |
| Additional Information | : | Condensing Type, Round Vent Type, Silicon Nitride Ignition System Element |
| Amperage Rating | : | 10.3 A |
| Blower Size | : | 11 in Dia x 8 in W in |
| CFM Rating | : | 1200 cfm |
| Cabinet Dimensions | : | 34 in H x 17-1/2 in W x 28 in D in |
| Configuration | : | Downflow |
| Energy Star Compliant | : | No |
| Finish | : | Baked-On Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/2 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 60,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | S9B1 |
| Motor Type | : | PSC |
| Number of Burners | : | 3 |
| Number of Speeds | : | 9 |
| Number of Stages | : | Single |
| Output BTU Rating | : | 57600 Btu/hr |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.5 in-WG |
| Rotational Speed | : | 1075 rpm |
| Series | : | S Series |
| Temperature Rise | : | 35 to 65 deg F |
| Tonnage | : | 3.0 Ton |
| Vent Size | : | 2 in |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
Designed with value in mind, the American Standard S9B1 gas furnace provides you with the comfort you want, the efficiency and durability you need and, of course, the American Standard commitment to quality you expect.
American Standard S Series - S9B1B060D3PSAA, 3T , 92.1% AFUE, 60,000 BTU, 120V, PSC Fan Motor, Downflow , Condensing Single Stage Gas Furnace
- Efficient airflow design reduces electrical energy use
- 34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coils
- Improved airflow efficiency,Single piece belly band/ motor arm assembly
- Rain shield over IFC keeps condensate off the control
- Three–Way Multi-Poise
- At least 400 CFM/ton at 0.5 in. H20 external static pressure
